  • Security Doors

      Security Doors
      Part Description Part Number QTY
      A Wide Span Wire Grid End Security Panel WSWGESP-(ND)(NH) 2
      B Wide Span Security Doors WSSD2X2-(NW)(NH)(OPTION) 2
      C Wide Span Security Rear Panel WSSRP(NW)(NH) 2

    • Components for Security Doors

      Reveal/Hide Components

       Wide Span Security Doors

      • Secure merchandise by adding Wide Span Security Doors to Wide Span system
      • 2" x 2" (51 mm x 51 mm) wire grid
      • Locking device customer supplied
      • Hardware pack includes: Pack # 7201-136 4-5/16-18 x 1½ HHMS 6-USS flat washer 5/16" ID, 3/4 OD 4-5/16 lock nut 2-Aviat lock nut ¼-20 2-PHSMS ¼-20 x ¾ Pack # 7201-162 1-Security hasp w/rotating eye, Zinc coated 2-Security barrel bolt 17-FST/PHPSMS 310 ¾ AB Pack # 7201-166 4-5/16-18 x 1½ HHMS 6-USS flat washer 5/16" ID, ¾ OD 4-5/16 lock nut 2- dart clip .020 spring steel
      • Standard finishes: Sahara or Blue Gray
      Part Number: WSSD2X2L-(NW)(NH)(NSP)
      • WS ....Wide Span
      • SD2X2 .... Security Doors - 2" x 2" (51 mm x 51 mm) Grid
      • L .... Locking Hasp
      • NW ....Nominal Width 38", 42", 48", 66", 72", 78", 90", 92", 96" (965 mm, 1067 mm, 1219 mm, 1676 mm, 1828 mm, 1981 mm, 2286 mm, 2337 mm, 2438mm)
      • NH .... Nominal Height 48", 72", 78", 84", 96", 108", 120" (1219 mm, 1829 mm, 1981 mm, 2134 mm, 2438 mm, 2743 mm, 3048 mm)
      • NSP .... NSP=No Security Panels Blank=with Security Panels
      WSSD2X2L-(NW)(NH)(NSP)-Wide Span Security Doors
      Security Doors include mounting hardware. Security Doors are mounted between two Regular-Duty beams (additional shelves cannot be installed behind Security Doors). Use Wide Span Hinge Door Kit (WSHDK) if shelves are needed behind the doors.

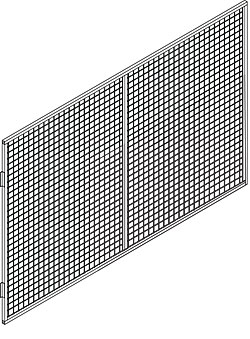

       Wide Span Security Rear Panel

      • Secure merchandise by adding Wide Span Security Doors
      • Standard finishes: Sahara or Blue Gray
      Part Number: WSSRP-(NW)(NH)
      • WS ....Wide Span
      • SRP .... Security Rear Panel
      • NW ....Nominal Width 48", 72", 84", 96" (1219 mm, 1828 mm, 2134 mm, 2438mm)
      • NH .... Nominal Height 42", 60", 66", 70", 72", 76", 84" (1067 mm, 1524 mm, 1676 mm, 1778 mm, 1829 mm, 1930 mm, 2134 mm)
      WSSRP-(NW)(NH)-Wide Span Security Rear Panel

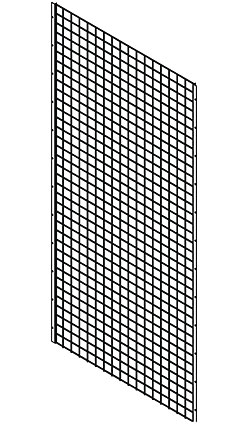

       Wide Span Wire Grid End Security Panel

      • End Security Panels prevent side access to merchandise
      • Hardware pack included
      • Standard finishes: Sahara or Blue Gray
      Part Number: WSWGESP-(ND)(NH)
      • WS.....Wide Span
      • WGESP..... Wire Grid End Security Panel
      • ND.....Nominal Depth 24", 30", 36", 42" (610 mm, 762 mm, 914 mm, 1067 mm)
      • NH..... Nominal Height 54", 72", 84", 96" (1372 mm, 1829 mm, 2134 mm, 2438 mm)
      WSWGESP-(ND)(NH)-Wide Span Wire Grid End Security Panel
