  • Galvanized Shelves for Walk-in Coolers

    Consolidate your buying process by sourcing your cantilever shelves from the shelf experts! Madix now offers galvanized shelving and uprights for walk-in coolers as standard product.

    Galvanized shelving is the go-to option for cooler applications because it provides the following benefits:

    • Vastly more economical than stainless steel or aluminum
    • Less maintenance required compared to paint or plastic coatings
    • Extremely durable – years of use with proper treatment and care
    • Lowest long-term cost of any coating type

    Madix shelves are available in 18" (457 mm) depth and feature a slatted shelf surface design for improved ventilation, ensuring optimum shelf life for your refrigerated merchandise.

    Galvanized Cooler Shelves Flyer
    Please refer to cooler manufacturers’ documentation/warranty before modifying refrigeration unit.

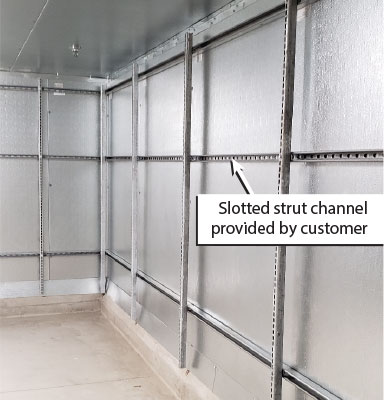

  • Strut channel not supplied by Madix

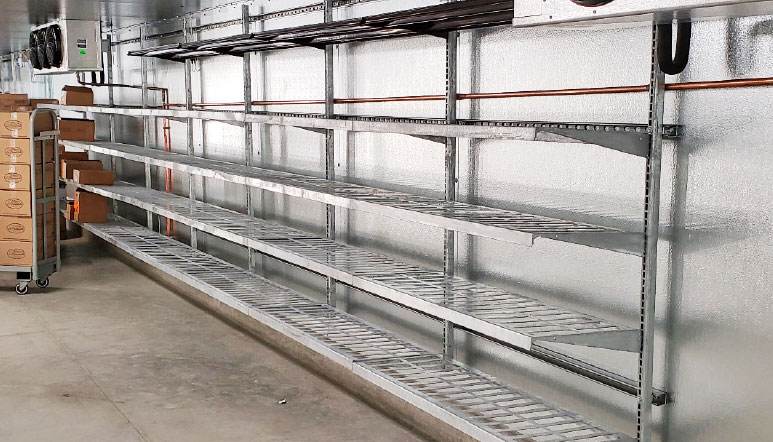

    Galvanized Cooler Shelves

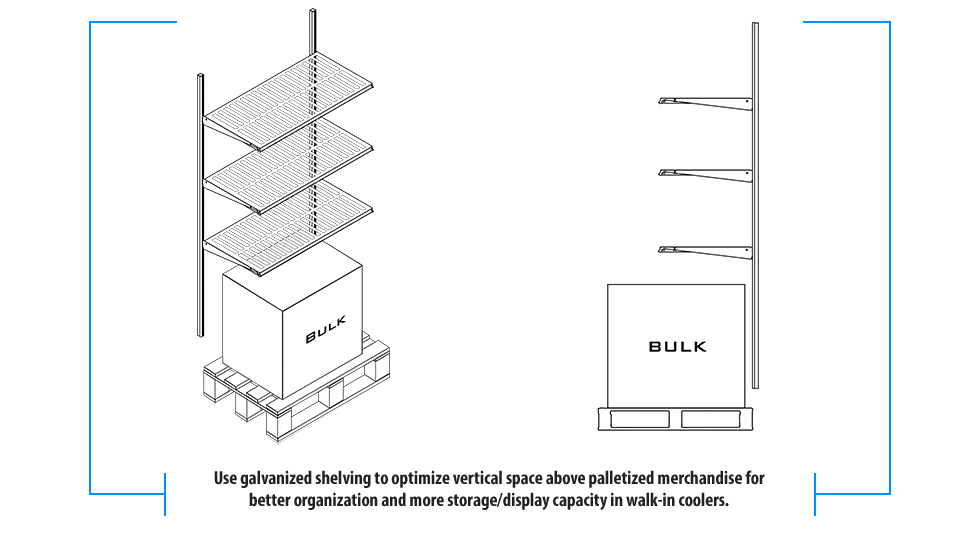

    • Galvanized Cooler Shelves showing how bulk can fit underneath

    Looking for Galvanized Cooler Shelf design models?
    Download for Revit and CAD here

  • Components for Galvanized Shelves for Walk-in Coolers

    Reveal/Hide Components

     Galvanized Metal Shelf

    • Shelves can be Galvanized or Powder Coated for packaged products in cooler (not NSF approved)
    • Unique, open vented shelf, not a solid top steel shelf
    • Nominal depth of 18" (457 mm) only
    • For use with Galvanized Half Upright [(OPT)HU-(NH)]
    • Load capacity is 150 lbs in all sizes (based on evenly distributed, static load)
    Part Number: GMS-(NW)18
    • GMS.....Galvanized Metal Shelf
    • NW.....Nominal Width 3' or 4' (914 mm or 1219 mm)
    • 18.....Nominal Depth 18" (457 mm)
    GMS-(NW)18-Galvanized Metal Shelf
    Fixture must be square, plumb, and level.

     Galvanized Half Upright

    • For use with Galvanized Metal Shelf [GMS-(NW)18-PC] for packaged products in cooler (not NSF approved)
    • Maximum section load capacity is 600 lbs and shelf-load capacity is 150 lbs in all sizes (based on an evenly distributed, static load)
    Part Number: (OPT)HU-(NH)
    • OPT.....G=Galvanized, Blank=Not Galvanized
    • HU..... Half Upright
    • NH.....Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
    (OPT)HU-(NH)-Galvanized Half Upright
    Fixture must be square, plumb, and level.
    Each anchoring location must provide a minimum of 450 lbs of pull-out resistance.

     Galvanized Half Upright Support Bracket

    • Used to hold the Galvanized Half Upright [(OPT)HU-(NH)] to the wall of the cooler (not NSF approved)
    • Two required for use, at top and bottom of upright
    Part Number: GHUTSB06
    • GHUTSB....Galvanized Half Upright to Support Bracket
    • 06.....Nominal Height 6" (152 mm)
    GHUTSB06-Galvanized Half Upright Support Bracket
