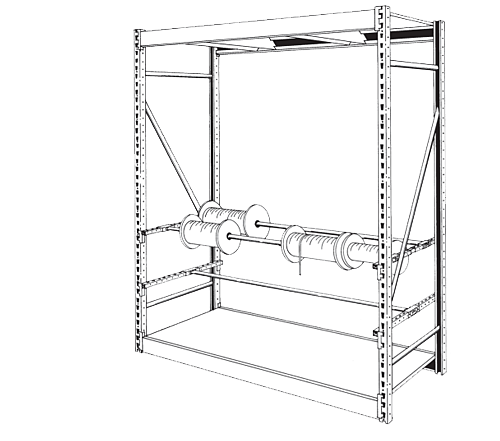

Wide Span Roll Goods Display

Wide Span Roll Goods Display

Contact Us Today

  • Wide Span Roll Goods Display

    • Rigid, super strong display for roll or spool goods
    • Several spools may be used on single Wide Span Support Arm

  • Components for Wide Span Roll Goods Display

    Reveal/Hide Components

     Wide Span Center Support Arm

    • Telescoping feature allows crossbar to slip into upright slots on both sides of frame
    • Included dart clips lock crossbar in place
    • Provides rigid base for Hypermaxi Roll Goods Tube Holder
    • Standard finishes: Sahara or Blue Gray
    Part Number: WSCSA-(ND)
    • WSCSA..... Wide Span Center Support Arm
    • ND.....Nominal Depth 18" to 48" in 6" increments (457 mm to 1219 mm in 152 mm increments)
    WSCSA-(ND)-Wide Span Center Support Arm

     Wide Span Roll Goods Tube

    • 1" OD galvanized tubing for use with Wide Span Roll Goods Display
    • Longer tube lengths not recommended for heavy spools, rolls of chain, or large rolls of flooring
    • Load capacity: NL 36" or 48"=200 lbs; NL 60"=150; and NL 72" to 93"=100 lbs
    Part Number: WSRGT-(NW)
    • WSRGT..... Wide Span Roll Goods Tube
    • NW.....Nominal Width 36" to 96" in 12" increments (914 mm to 2438 mm in 304 mm increments)
    WSRGT-(NW)-Wide Span Roll Goods Tube

     Wide Span Roll Goods Tube Holder

    • For mass display of roll goods, tube holder accommodates all diameter roll goods tubes
    • Holder fits over and bolts to center support arms
    • Standard finishes: Sahara or Blue Gray
    Part Number: HMRGTH
    • HMRGTH.....Roll Goods Tube Holder
    HMRGTH-Wide Span Roll Goods Tube Holder
