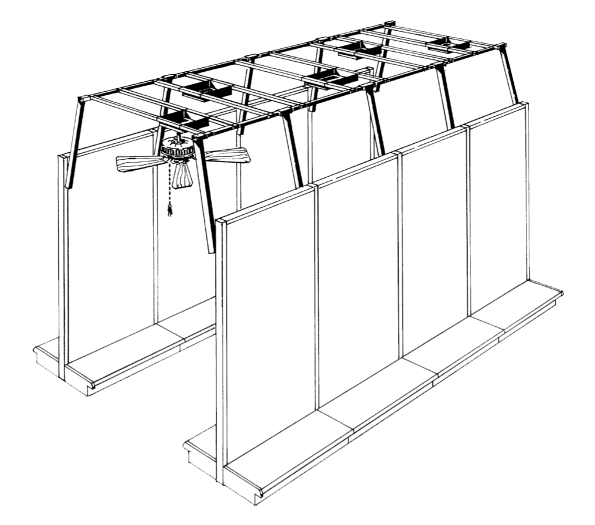

Ceiling Fan Cloud

• Simple and effective display for ceiling fans or lighting fixtures
• System is based on 10' (3048 mm) - 6' (1829 mm) height above floor when used on 96" (2438 mm) high uprights, but may be less depending on the drop length of fans
• Extension uprights may be added to existing fixtures to gain additional height if necessary
• Adjustable beams accommodate varying aisle widths

Ceiling Fan Cloud			One Fan per 4' Section*		Two Fans per 4' Section*
Part Description		Part Number	Starter	Add	Starter	Add
A	Adjustable Beam	CFD-AB	2	2	2	2
B	Fan Box	CFD-FB	1	1	2	2
C	Horizontal Brace	CFD-HB-48	2	2	2	2
D	Vertical Display Bracket, right-hand	CFDB-RH	2	none	2	none
D	Vertical Display Bracket, left-hand	CFDB-LH	2	none	2	none
D	Vertical Display Bracket, center	CFDB-C	none	2	none	2

*Based on blade clearance for powered fans, static display with overlapping blades allows more fans to be shown
