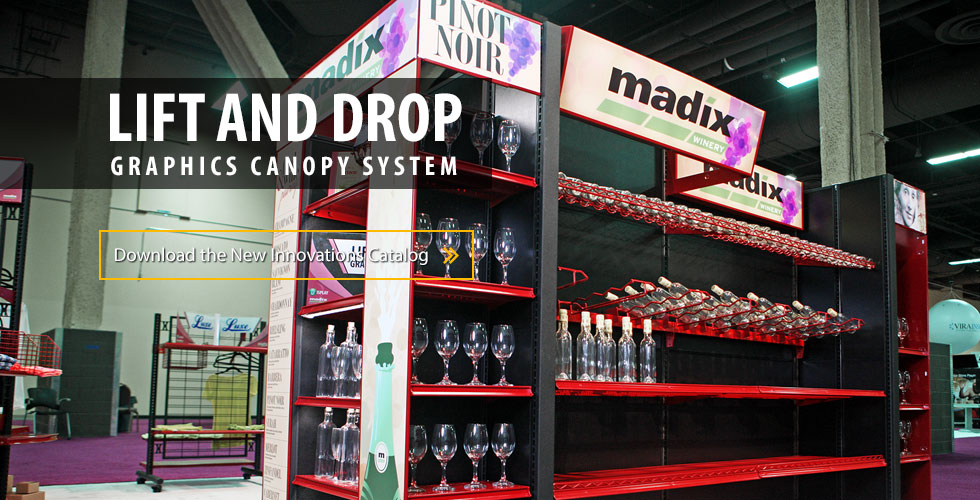

    Eliminate the hassle of changing out graphics with Lift and Drop, a versatile sign holder that utilizes offset channels to permit “pop in/pop out” signage exchanges. Lift and Drop can be mounted at either a 90° or 15° angle when installed with an adjustable bracket, or it can also be fixed directly to the upright, if so desired.

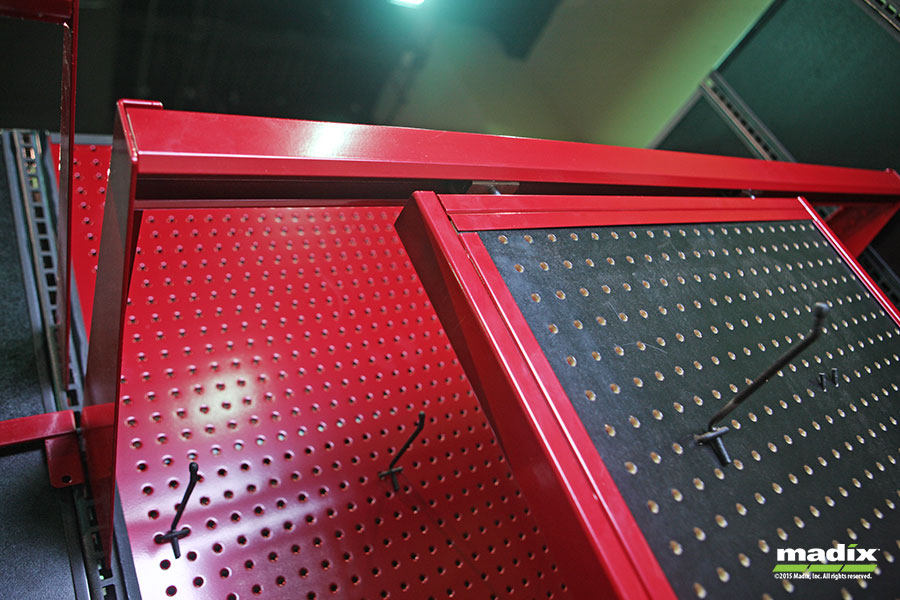

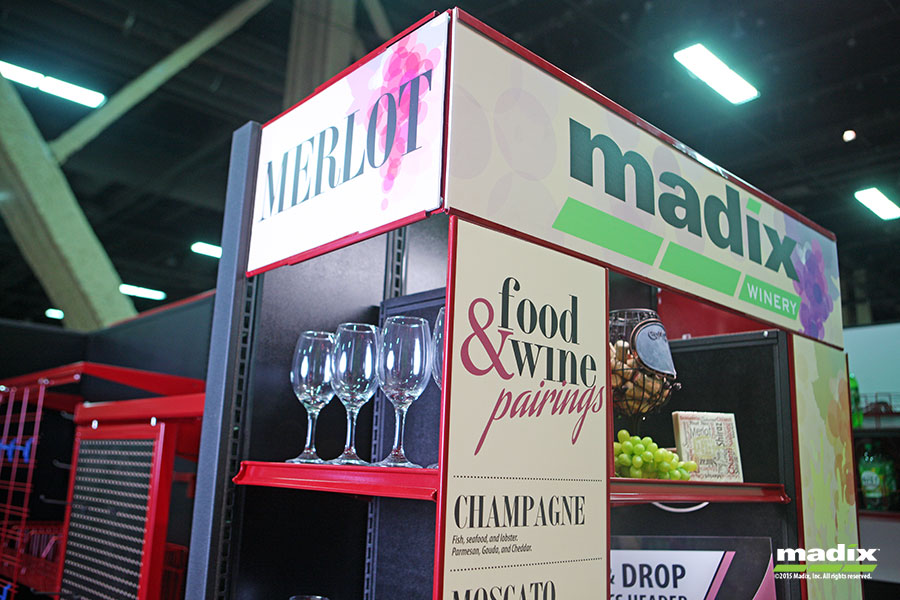

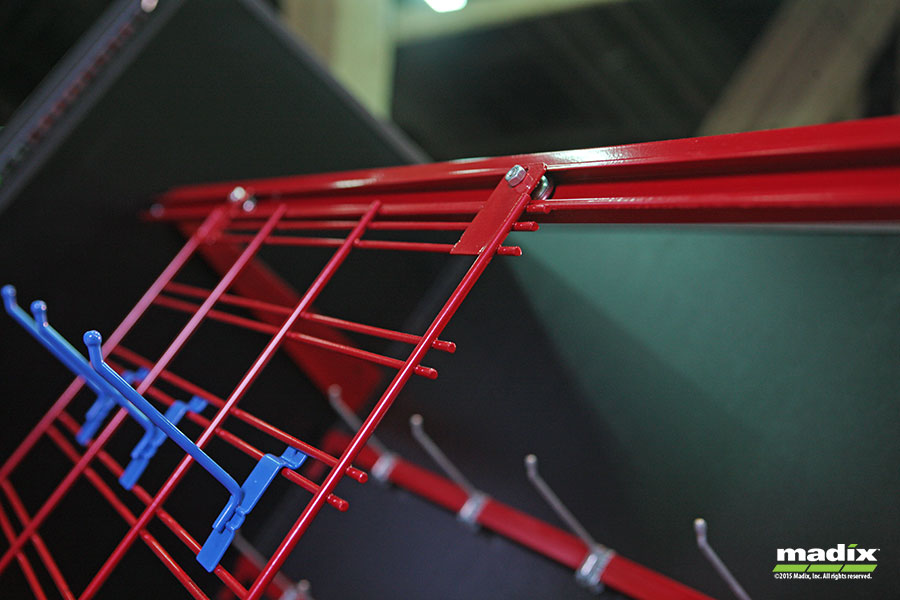

      Gallery

    • Video

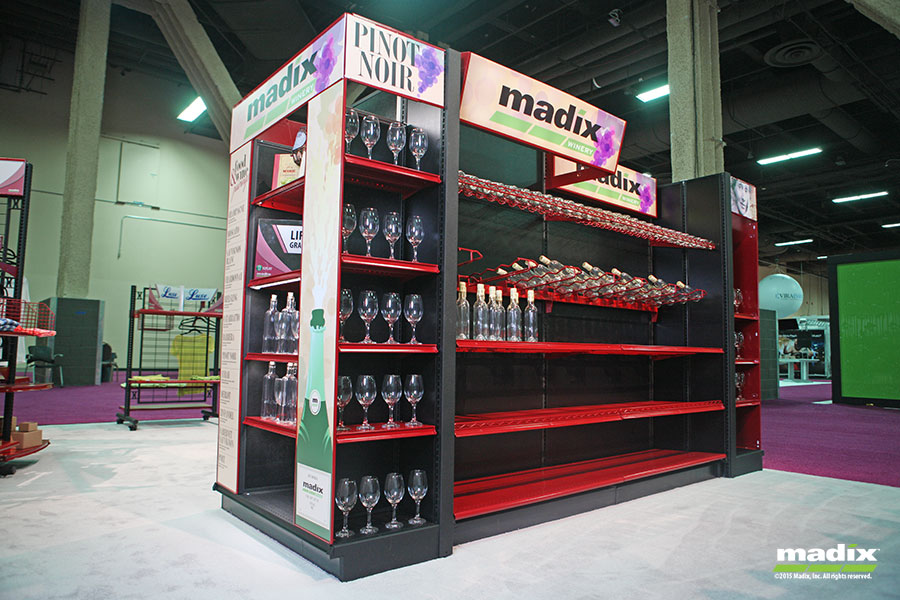

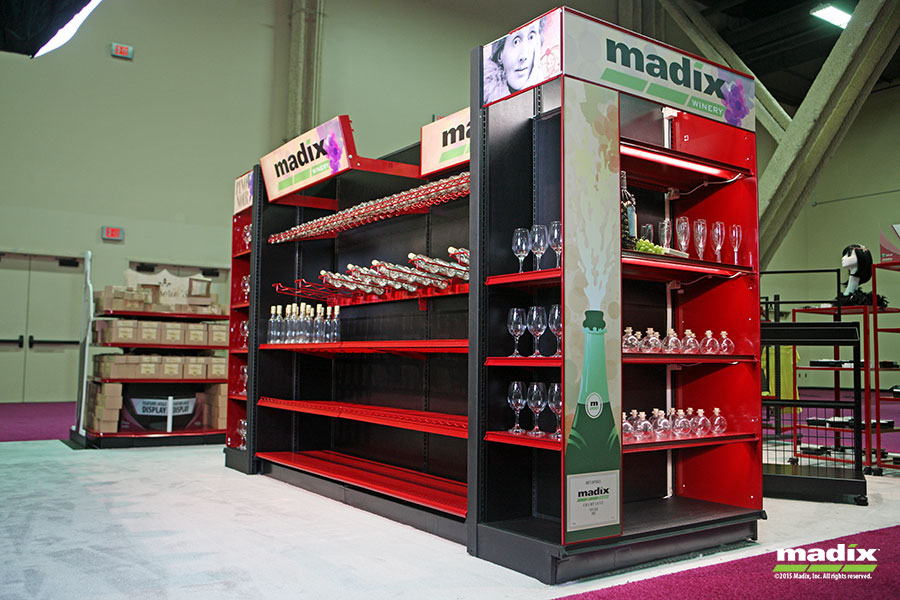

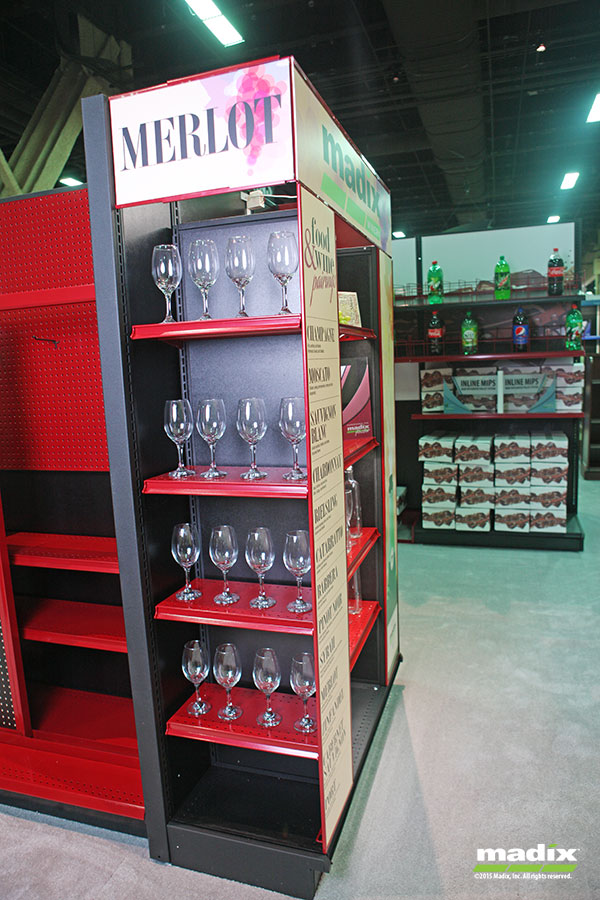

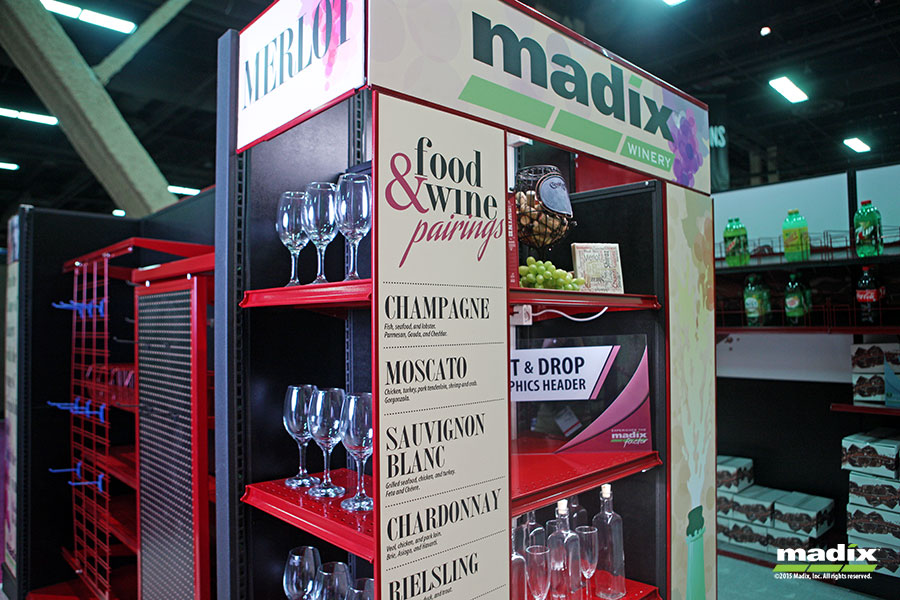

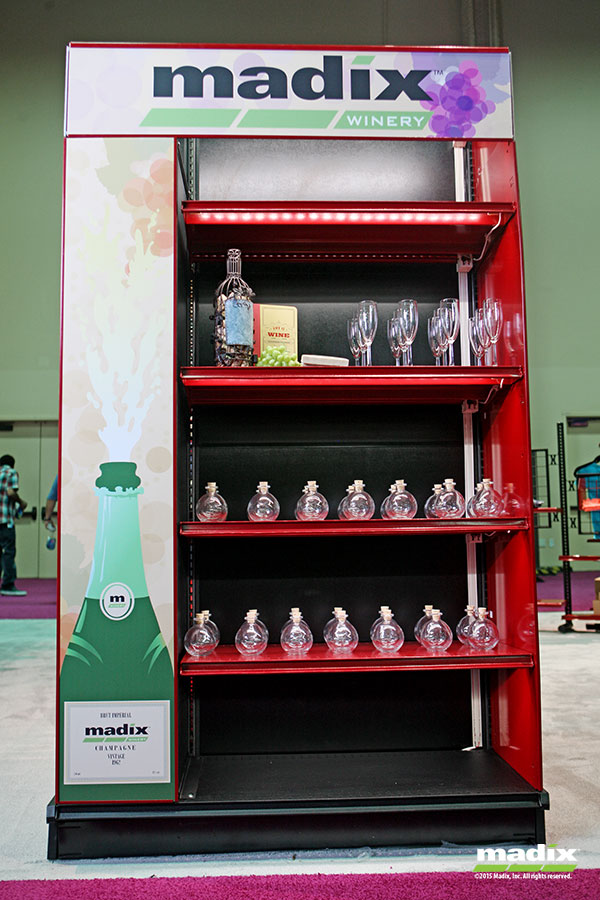

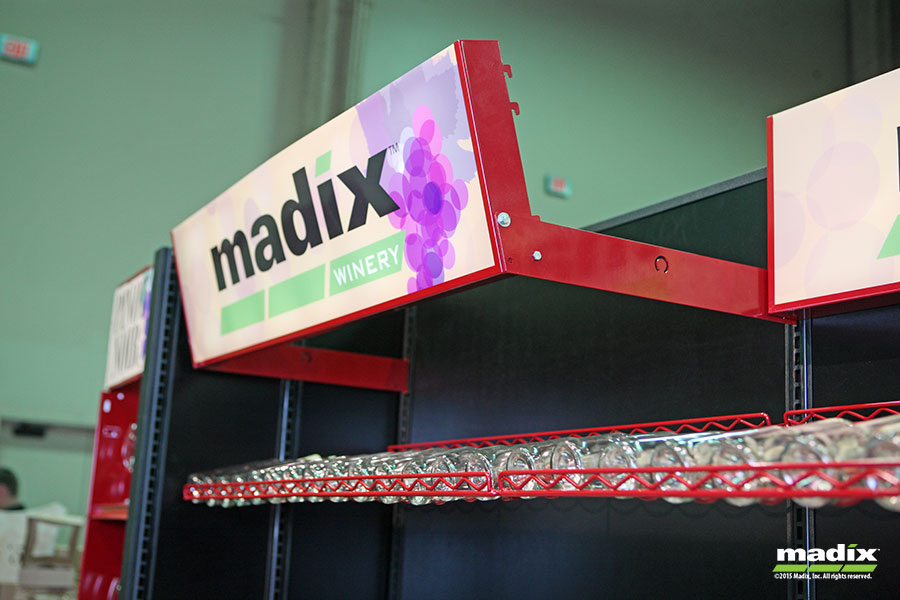

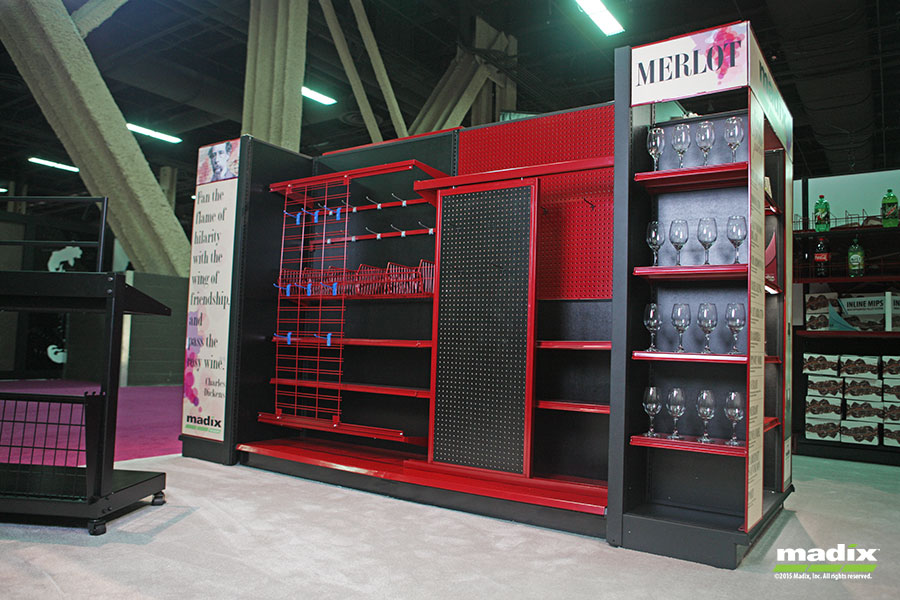

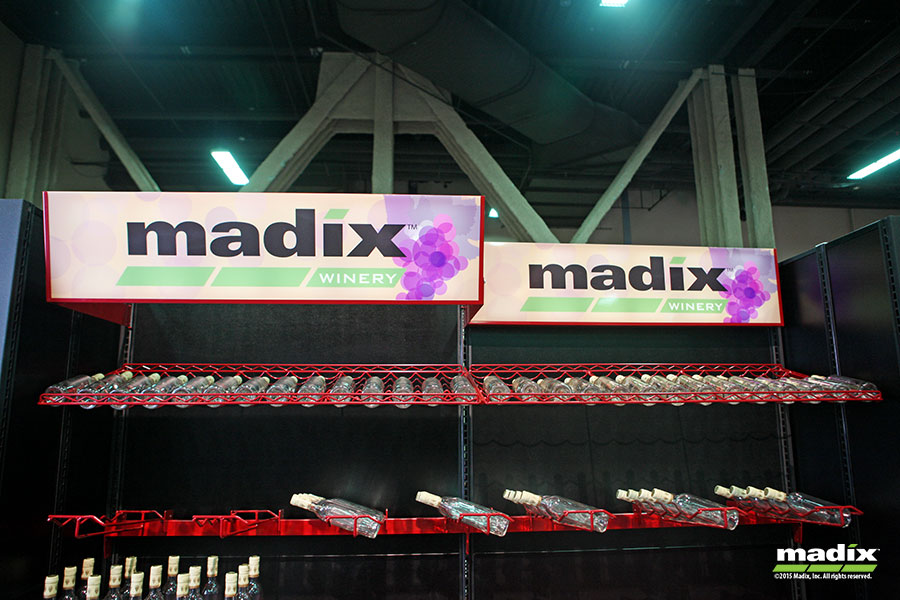

      Lift and Drop Graphics Header was a popular featured product at GlobalShop 2015.

      Paul D'Alessandro highlights the advantages of Madix's new Lift and Drop Graphics Header.

    • Lift and Drop Graphics Header Variation 1

    • Lift and Drop Graphics Header Variation 1
    • Basic Gondola Parts (as shown)
      Part Number Part Description Quantity Link
      1 BU-90 Basic Upright 3 Component Page
      2 VC-90 Metal Upright End Cover 2 Component Page
      3 UCC Plastic Upright Cap, Clear 3 Component Page
      4 SUS-1810 Standard Upper Shelf Component Page
      5 SUS-318 Standard Upper Shelf Component Page
      6 SBSH-419 Standard Base Shelf with Extra Hat 1 Component Page
      7 KP-4 Kickplate 1 Component Page
      8 BEC-19 Base End Covers 1 Pair Component Page
      9 BSSIL-18 Base Shoe Straight In Locking 1 Component Page
      10 BSSIL-19 Base Shoe Straight In Locking 2 Component Page
      11 BH-1242 Standard Maxi Line Back 2 Component Page
      12 BH-342 Standard Maxi Line Back 2 Component Page
      13 BXH-1248 Extended Back Panel 2 Component Page
      14 BXH-348 Extended Back Panel 2 Component Page
      15 SC-1 Center Spanner, Galvanized 2 Component Page
      16 SC-3 Center Spanner, Galvanized 2 Component Page
      17 SL-1 Lower Spanner 1 Component Page
      18 SL-3 Lower Spanner 1 Component Page
      19 SS-1 Splicer Spanner 1 Component Page
      20 SS-3 Splicer Spanner 1 Component Page
      21 STL-1 Top Spanner 1 Component Page
      22 STL-3 Top Spanner 1 Component Page

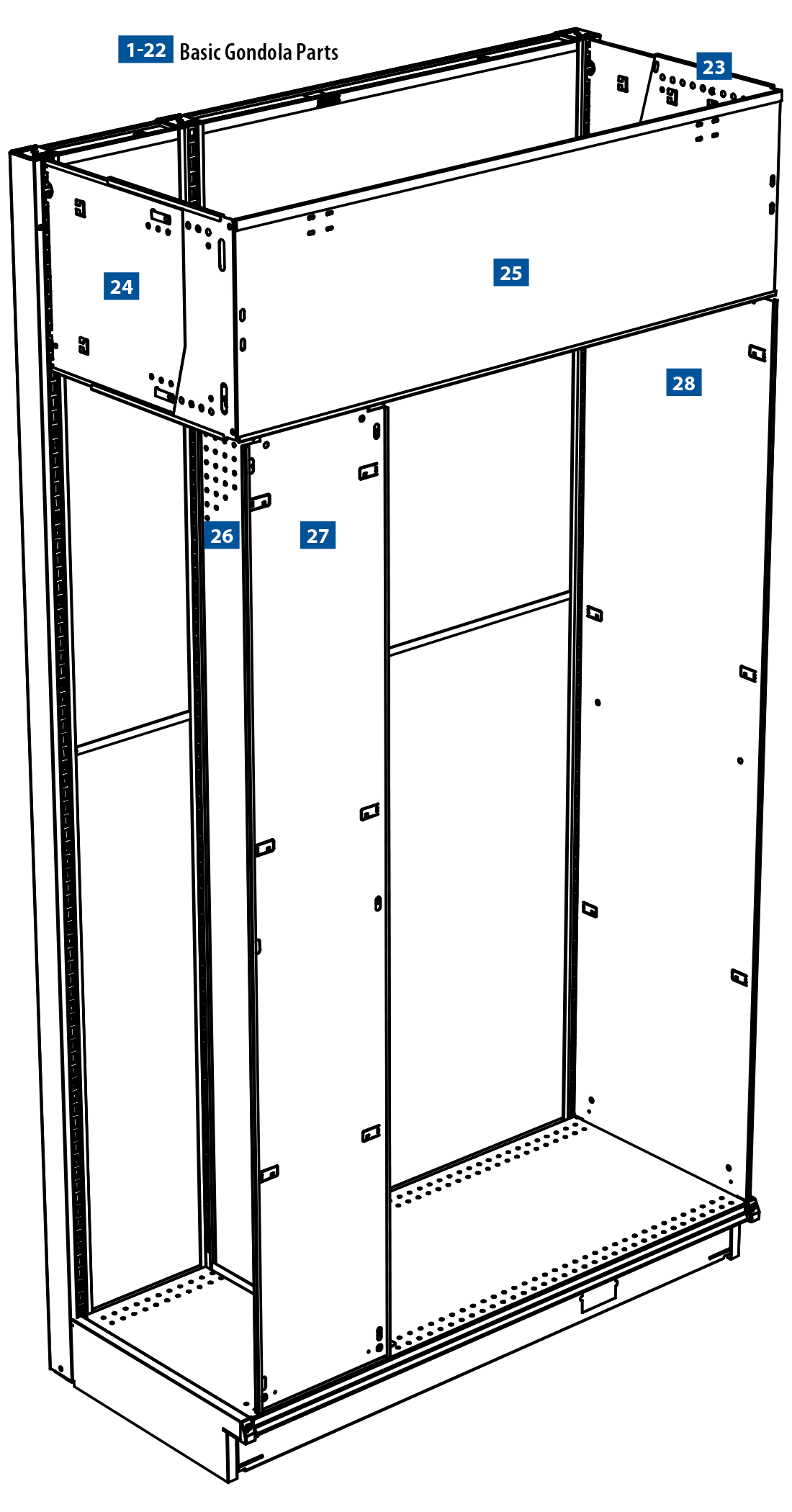

      Lift and Drop Canopy Variation 1 (as shown)
      Part Number Part Description Quantity Link
      23 LDGHBA140014-24R-F Bracket Assembly, Lift & Drop Graphics Header, Flat 1 Component Page
      24 LDGHBA140014-24L-F Bracket Assembly, Lift & Drop Graphics Header, Flat 1 Component Page
      25 LDGHSC481400 Sign Channel, Lift & Drop Graphics Header 1 Component Page
      26 LDGHEF90140018 Lift & Drop Header End Frame 1 Component Page
      27 LDGHSEP90140012 Lift & Drop Signage Panel Front 1 Component Page
      28 LDGHSEPS90140019 Lift & Drop Signage End Panel Side 1 Component Page

      Order ★ as required.

    • See more configurations in the Electrical, Lighting, and Signage catalog

    • Components for Lift and Drop Graphics Header

      Reveal/Hide Components
      Lift and Drop Graphics Header

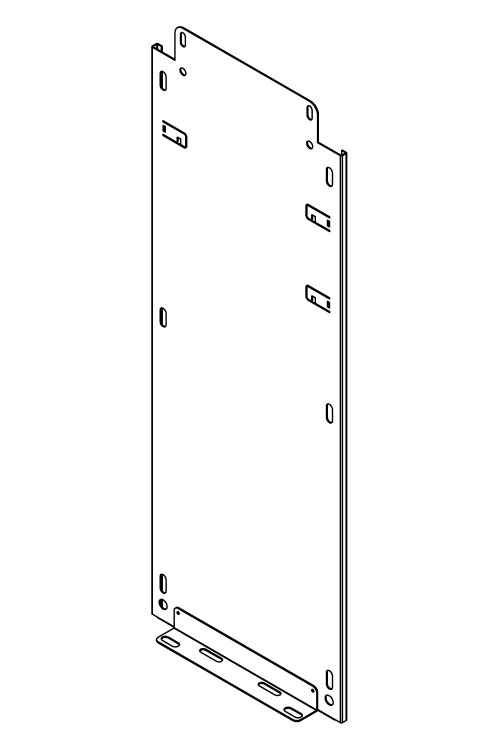

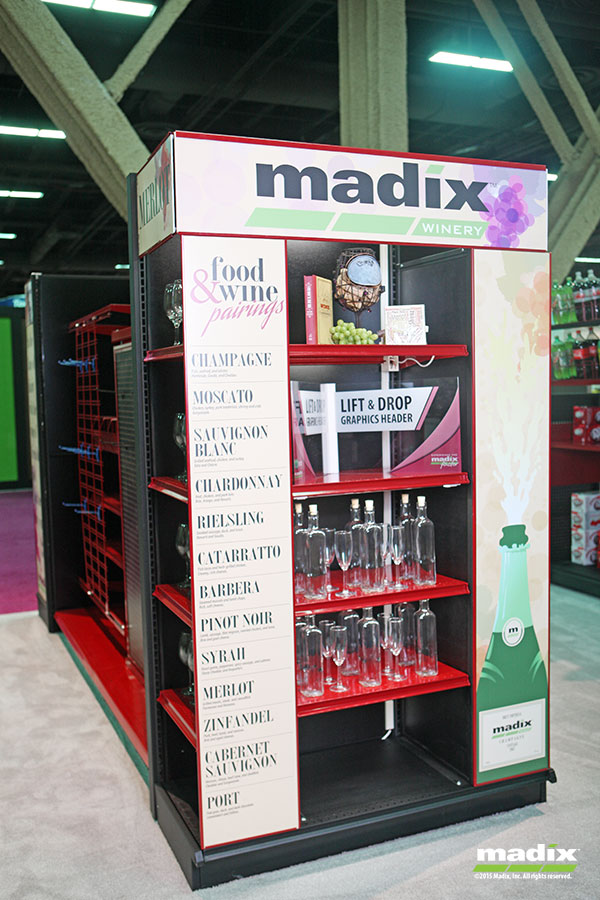

       Lift and Drop Graphics Header Signage End Panel

      • Works with the Lift and Drop Graphics Header End Frame to create a two-way or three-way end cap
      • Graphics face the front of the end cap
      • Easily change out customer-supplied graphics
      • Sign can be no thicker than 1/8" (3 mm)
      Part Number: LDGHSEP(NH)(CH)(ND)
      • LDGH..... Lift & Drop Graphics Header
      • SEP..... Signage End Panel
      • NH/CH.....Nominal Height/Canopy Height 841025: NH=84"/CH=101/4" (NH=2134 mm/CH=260 mm) 901400: NH=90"/CH=14" (NH=2286 mm/CH=3556 mm)
      • ND.....Nominal Depth 12" or 19" (305 mm or 483 mm)
      LDGHSEP(NH)(CH)(ND)-Lift and Drop Graphics Header Signage End Panel

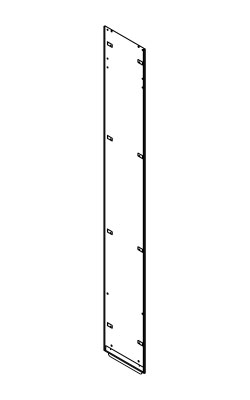

       Lift and Drop Graphics Holder Wall Signage End Panel

      • Easy-to-install signs can be placed in the end panel from the front by bowing in, or dropped in from the top of the panel
      • Easy-bend tab bracket, eliminates the need to order left hand and right hand panel
      • Graphic sizes: - Sign height=nominal height-base height (5" or 7", 127 mm or 178 mm) - Sign depth=nominal depth-1/8" (3 mm)
      • Sign can be no thicker than .260" (6 mm)
      • The Lift and Drop Graphics Header Sign Channel [LDGHSC(NW)(NH] can be mounted to the top front of the panels
      Part Number: LDGHWSEP(NH)(ND)-(BH)
      • LDGH..... Lift and Drop Graphics
      • WSEP..... Wall Signage End Panel
      • NH..... Nominal Height 60", 72", 84", or 90" (1524 mm, 1829 mm, 2134 mm, or 2286 mm)
      • ND..... 12" or 18" (305 mm or 457 mm)
      • BH..... Base Height Blank=5" (127 mm) 7=7" (178 mm)
      LDGHWSEP(NH)(ND)-(BH)-Lift and Drop Graphics Holder Wall Signage End Panel

       Straight in Bracket

      • Can be used with LDGHSC(NW)(NH)
      • Order left hand and right hand as facing section
      • Hardware pack included
      • Order in pairs

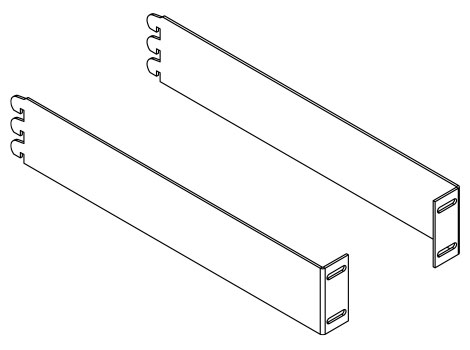

      Part Number: SBOEPP-(ND)
      • SBOEPP......Straight in Bracket
      • ND......Nominal Depth 04" to 24" in 2" increments (102 mm to 610 mm in 51 mm increments)
      SBOEPP-(ND)-Straight in Bracket

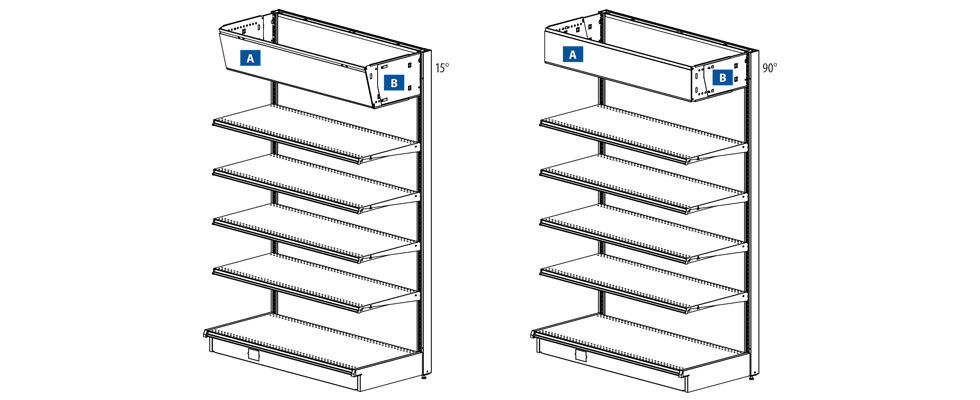

      A Lift and Drop Graphics Header Sign Channel

      • Can be mounted using adjustable brackets, Lift and Drop Graphics Header Bracket Assembly [LDGHBA(NH)(14-24)(HAND)]
      • Attaches directly to upright or mounts using Fixed Brackets [SBOEPP-(ND)]
      • Graphic Panel can be installed flat at 90° or tilted down at 15° when using adjustable brackets
      • Customer-supplied graphics can wrap around on adjustable returns
      • Graphic sizes: NW x NH
      • Sign can be no thicker than 1/8" (3 mm)

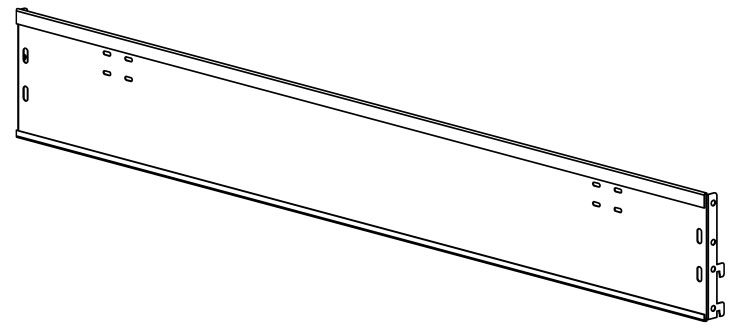

      Part Number: LDGHSC(NW)(NH)
      • LDGHSC ......Lift and Drop Graphics Header Sign Channel
      • NW......Nominal Width 24", 36", or 48" (610 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 0500=5" (127 mm) 0600=6" (152 mm) 0800=8" (203 mm) 1025=101/4" (260 mm) 1600=16" (406 mm)
      LDGHSC(NW)(NH)-Lift and Drop Graphics Header Sign Channel

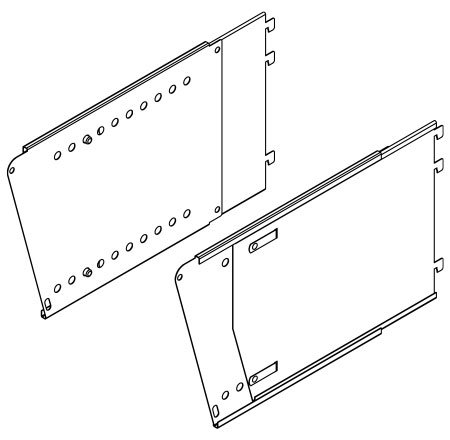

      B Lift and Drop Graphics Header Bracket Assembly

      • Graphic Panel can be installed flat at 90° or tilted down at 15° when using adjustable brackets
      • Customer-supplied graphics can wrap around on adjustable returns
      • Order left hand and right hand as facing section
      • Center uprights can use either left-hand or right-hand bracket
      • Graphic sizes: NW x NH
      • Sign can be no thicker than 1/8" (3 mm)
      Part Number: LDGHBA(NH)(14-24)(HAND)
      • LDGHBA......Lift and Drop Graphics Header Bracket Assembly
      • NH......Nominal Height 0500=5" (127 mm) 0600=6" (152 mm) 0800=8" (203 mm) 1025=101/4" (260 mm) 1600=16" (406 mm)
      • 14-24......Nominal Depth Range 14" to 24" (356 mm to 610 mm)
      • Hand......R=Right Hand L=Left Hand
      LDGHBA(NH)(14-24)(HAND)-Lift and Drop Graphics Header Bracket Assembly
