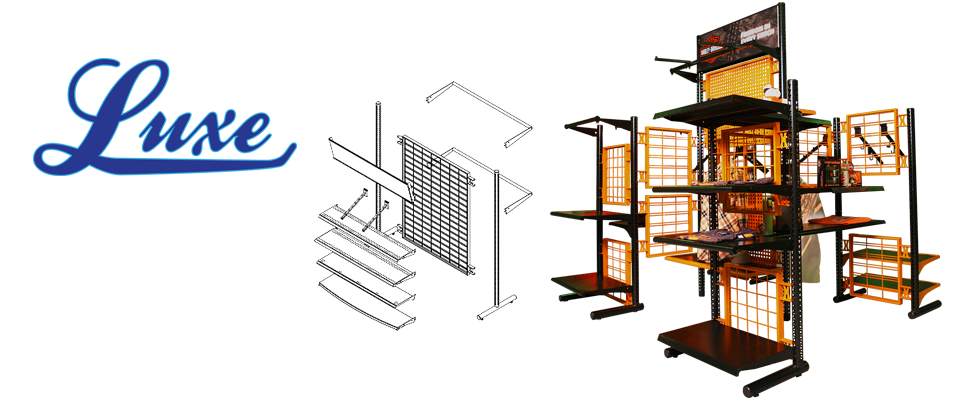

• Luxe

  The Alternative to Custom Fixtures

  Create custom-looking displays at a more effective cost. The Luxe system features patented round uprights, providing the flexibility to build the unit in four different directions. Compatible with thousands of standard parts, Luxe offers virtually endless configuration possibilities.

  Luxe Queuing

  Put method back into the madness of checkout lines! Madix’s Luxe Queuing Solution helps retailers boost sales by reducing wait time in the checkout area, improving customer satisfaction and strengthening brand loyalty. Our Luxe Queuing Solution feeds one line of customers to multiple registers in an orderly and efficient manner, minimizing customer frustration. And with the variety of configurations available, retailers have the flexibility to promote more impulse merchandise and services at a consistent exposure level. Our Luxe Queuing Solution offers almost all standard Madix shelves and accessories.

  • Utilizes thousands of Maxi Line accessories, including shelves, hang rods, and waterfall displays
  • Equally attractive to custom fixtures
  • Versatile pieces can be combined to form several different displays, including tables, freestanding units, and wall anchored gondolas.
  • Add-on and replacement parts readily available

  Downloads

  • Luxe Catalog »



• Video

  Gallery



• Download the new Luxe catalog for components and accessories.

  Download Luxe Catalog »

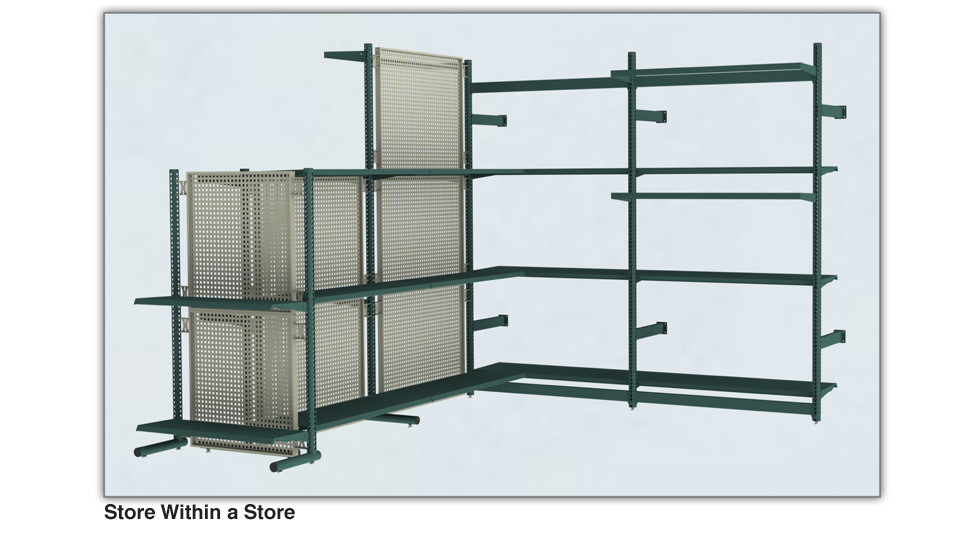

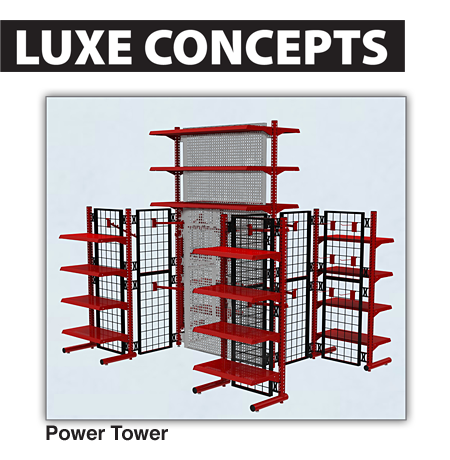

Luxe Configurations and Concepts

Revit/CAD Models

Revit Model Guide »

•

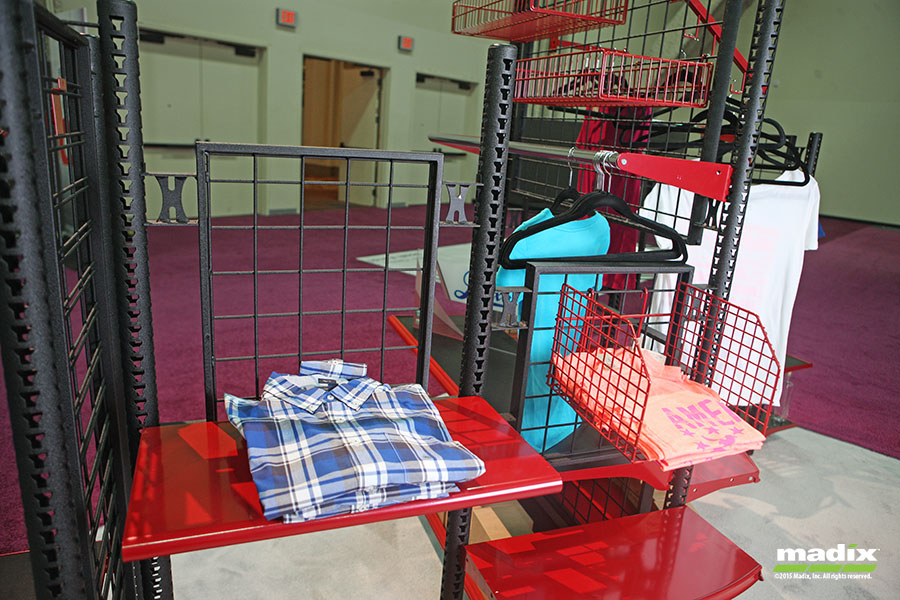

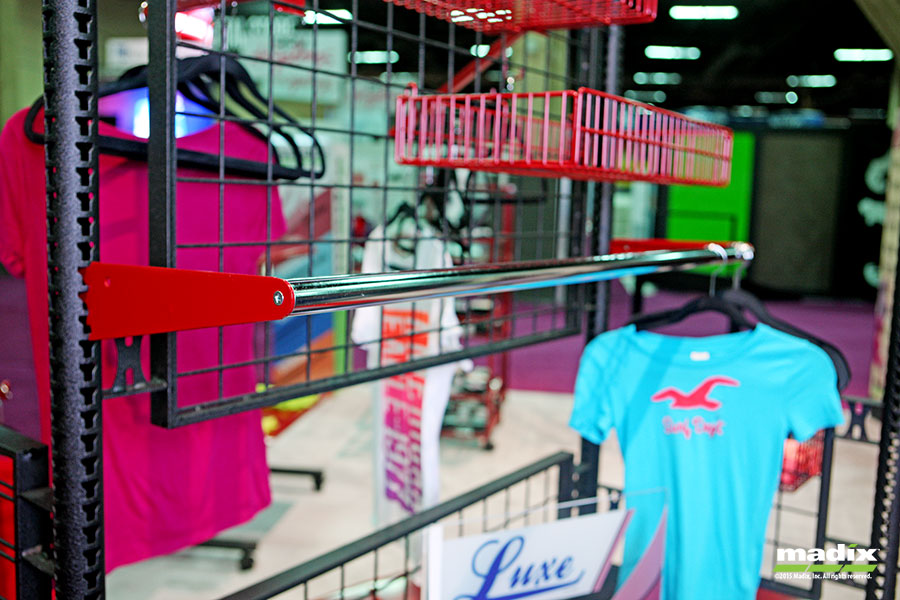

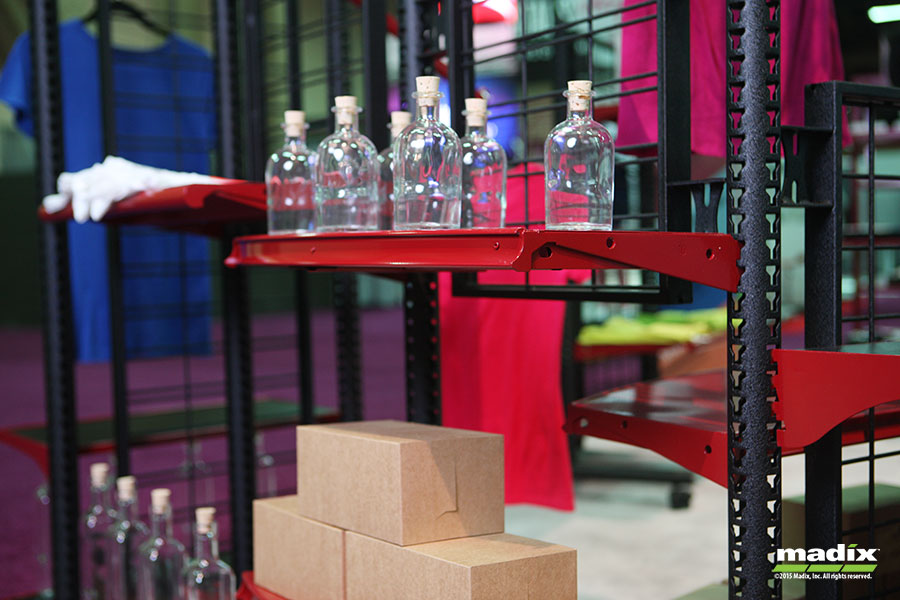

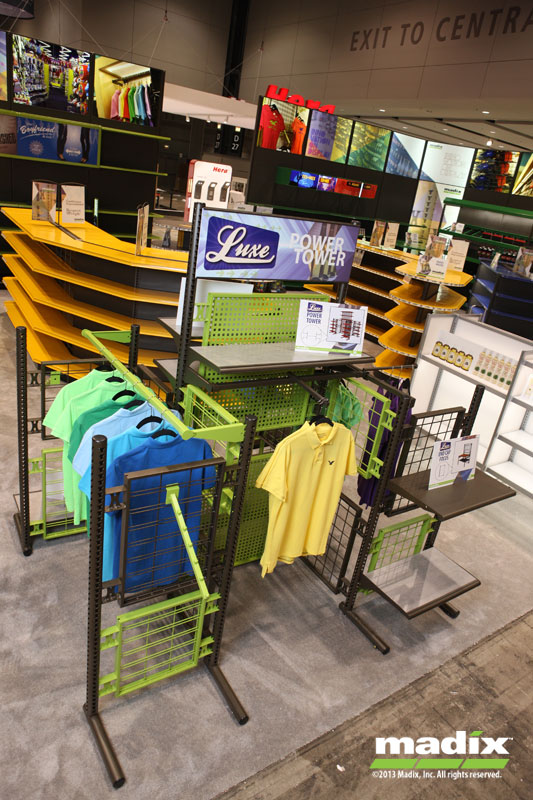

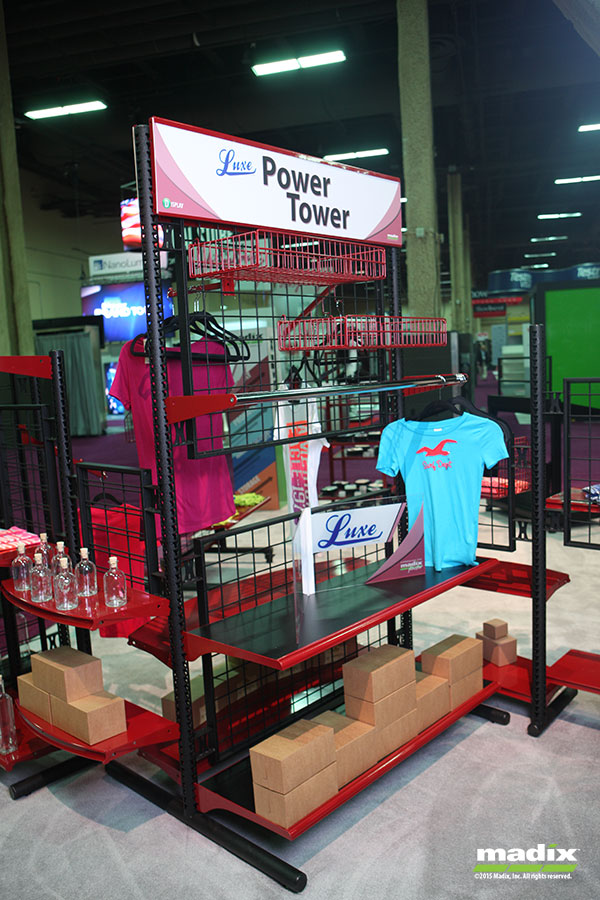

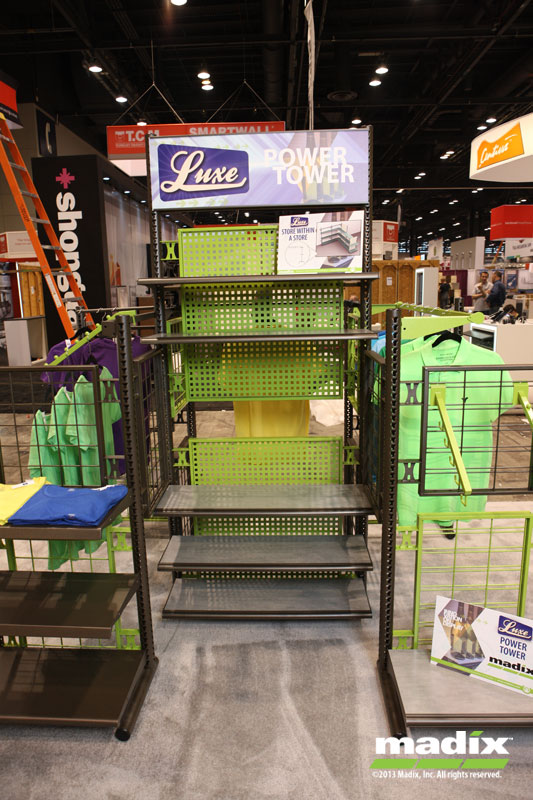

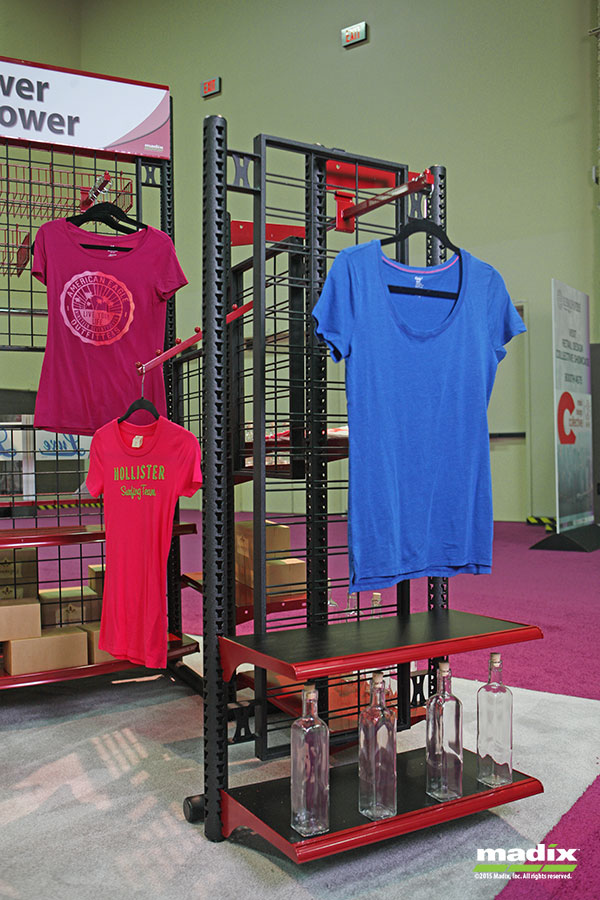

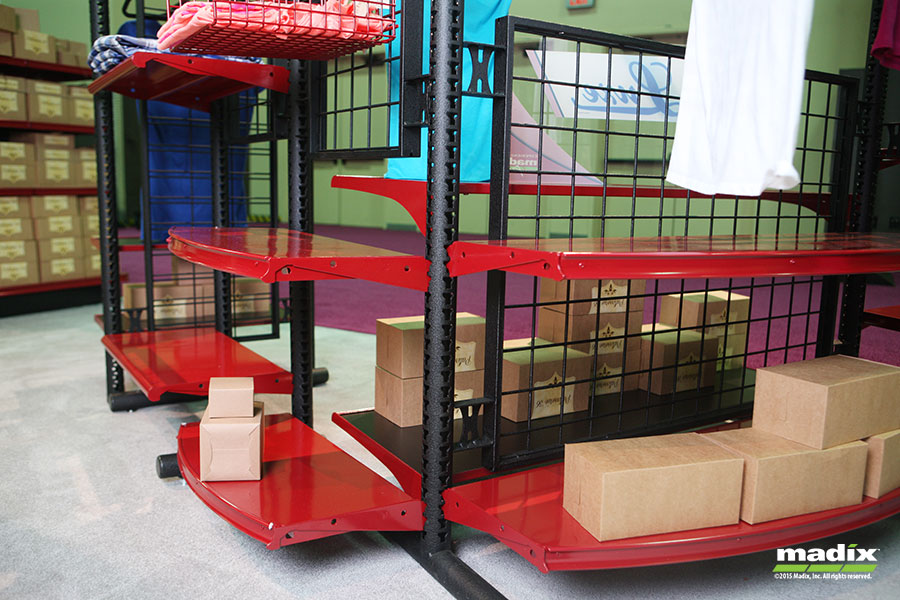

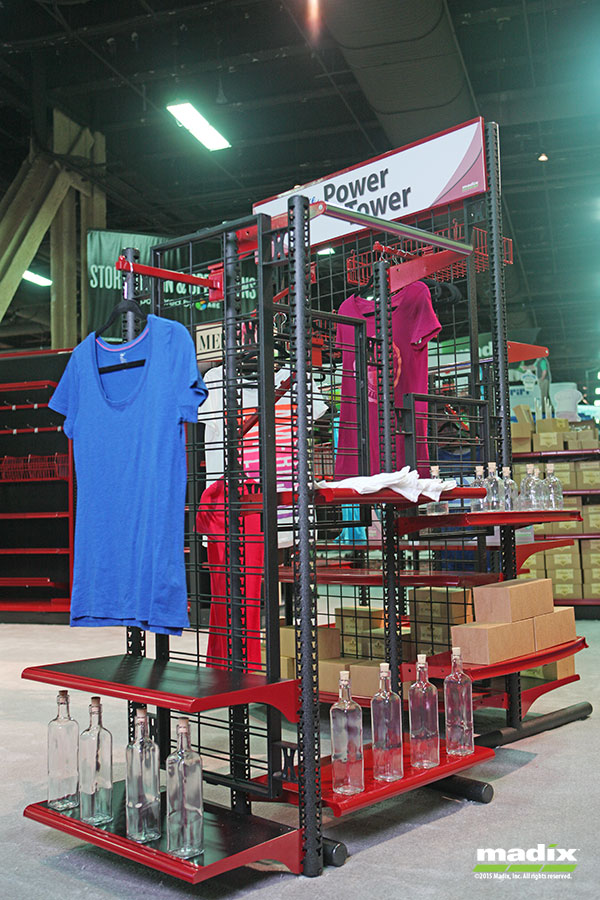

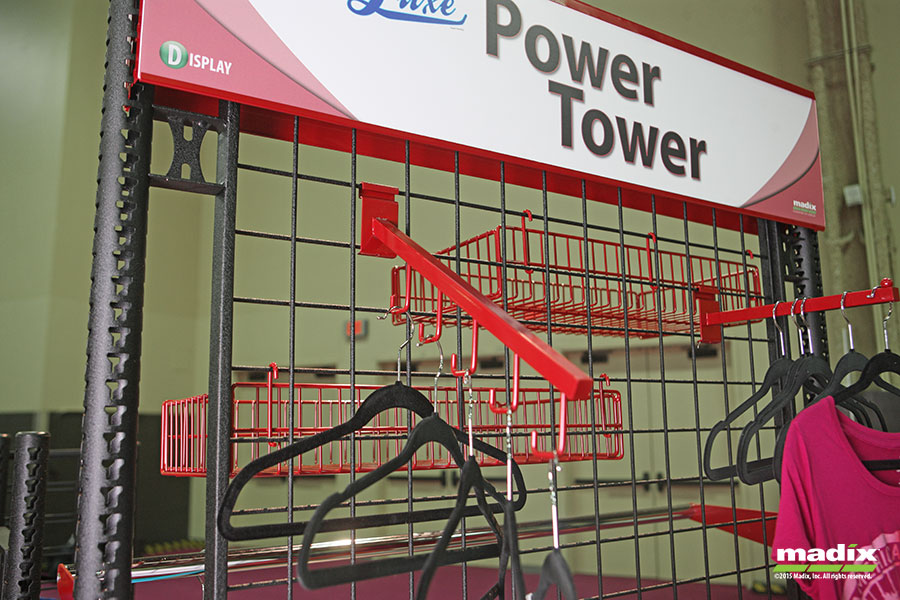

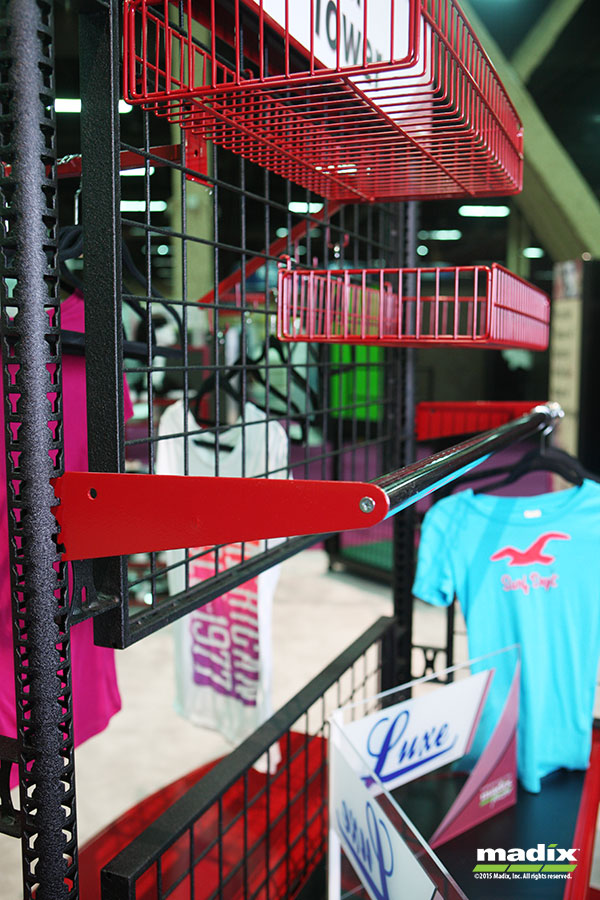

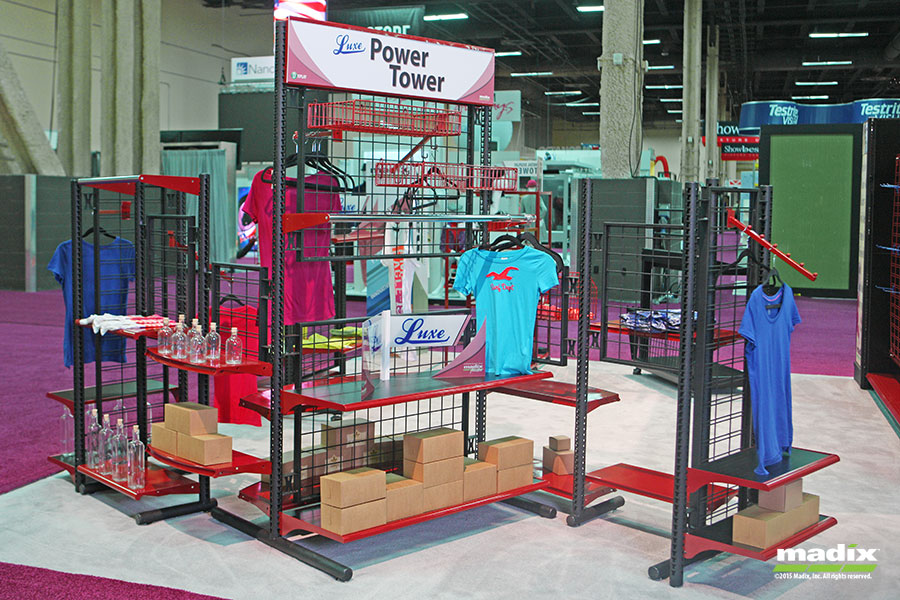

  Luxe Power Tower

  Download

  Revit 2D CAD 3D CAD


•

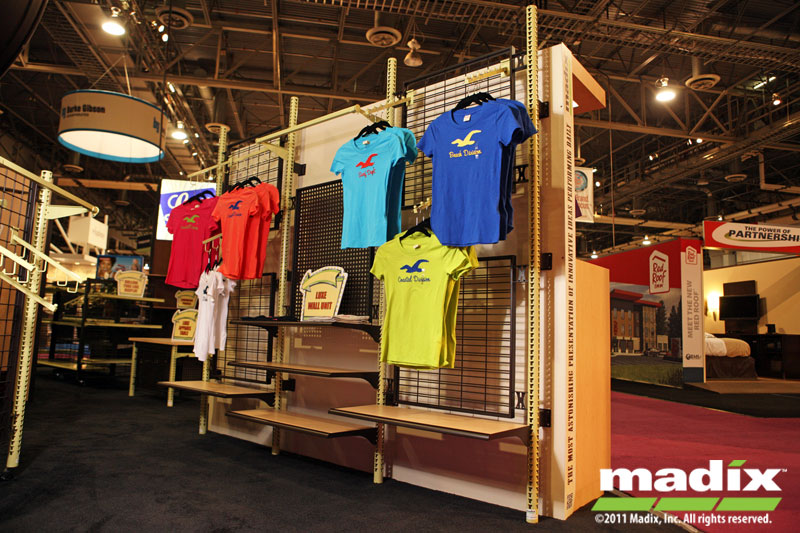

  Luxe Wall Fixture

  Download

  Revit 2D CAD 3D CAD


•

  Luxe End Cap

  Download

  Revit 2D CAD 3D CAD


•

  Luxe T Display

  Download

  Revit 2D CAD 3D CAD


•

  Luxe Queuing Solutions

  Download

  Revit 2D CAD 3D CAD



• Components for Luxe

  Reveal/Hide Components

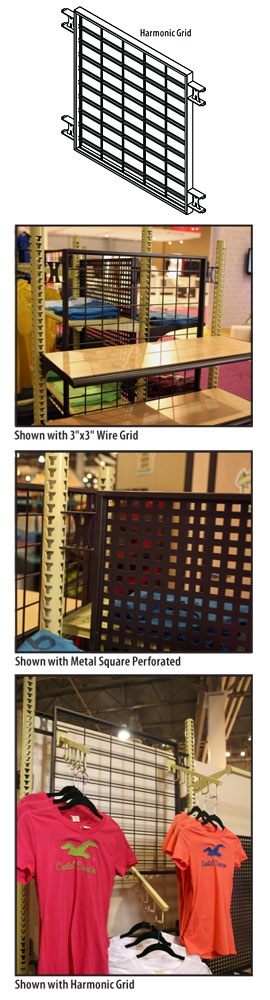

   Luxe Back Panels

  Part Number: LUXB(TYPE)(NH)(NW)

  • LUXB......Luxe Back Panels
  • TYPE.....HG=Harmonic Grid MSP=Metal Square Perforated WG=3"x3" Wire Grid (76 mm x 76 mm) MPG=Multi-Grid
  • NH......Nominal Height 24", 30", 36", 42", 48" (610 mm, 762 mm, 914 mm, 1067 mm, 1219 mm)
  • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 increments)



   Luxe End Frame Panel

  • Wire grid used for end caps
  • Requires two Luxe Wall Outrigger Uprights [LUXP(NH) ordered separately]
  • If more support is needed, order Luxe L-Uprights with Leg on One Side [LUXL-(NH)(ND)]

  Part Number: LUXEFP(TYPE)(NH)(NW)

  • LUXEFP......Luxe End Frame Panel
  • TYPE......MSP=Metal Square Perforated MPG=Multi-Grid HG=Harmonic Grid WG=3"x3" Wire Grid (76 mm x 76 mm)
  • NH......Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
  • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 increments)

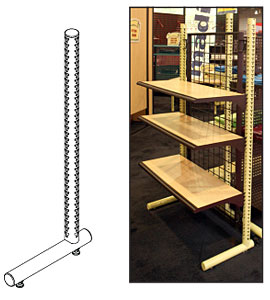

   Luxe L-Uprights with Leg on One Side

  • L-Upright with center slotted upright and one leg; used for one-sided merchandising applications

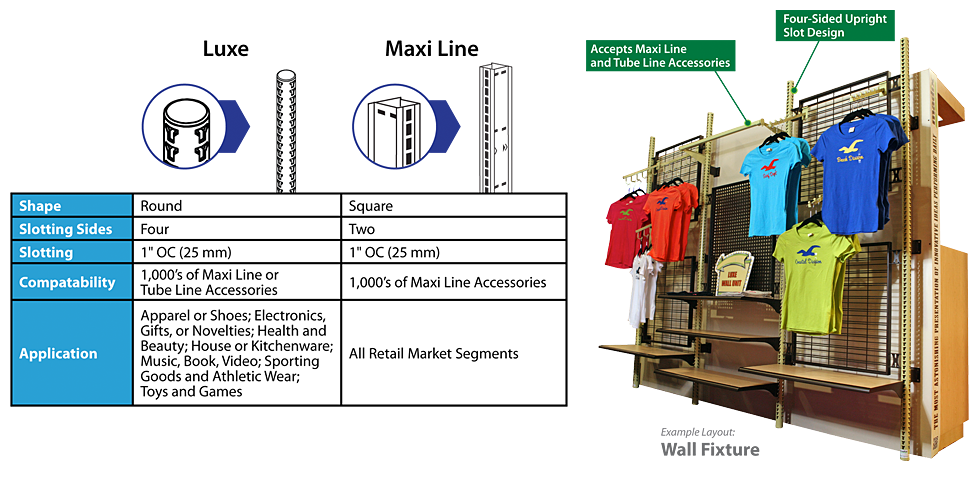

  • Slotted 1" (25 mm) OC on 4 sides to produce a wide array of fixture configurations
  • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System

  Part Number: LUXL-(NH)(ND)

  • LUXL......Luxe L-Upright
  • NH......Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
  • ND......Nominal Depth 12" to 24" in 2" increments (305 mm to 610 mm 51 mm increments)

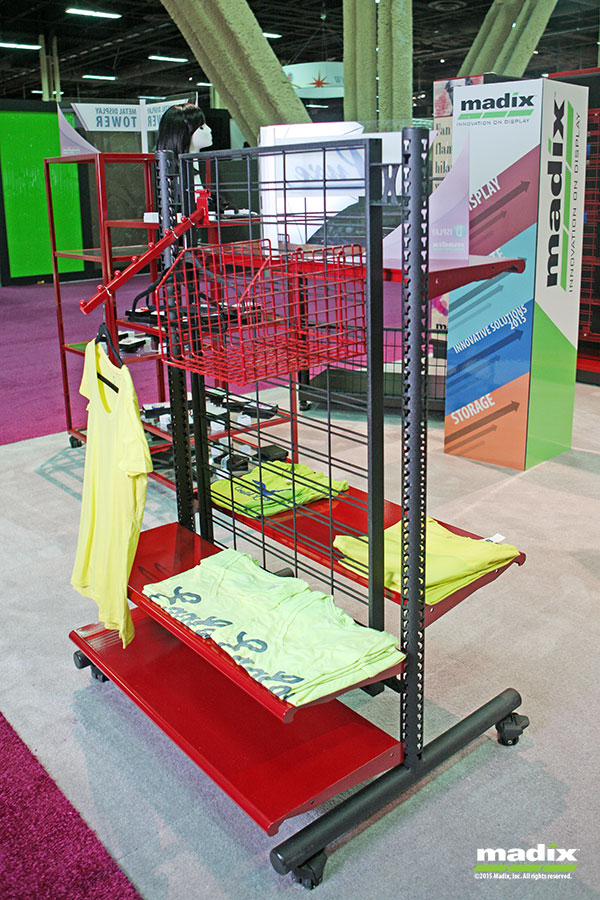

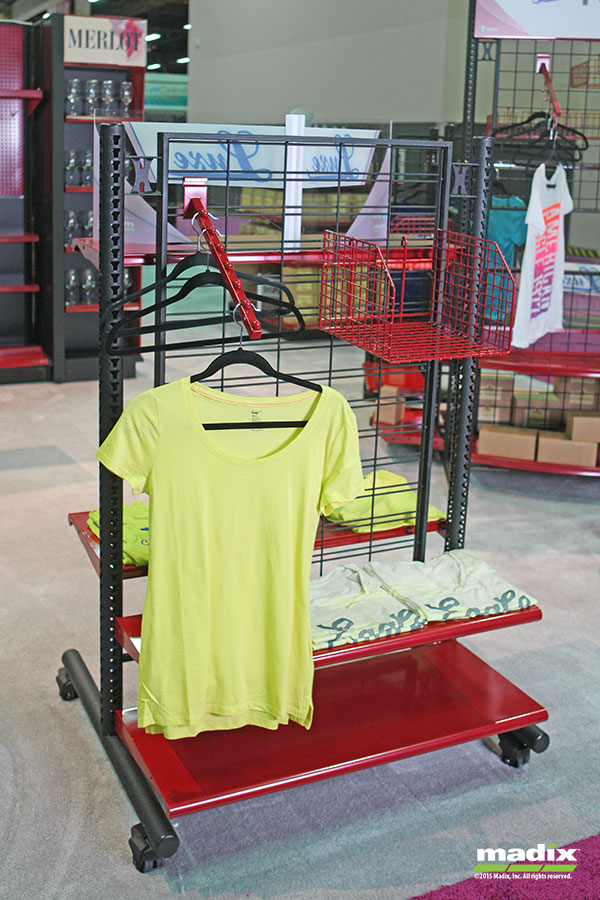

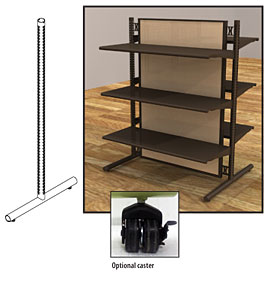

   Luxe T-Uprights with Leg on Both Sides

  • T-Upright with center slotted upright and 2 legs which is used for 2-sided merchandising application or where stability is required
  • Slotted 1" (25 mm) OC on four sides to produce a wide array of fixture configurations
  • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System

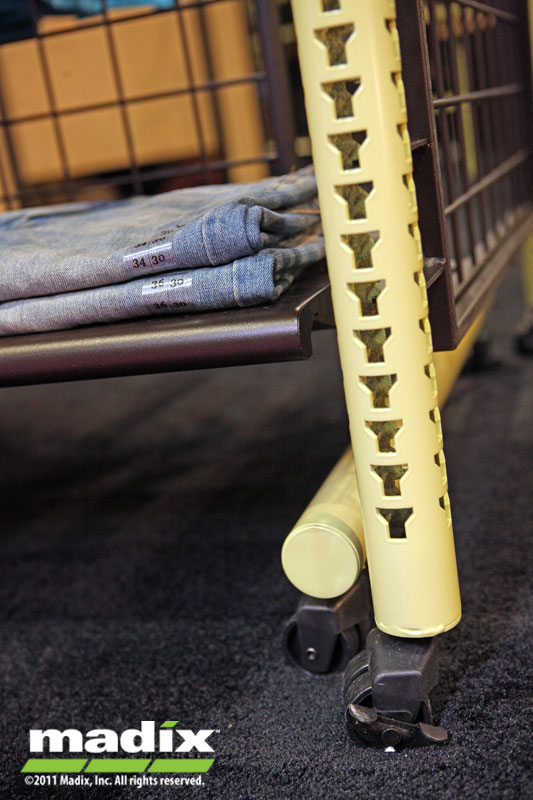

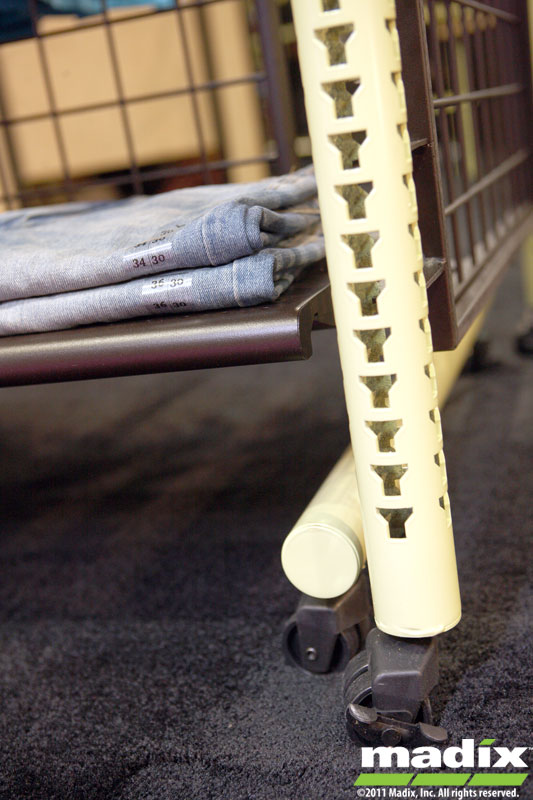

  • Optional Caster to be used on: T-Uprights Wall Outriggers Upright Only, when used as a Table or other stable configurations

  Part Number: LUXT-(NH)(NDL)(NDR)(OPT)

  • LUXT......Luxe T-Upright
  • NH......Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
  • NDL......Nominal Depth Left 12" to 24" in 2" increments (305 mm to 610 mm 51mm increments)
  • NDR......Nominal Depth Right 12" to 24" in 2" increments (305 mm to 610 mm 51 mm increments)

  Options

  • OPT..... Blank= Leveler C= Casters



  DO NOT use casters on L- Uprights unless it is supported on the rear by another Luxe fixture. Contact Sales Consultant regarding application.

   Luxe Tie Bar

  • Use Tie Bar when no backs are being used to stabilize aisles and walls
  • Minimum of two required per section

  Part Number: LUXTB-(NW)

  • LUXTB......Luxe Tie Bar
  • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 mm increments)

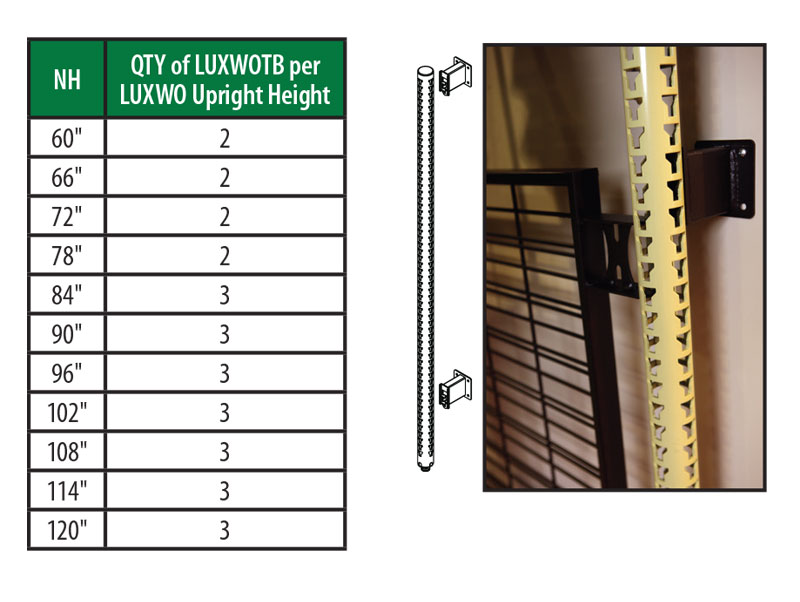

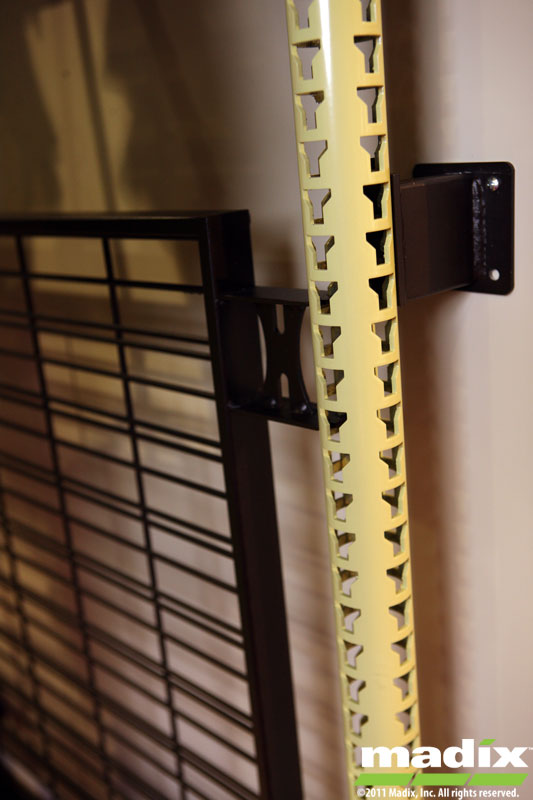

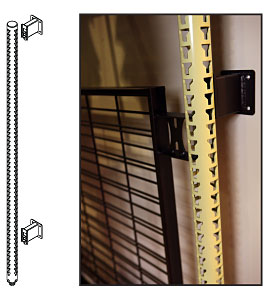

   Luxe Wall Outrigger

  • Luxe upright without legs used for perimeter merchandising applications
  • Mounted off the perimeter wall by 3", 6", 12", or 18" (76 mm, 152 mm, 305 mm, or 457 mm)
  • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System

  Part Number: LUWO-(NH)(NDL)

  • LUWO......Luxe Wall Outrigger
  • NH......Nominal Height 60" to 120" in 6" increments (1524 mm to 3048 mm in 152 mm increments)
  • NDL......Nominal Depth Left 3", 6", 12", 18" (76 mm, 152 mm, 305 mm, 457 mm)

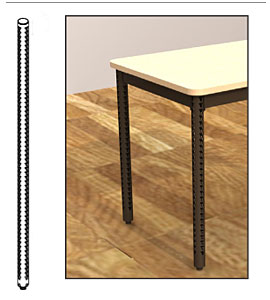

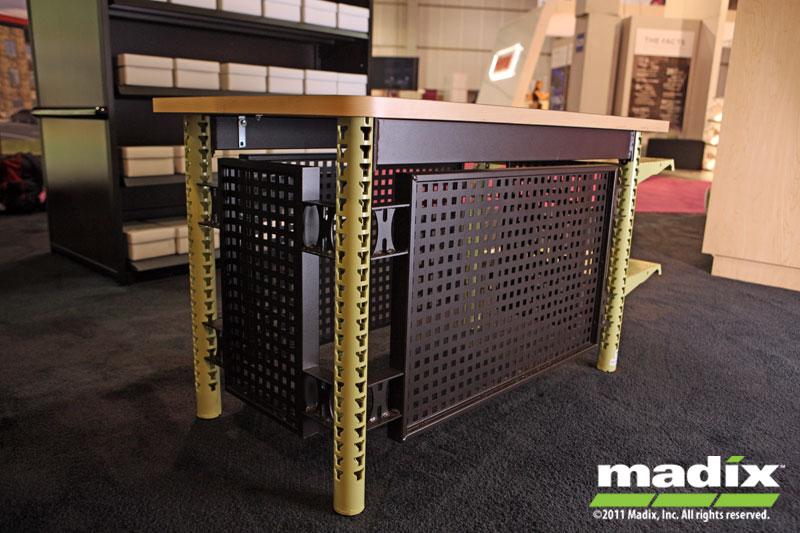

   Luxe Wall Outrigger Upright Only

  • Luxe Outrigger upright only
  • Use for tables, benches, and 4-post square configuration
  • Nominal Height 24"-120" in 6" increments (610 mm to 3048 mm in 152 mm increments)

  Part Number: LUXP(NH)(OPT)

  • LUXP......Luxe Wall Outrigger Post Only
  • NH......Nominal Height 24" to 120" in 6" increments (610 mm to 3048 mm in 152 mm increments)
  • OPT......Blank= Leveler C= Casters

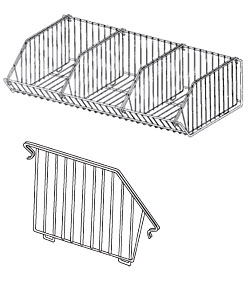

   Multi-Purpose Wire Divider

  • Solution for maintaining separation of products
  • 3 3/4"W x 7 3/4"H x 6 3/4"D (95 x 197 x 171 mm)
  • Dividers clip into front shelf perforations
  • Minimum product width is 6" (152 mm)
  • End dividers sold in pairs

  Part Number: WDMP-(OPT)

  • WDMP......Multi-Purpose Wire Divider

  Options

  • OPT...... C=Center E=Ends, Pairs Only

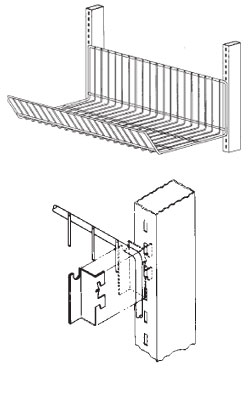

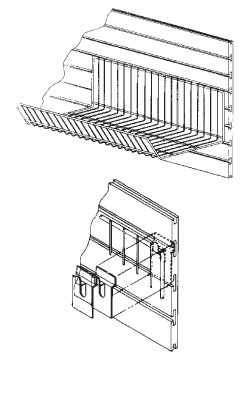

   Shelf Extender Basket

  • Movable basket hooks in front row of perforations in Standard Upper Shelves
  • Ideal for literature or other lightweight items
  • 18"W x 2 1/2"D (457 x 64 mm), 3 1/4" (83 mm) front height, 6" (152 mm) back height
  • Tag molding accepts 1 1/4" (32 mm) tags

  Part Number: SEB

  • SEB......Shelf Extender Basket



   Luxe 45° Corner Shelf

  • Maximum shelf depth is 10" (254 mm) only
  • Corner shelf bolts into adjacent shelves at the same level
  • Shelf does not come with brackets

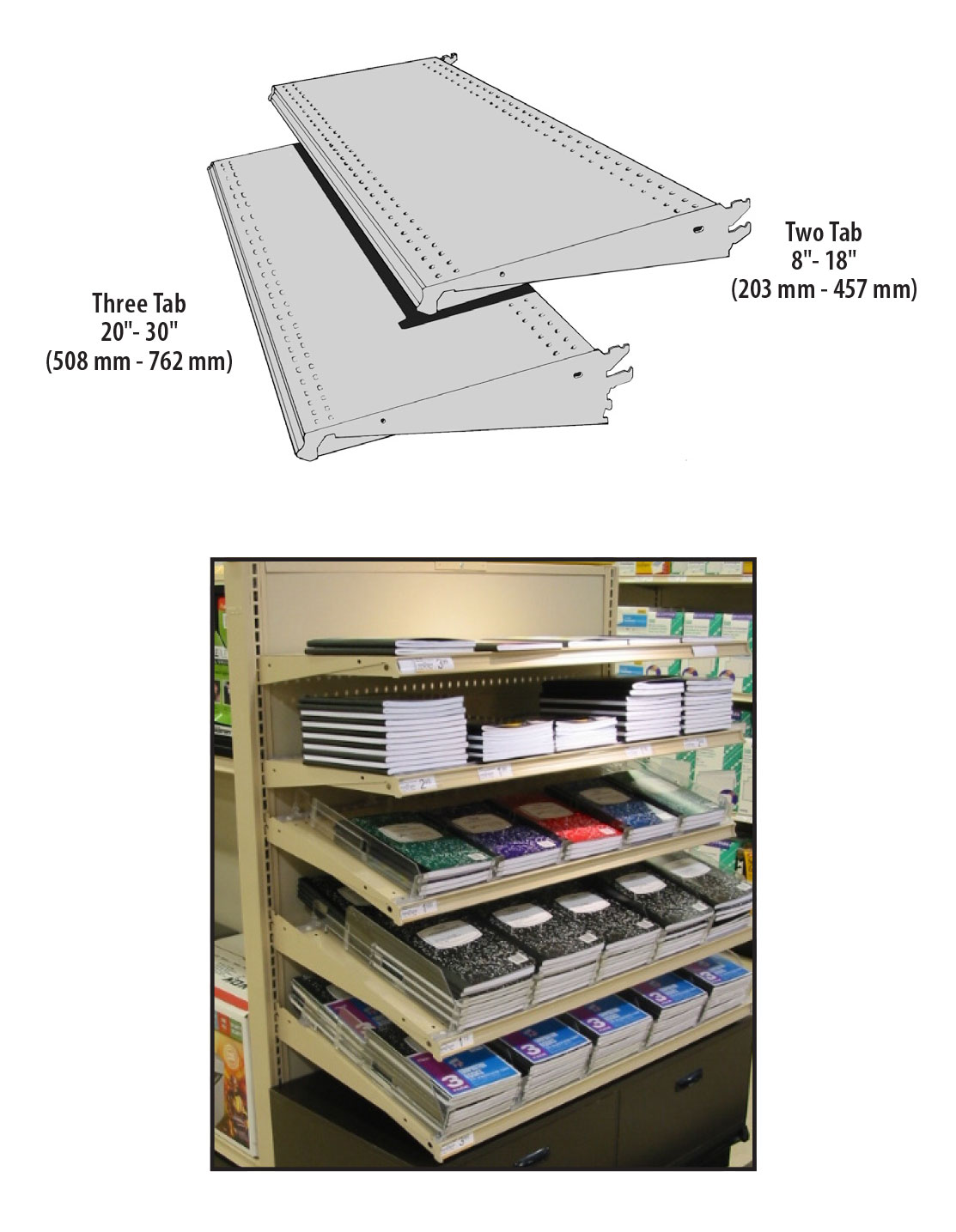

  • Use with 10" (254 mm) Standard Upright Shelves [SUS-(NW)10] only

  Part Number: LUQSUS45-10

  • LUQ..... Luxe Queuing
  • SUS..... Standard Upper Shelf
  • 45..... 45°
  • 10.....Nominal Depth 10" (254 mm)



   Luxe Backing Locking Insert

  • All backs except LUQFPC(NW) include four (4) locking inserts
  • Pack of 8 inserts

  Part Number: LUXBLI-BLK

  • LUXBLI......Luxe Back Locking Insert
  • BLK......Black



   Luxe Queuing Fixture Post Connector Rail

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Rails are installed across post where shelving and accessories are not needed
  • Produces an open look with greater merchandise visibility in the queuing area
  • Minimum of two (2) required per section (more can be added if required)

  Part Number: LUQFPCR(NW)(OPT)

  • LUQF......Luxe Queuing Fixture
  • PCR......Post Connector Rail
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • OPT......Blank=Locking NL=Non-Locking



  Includes a locking plunger bolt on both ends of the Connector Rail if locking option selected.

   Luxe Queuing Hardboard Back 45°

  • Nominal width is 24" (610 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Part Number: LUQB45(BACK1)(BACK2)DP(NW)(NH)

  • LUQB..... Luxe Queuing System Back
  • 45..... 45°
  • BACK1..... Interior Back H=Hardboard HL=Hardboard Laminated P=Pegboard PL=Pegboard Laminated
  • BACK2..... Exterior Back H=Hardboard HL=Hardboard Laminated P=Pegboard PL=Pegboard Laminated
  • DP.....Double Panel
  • NW.....Nominal Width 24" (640 mm)
  • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Finish

  • FIN1.....Metal FIN2..... Interior Back FIN3..... Exterior Back



  Nominal width of 18" (457 mm) available, largest depth of adjacent shelves is 8" (203 mm). No Luxe 45° Corner Shelf (LUQSUS45-10) available for 18" (457 mm) corner.

   Luxe Queuing Hardboard Backs on Two (2) Sides

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm or 1219 mm)
  • Available with hardboard backs on both sides, back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
  • Also available with pegboard on one side and hardboard on the other

  Part Number: LUQB(OPT)DP(NW)(NH)

  • LUQB......Luxe Queuing System Back
  • OPT......HH=Hardboard Two Sides HP=Hardboard Back & Pegboard
  • DP......Double Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Options

  • OPT......HH=Hardboard Two Sides HP=Hardboard Back & Pegboard

  Finish

  • FIN1......Metal FIN2......Back One FIN3......Back Two



   Luxe Queuing Impulse Basket

  • Maximum depth of 10" (254 mm)
  • Includes tag
  • Snap in wire dividers included: 30" = 4 dividers 36" = 5 dividers 42" = 6 dividers 48" = 7 dividers

  Part Number: LUQIB-(NW)

  • LUQ......Luxe Queuing
  • IB......Impulse Basket
  • NW......Nominal Width 30", 36", 42", or 48" (762 mm, 914 mm, 1067 mm, 1219 mm)
  • ND......Nominal Depth 08" or 10" (203 mm or 254 mm)



   Luxe Queuing MegaWall™ Back 45°

  • Nominal width is 24" (610 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Single-sided MegaWall™ back that is 2" OC and slotted on two sides

  Part Number: LUQB45MW(NW)(NH)

  • LUQB..... Luxe Queuing System Back
  • 45..... 45°
  • MW.....MegaWall™
  • NW.....Nominal Width 24" (640 mm)
  • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1219 mm, or 1524 mm)

  Finish

  • FIN1..... Frame FIN2.....MegaWall™



  Nominal width of 18" (457 mm) available, largest depth of adjacent shelves is 8" (203 mm). No Luxe 45° Corner Shelf (LUQSUS45-10) available for 18" (457 mm) corner.

   Luxe Queuing MegaWall™ Backs on One (1) Side

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • MegaWall™ back on one side
  • Flat, no MegaWall™ on the other side
  • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post

  Part Number: LUQBMWSP(NW)(NH)

  • LUQB......Luxe Queuing System Back
  • MW......MegaWall™
  • SP......Single Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Finish

  • FIN1......Frame FIN2......MegaWall™ One (same color as side two) FIN3......MegaWall™ Two (same color as side one)



   Luxe Queuing MegaWall™ Backs on Two (2) Sides

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • MegaWall™ Back Panel Insert is slotted on two sides ONLY
  • MegaWall™ Backs are 2" OC slotting
  • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post

  Part Number: LUQBMW(NW)(NH)(OPT1)

  • LUQB......Luxe Queuing System Back
  • MW......MegaWall™
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Options

  • OPT1.....U=Unpainted (raw aluminium)

  Finish

  • FIN1......Frame FIN2......MegaWall™



   Luxe Queuing Multi-Purpose Adjustable Bin Divider

  • Clear plastic dividers
  • Use for small and medium Multi-Purpose Adjustable Bins [LUQMPABIN-(OPT)]
  • Can accommodate up to three dividers
  • Order separately from bins

  Part Number: LUQMPBINDIV-(OPT)

  • LUQ......Luxe Queuing
  • PBINDIV......Multi-Purpose Adjustable Bin Divider
  • OPT......SM=Small MD=Medium



   Luxe Queuing Multi-Purpose Adjustable Bins

  • Clear plastic bins to merchandise small impulse items
  • Use two Luxe Queuing Multi-Purpose Hooks for Pegboard or Slatwall (LUQMPHOOKPSW) to attach to pegboard, MegaWall™, mini grid, slatgrid, or slatwall
  • Use two Luxe Queuing Multi-Purpose Hooks for Wire Grid (LUQMPHOOKWG) to attach bins to square wire grid patterns
  • Place up to three dividers to maximize your sales and profitability
  • Sizes available: ° Small Bin (7 1/2"L x 11 7/8"W x 5 7/8"H) ° Medium Bin (10 1/4"L x 11 7/8"W x 5 7/8"H)
  • 1 1/4" (32 mm) tag mold on front for pricing
  • Can accommodate up to three dividers
  • Order separately from dividers

  Part Number: LUQMPABIN-(OPT)

  • LUQ......Luxe Queuing
  • MPABIN......Multi-Purpose Adjustable Bins
  • OPT......SM=Small MD=Medium



   Luxe Queuing Multi-Purpose Hook for Pegboard or Slatwall

  • Clear plastic hooks
  • Used to hang Luxe Queuing Multi-Purpose Adjustable Bins [LUQMPABIN-(OPT)] or Luxe Queuing Multi-Purpose Tray (LUQMPTRAY) on pegboard, MegaWall™, slatgrid, mini grid, or slatwall
  • Two required per bin
  • Order separately from bins or trays

  Part Number: LUQMPHOOKPSW

  • LUQ......Luxe Queuing
  • MP......Multi-Purpose
  • HOOK......Hook
  • PSW......for Pegboard or Slatwall



   Luxe Queuing Multi-Purpose Hook for Wire Grid

  • Clear plastic hooks
  • Used to hang Luxe Queuing Multi-Purpose Adjustable Bins [LUQMPABIN-(OPT)] or Luxe Queuing Multi-Purpose Tray (LUQMPTRAY) on wire grid
  • Two required per bin
  • Order separately from bins or trays

  Part Number: LUQMPHOOKWG

  • LUQ......Luxe Queuing
  • MP......Multi-Purpose
  • HOOK......Hook
  • WG......for Wire Grid



   Luxe Queuing Multi-Purpose Tray

  • Clear plastic trays to merchandise small impulse items
  • 9"D x 16"W x 3"H
  • 1 1/4" (32 mm) tag mold on front for pricing
  • Dividers ordered separately from trays

  Part Number: LUQMPTRAY

  • LUQ......Luxe Queuing
  • MP......Multi-Purpose
  • TRAY......Tray



   Luxe Queuing Multi-Purpose Tray Divider

  • Clear plastic divider
  • Use with Luxe Queuing Multi-Purpose Tray (LUQMPTRAY)
  • One divider per bin
  • Dividers ordered separately from trays

  Part Number: LUQMPTRAYDIV

  • LUQ......Luxe Queuing
  • MP......Multi-Purpose
  • TRAY......Tray
  • DIV......Divider



   Luxe Queuing Pegboard Backs on Two (2) Sides

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Pegboard backs on both sides, back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
  • Also available with pegboard on one side and hardboard on the other

  Part Number: LUQB(OPT)DP(NW)(NH)

  • LUQB......Luxe Queuing System Back
  • OPT......PP=Pegboard Two Sides HP=Hardboard Back & Pegboard
  • DP......Double Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Options

  • OPT......PP=Pegboard Two Sides HP=Hardboard Back & Pegboard

  Finish

  • FIN1......Metal FIN2......Back One FIN3......Back Two



   Luxe Queuing Post Slotted on Four Sides

  • Especially designed for Maxi Shelves and Accessories (with brackets)
  • Provides the most flexibility for configurations—four slots allow for 90° turns in four different directions
  • Creates sharp, neat corners without need for filler panels
  • Base diameter of 13" (330 mm)
  • Maximum post height is 60". If you require taller posts, please contact your Madix sales representative.

  Part Number: LUQP(NH)S4

  • LUQP......Luxe Queuing System Post
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • S4......S4=Slotted 4-Sided



  Luxe Queuing 13" Round Capacity

  Accessories must not exceed 6" (152 mm) deep.

  Do not exceed 142 lbs per section per side when using 6" accessories.

  If a higher weight capacity more than 142 lbs per section and deeper than 6" accessories are required please contact your Madix Sales Representative.

   Luxe Queuing Post Slotted on Two Sides

  • The section's back material (Pegboard, Grid, Slatwall, or Megawall) is used to support the shelves and accessories, not the posts' slots
  • Creates a clean look (no front-facing visible slots)
  • Base diameter of 13" (330 mm)
  • Maximum post height of 60" (1524 mm). If taller posts are required please call your Madix Sales Representative.

  Part Number: LUQP(NH)S2

  • LUQP......Luxe Queuing System Post
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • S2......Slotted 2-Sided



  Luxe Queuing 13" Round Capacity

  Accessories must not exceed 6" (152 mm) deep.

  Do not exceed 142 lbs per section per side when using 6" accessories.

  If a higher weight capacity more than 142 lbs per section and deeper than 6" accessories are required please contact your Madix Sales Representative.

   Luxe Queuing Retractable Retainer

  • Retractable belt fits into the face of the post/stanchion
  • Housing and receiving clip easily hangs and is secured to the slots in the Luxe Post
  • Can be moved where needed
  • 5 1/2"H x 3"W x 3" D, retainer extends 7 1/2"

  Part Number: LUQRR

  • LUQRR......Luxe Queuing Retractable Retainer



   Luxe Queuing Slatwall Back 45°

  • Nominal width is 24" (610 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Part Number: LUQB45(BACK1)(BACK2)(OPT)(NW)(NH)

  • LUQB..... Luxe Queuing System Back
  • 45..... 45°
  • BACK1..... Interior Back SWL=Slatwall Laminated SWP=Slatwall Painted SWM=Slatwall Melamine
  • BACK2..... Exterior Back SWL=Slatwall Laminated SWP=Slatwall Painted SWM=Slatwall Melamine Blank=Single-Sided
  • NW.....Nominal Width 24" (640 mm)
  • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Options

  • OPT..... SP=Single Panel DP=Double Panel



   Luxe Queuing Slatwall Backs on One (1) Side

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Slatwall back on one side, flat on rear
  • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
  • If the slatwall back is painted, the slatwall front and flat interior will be painted the same color
  • The flat interior side can be laminated, if the slatwall side (back one) is painted or laminated

  Part Number: LUQB(B1)SP(NW)(NH)

  • LUQB......Luxe Queuing System Back
  • B1......Back Option SWL=Slatwall Laminated SWP=Slatwall Painted
  • SP......Single Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Finish

  • FIN1......Metal FIN2......Back One (front & back same color only) FIN3......Inserts One FIN4......Interior Back (laminate option only)



   Luxe Queuing Slatwall Backs on Two (2) Sides

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Slatwall backs on two sides
  • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post

  Part Number: LUQB(B1)(B2)DP(NW)(NH)

  • LUQB......Luxe Queuing System Back
  • B1......Back Option One SWL=Slatwall Laminated SWP=Slatwall Painted
  • B2......Back Option Two SWL=Slatwall Laminated SWP=Slatwall Painted
  • DP......Double Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)

  Finish

  • FIN1......Metal FIN2......Back One FIN3......Inserts One FIN4......Back Two FIN5......Inserts Two

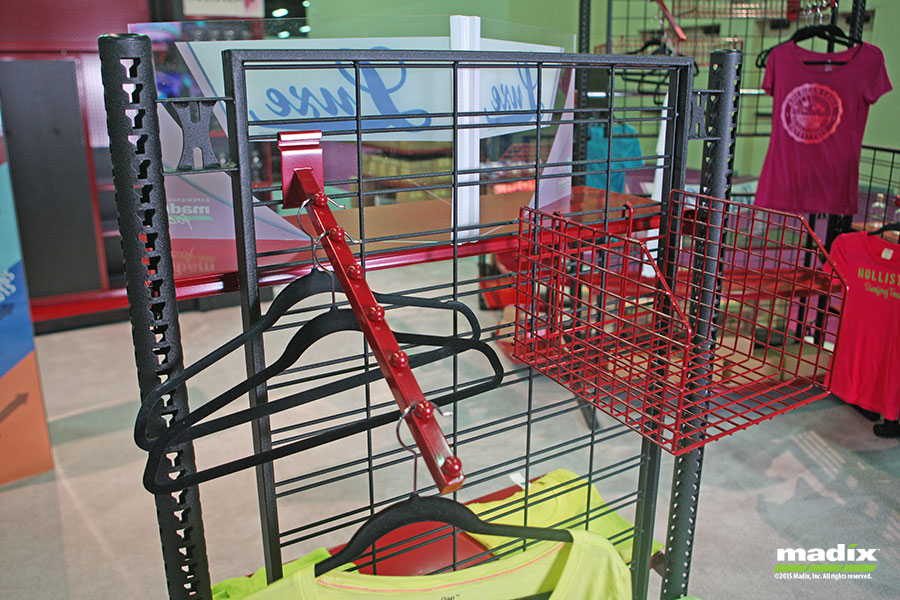

   Luxe Queuing Wire Grid Back 45°

  • Nominal width is 24" (610 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Double-sided back will have the same wire grid

  Part Number: LUQB45(TYPE)(OPT)(NW)(NH)

  • LUQB..... Luxe Queuing System Back
  • 45..... 45°
  • TYPE.....Wire Grid Type SG=Slat Grid MG=Mini Grid MPG=Multi Purpose Grid 2X2=2" x 2" Grid 3X3=3" x 3" Grid MSG=Modified Slat Grid MHG=Modified Harmonic Grid
  • NW.....Nominal Width 24" (640 mm)
  • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1219 mm, or 1524 mm)

  Options

  • OPT..... SP=Single Sided DP=Double Sided



   Luxe Queuing Wire Grid Backs with One (1) Panel Per Section

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Wire Grid back is center mounted in each section
  • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post

  Part Number: LUQB(TYPE)SP(NW)(NH)

  • LUQB......Luxe Queuing System Wire Back
  • TYPE......Grid Type SG=Slatgrid MG=Mini Grid MPG=Multi-Purpose Grid 2X2=2x2 Grid 3X3= 3x3 Grid MSG=Modified Slatgrid MHG=Modified Harmonic Grid
  • SP......Single Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)



   Luxe Queuing Wire Grid Backs with Two (2) Panels Per Section

  • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
  • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
  • Two Wire Grid backs are mounted in each section, allowing independent merchandising
  • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post

  Part Number: LUQB(TYPE)DP(NW)(NH)

  • LUQB......Luxe Queuing System Wire Back
  • TYPE......Grid Type SG=Slatgrid MG=Mini Grid MPG=Multi-Purpose Grid 2X2=2x2 Grid 3X3= 3x3 Grid MSG=Modified Slatgrid MHG=Modified Harmonic Grid
  • DP......Double Panel
  • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
  • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)



   Luxe Wall Outrigger Bracket

  • Bracket mounts off the perimeter wall by 3", 6", 12", or 18" (76 mm, 152 mm, 305 mm, or 457 mm)
  • May be ordered separately with a Luxe Wall Outrigger Upright Only [LUXP(NH)]

  Part Number: LUXWOTB(ND)

  • LUXW......Luxe Wall
  • OTB......Outrigger Bracket
  • ND......Nominal Depth 03", 06", 12", 18" (76 mm, 152 mm, 305 mm, 457 mm)



   Luxe Wall Outrigger Upright & Bracket

  • Luxe upright without legs used for perimeter merchandising applications
  • Mounted off the perimeter wall by 3", 6", 12", or 18" (76 mm, 152 mm, 305 mm, or 457 mm)
  • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System
  • Includes Luxe Wall Outrigger Bracket LUXWOTB(ND)]
  • Does not include hardware to attach to wall

  Part Number: LUXWO-(NH)(ND)

  • LUXWO......Luxe Wall Outrigger
  • NH......Nominal Height 60" to 120" in 6" increments (1524 mm to 3048 mm in 152 mm increments)
  • ND......Nominal Depth 03", 06", 12", 18" (76 mm, 152 mm, 305 mm, 457 mm)

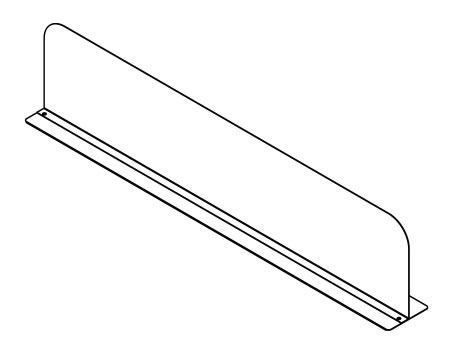

   Metal Shelf Cross Divider

  • Horizontal shelf divider
  • Attaches to shelf with magnetic strip

  Part Number: MSCD(NW)

  • MSCD....Metal Shelf Cross Divider
  • NW....Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)



   Metal Shelf Divider

  • Attaches to shelf with magnetic strip
  • 10" (254 mm) maximum depth shelf for Luxe Queuing

  Part Number: MSD-(ND)(NH)

  • MSD.....Metal Shelf Divider
  • ND......Nominal Depth 10" (254 mm)
  • NH......Nominal Height 4", 8", 12", 24" (102 mm, 203 mm, 305 mm, 610 mm)



   Standard Upper Shelf

  • Maximum shelf depth is 10" (254 mm) only

  Part Number: SUS-(NW)10

  • SUS......Standard Upper Shelf
  • NW......Nominal Width 2' to 4' in 6" increments (610 mm to 1219 mm in 152 mm increments)
  • 10......Nominal Depth 10" (254 mm)

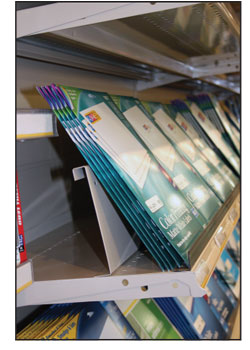

   Standard Upper Shelf Flat, 15° or 30° Downslope

  • 1-1/4" (32 mm) tag molding integrated with front edge of shelf surface
  • Versatility of three positions: Flat, 15° downslope, 30° downslope
  • Load capacity, flat position: 6" (152 mm) to 8" (203 mm) depths = 200 lbs 10" (254 mm) = 200 lbs
  • Load capacities based on evenly distributed static loading
  • SUS and STP shelves do not align when placed side by side

  Part Number: SUS-(NW)(ND)

  • SUS......Standard Upper Shelf
  • NW......Nominal Width 2' to 4' in 6" increments (610 mm to 1219 mm in 152 mm increments)
  • ND......Nominal Depth 6" to 10" in 2" increments (152 mm to 254 mm in 51 mm increments)



  If add-on aluminum tag molding is desired, use selected type as suffix immediately after part number. Example: SUS-410-M17S

   Standard Upper Shelf Flat, 15° or 30° Downslope

  • 1 1/4" (32 mm) tag molding integrated with front edge of shelf surface
  • Versatility of three positions: Flat, 15° downslope, 30° downslope
  • Load capacity, flat position: 6" (152 mm) to 8" (203 mm) depths = 200 lbs 10" (254 mm) = 200 lbs
  • Load capacities based on evenly distributed static loading
  • SUS and STP shelves do not align when placed side by side

  Part Number: STP(NW)(ND)

  • STP......Straight-in Insertion Three Position
  • NW......Nominal Width 2' to 4' in 6" increments (610 mm to 1219 mm in 152 mm increments)
  • ND......Nominal Depth 6" to 10" in 2" increments (152 mm to 254 mm in 51 mm increments)

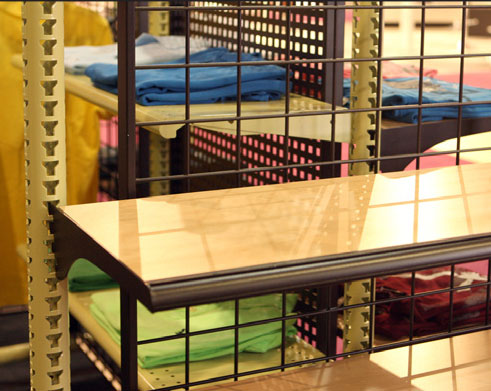

   Straight-In Upper Shelf with Wooden Top

  • Flat, 15° or 30° downslope
  • Load capacity is 100 lbs

  Part Number: STPSWT(NW)(ND)

  • STPS......Straight-In Upper Shelf
  • WT......Wooden Top
  • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 mm increments)
  • ND......Nominal Depth 08" to 20" in 2" increments (203 mm to 508 mm in 51 mm increments)



  A Queuing System Bowl

  • 12 1/4" diameter x 6" high (311 mm x 152 mm)

  Part Number: QSBOWL

  • QS....... Queuing System Bowl
  • BOWL.......Bowl



  B Luxe Upright Queuing System Post Accessory Mount

  • Required to be ordered when using Queuing System Bowl, Luxe Upright Queuing System, and Queuing Systems Sign Holder and Stem Post Accessory Mount

  Part Number: LUQPAM

  • LUQPAM....Luxe Upright Queuing System Post Accessory Mount



  C Tube Line T-Rack Queuing Acrylic Bowl, 4-Way Divider

  • Queuing Systems Sign Holder and Stem [QSSH(SIZE)] required to be ordered when using this divider

  Part Number: TLTRQAB4WD

  • TLTRQ......Tube Line T-Rack Queuing
  • AB4WD......Acrylic Bowl 4-Way Divider



  D Queuing Systems Sign Holder and Stem

  • 5"H x 7"W (127 mm x 178 mm)
  • 7"H x 11"W (178 mm x 279 mm)
  • Use with part QB1700997 if sign holder QSSH(SIZE) is required in a Luxe Post

  Part Number: QSSH(SIZE)

  • QSSH......Queuing Systems Sign Holder and Stem
  • SIZE......5X7 or 7X11



• Accessories for Luxe

  Reveal/Hide Accessories



  "Z" Brackets

  • Used as a suspension method from 1" (25 mm) universally slotted upright
  • Used when OEBs are the same length or slightly shorter than the centerline distance between uprights
  • Standard finish: Zinc Plated

  Part Number: AC123141(HAND)Z

  • AC123141.......Brackets
  • Hand....... L=Left-Hand Option R=Right-Hand Option
  • Z...... "Z" Brackets

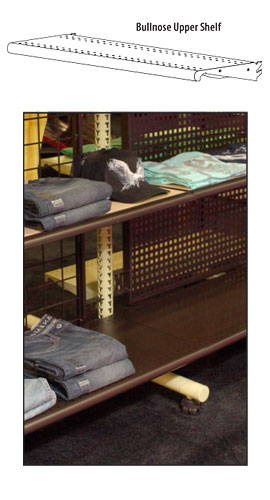

  Bullnose Upper Shelf

  • Same form, fit, and function of Standard Upper Shelf, allowing the use of front fence and dividers
  • Fits 1" OC slotting (25 mm)
  • Radius front measures 1 1/4" (32 mm) high
  • Maximum load capacities of Upper Shelf: 8" (203 mm) = 200 lbs 10" (254 mm) = 200 lbs
  • Capacity reduced by 30% when front half is loaded (see product safety pages on loading in General Information)
  • Load capacities based on evenly distributed static loading
  • For additional load capacities, see Base Load Levelers
  • Available in a variety of finishes

  Part Number: SUSBN(NW)(ND)

  • SUS......Standard Upper Shelf
  • BN......Bullnose
  • NW......Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
  • ND......Nominal Depth 8" or 10" (203 mm or 254 mm)



  Classic Pegboard Basket

  • Peg and Slatwall Wire Basket fits both standard pegboard or slatwall back panels
  • Basket height is 3 ¾" (95 mm)
  • Mounts to wood or metal slatwall
  • Load capacity 50 lbs

  Part Number: CBPSW-(NW)(ND)

  • CBPSW...... Classic Basket for Pegboard and Slatwall
  • NW......Nominal Width 24" (610 mm)
  • ND......Nominal Depth 10" or 12" (254 mm or 35 mm)

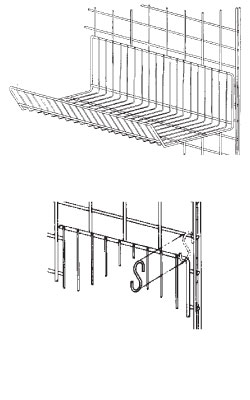

  Flat "S" Hooks

  • An inexpensive method to hang Open End Baskets from slotted upright
  • For medium-duty or heavy-duty applications
  • Standard finish: Chrome powder coat finish

  Part Number: AC125(OPT)PC008

  • AC125......Flat "S" Hooks
  • OPT......237=Medium-Duty 143=Heavy-Duty
  • PC008..... Chrome Powder Coat Finish



  Flush Front Upper Shelf

  • Smooth, dust-free edge ideal for merchandising without tag molding
  • Versatility of three positions: Flat, 15Ëš downslope, 30Ëš downslope
  • Load capacity, flat position: 6" (152 mm) to 10" (254 mm) depths = 200 lbs
  • Load capacities based on evenly distributed static loading

  Part Number: FFUS-(NW)(ND)

  • FFUS......Flush Front Upper Shelf
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
  • ND......Nominal Depth 8" to 10" in 2" increments (152 mm to 254 mm in 51 mm increments)

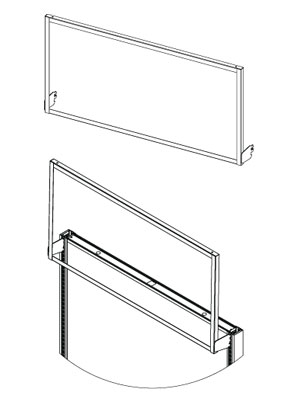

  Gondola Header Sign, Basic Upright Mounted

  • Customer-supplied signage dimensions: 36"W x 24"H = 35.438"W x 23.812"H (914 mm x 610 = 900 mm x 605 mm) 48"W x 24"H = 47.738"W x 23.812"H (1219 mm x 610 = 1213 mm x 605 mm)
  • Thickness: 1/4" (6 mm)

  Part Number: GHSHABUM(NW)(NH)

  • GHSHA......Gondola Header Sign Holder Angled
  • BUM.....Basic Upright Mount
  • NW.....Nominal Width 36" or 48" (914 mm or 1219 mm)
  • NH.....Nominal Height 6" to 36" in 1" increments (152 mm to 914 mm in 25 mm increments)

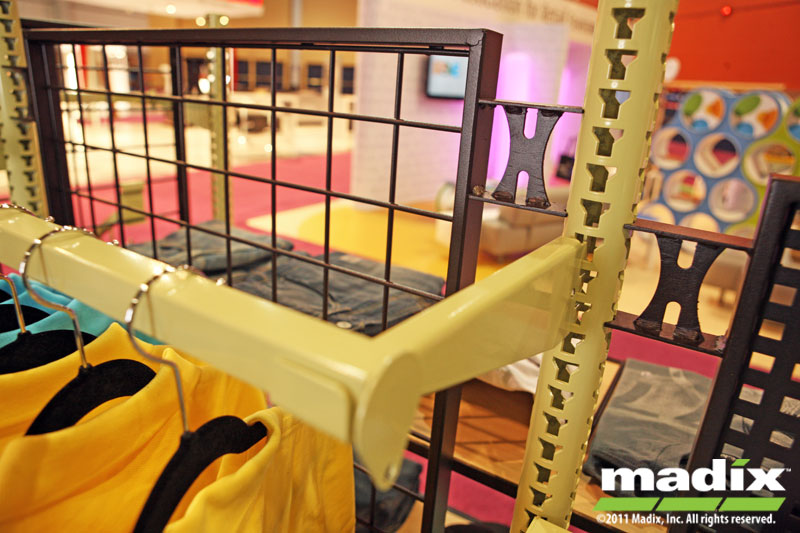

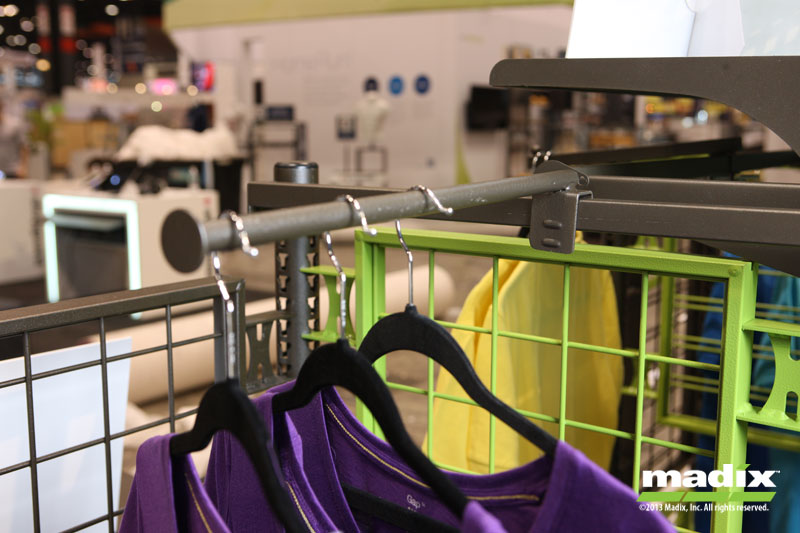

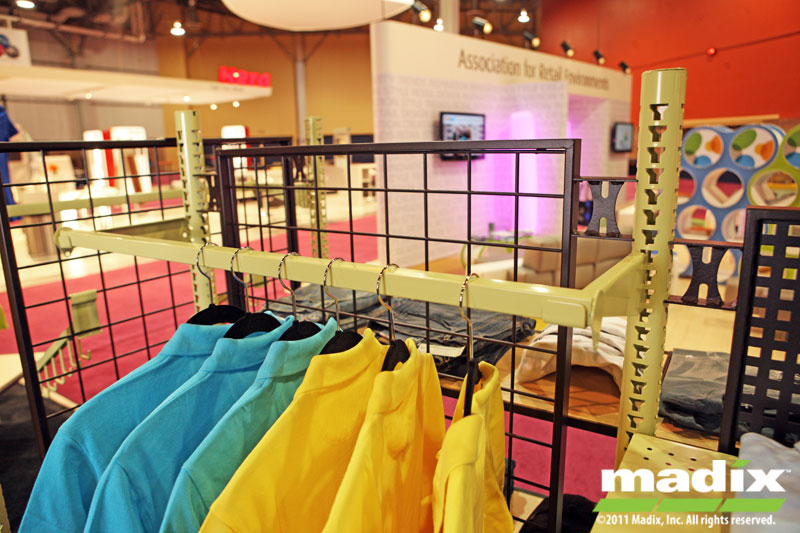

  Hang Rod

  • Chrome Plated (standard)
  • Painted Available

  Part Number: HR-(NW)

  • HR......Hang Rod
  • NW......Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)



  Hang Rod Bracket

  • Painted

  Part Number: HRB-(ND)

  • HR......Hang Rod Bracket
  • ND......Nominal Depth 4" to 30" in 2" increments (102 mm to 762 mm in 51 mm increments)



  Loose OEB Brackets

  • Secures perimeter frame wire to slotted upright
  • Easily attach to front or back of Open End Basket [BS01(ND)(NW)]

  Part Number: AC1230(TYPE)(HAND)(FIN1)

  • AC1230...... Loose OEB Brackets
  • TYPE......57=2" 44=2 1/2" 43=1 Tab
  • Hand......L=Left R=Right

  Finish

  • FIN1..... PC008=Chrome Powder Coat Finish PC059=Satin Black PC811=Cream PC812=Dove Gray PC829=White



  Lumishelf™ Radius LED Shelf Assembly

  • Radius Lumishelfâ„¢ Surface and Frame has an overall depth of LSSRA that is the nominal depth plus 6" (152 mm) Example: LSSRA-3614 would have actual depth of 20" (508 mm)
  • Load capacity 100 lbs

  Part Number: LSSRA(NW)(ND)-(OPT)

  • LSSRA......Radius Lumishelfâ„¢ Surface with RGSFF Frame Assembly
  • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
  • ND......Nominal Depth 14", 16", or 18" (356 mm, 406 mm or 457 mm)

  Options

  • OPT......Blank= No Reflector R=Optional Reflector



  Open End Basket Divider

  • Enhance your OEBs with orderly compartments using 6-Way Locking OEB Dividers
  • Locks securely into place
  • Easily repositioned
  • Create custom sized compartments by using dividers at any location along basket
  • Increase basket strength and load capacity using at least three dividers per basket, one in center and one on each end
  • Standard finishes: Satin Black, Cream, Dove Gray, White or Powder Chrome

  Part Number: DV02(ND)(NH)

  • DV02...... OEB Divider
  • ND.....Nominal Depth 09", 12" to 24" in 2" increments (229 mm, 305 mm to 610 mm in 51 mm increments)
  • NH.....Nominal Height 9" (229 mm)

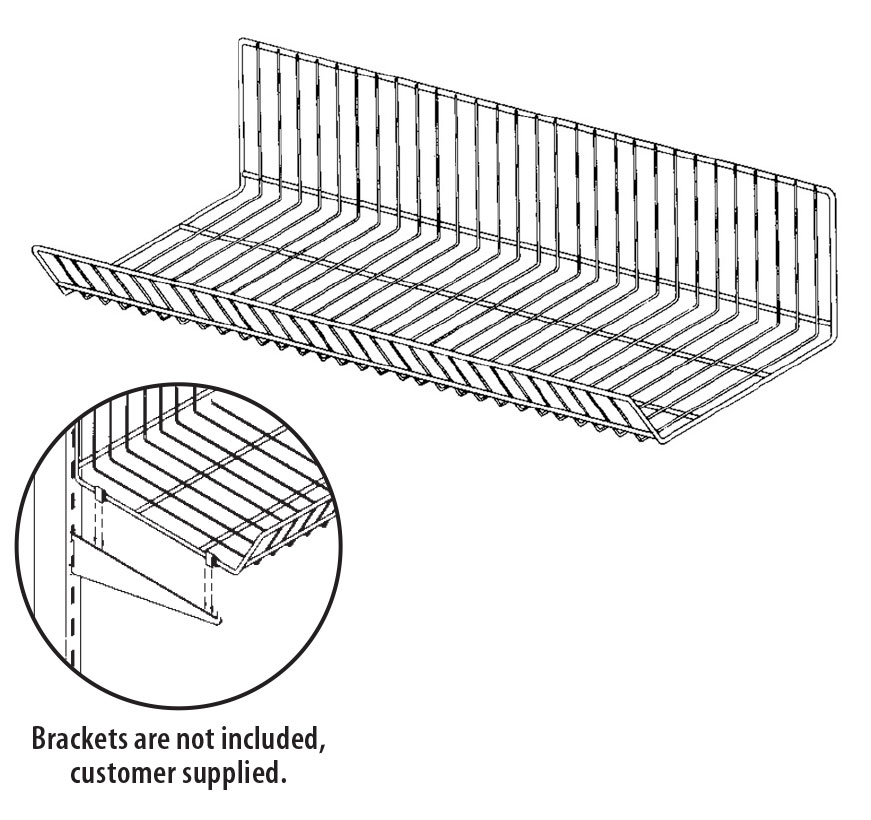

  Open End Baskets

  • Designed to be flexible, OEBs can be configured two ways for strong, neat displays that clean easily, do not collect dust, and increase accessibility to merchandise
  • Reversible mounting for maximum display flexibility
  • Mounted from the back, baskets rest flat to create a neat wall of merchandise
  • Mounted from the front, baskets hang at 30Ëš downslant, creating a "gravity feed" configuration
  • Recommended using minimum of three dividers for added support
  • Load capacity 75 lbs for OEBs up to 16" W (406 mm)
  • Standard finishes: Satin Black, Cream, Dove Gray, White, or Powder Chrome

  Part Number: BS01(ND)(NW)

  • BS01...... Open End Basket
  • ND......Nominal Depth 09" (229 mm) [Actual 11" (279 mm)]
  • NW......Nominal Width 24", 30", 36", or 48" (610 mm, 762 mm, 914 mm, or 1219 mm)



  Peg Basket

  • Versatile basket for small impulse items
  • Dimensions: 3 3/4"H x 6 3/4"D x 8 1/4"W (95 mm x 171 mm x 210 mm)
  • Mounts to wood or metal slatwall
  • Load capacity 2 lbs

  Part Number: PEGB

  • PEGB......Peg Basket



  Peg Hook-Single Prong

  • For 1/4" (6 mm) perforations
  • Four gauge
  • .212 diameter wire
  • Chrome Plated

  Part Number: PH(NL)-PACK

  • PH......Peg Hook
  • NL......Nominal Length 4" to 12" in 2" increments (102 mm to 305 mm in 51 mm increments)
  • PACK...... Pack Size : 1=1 12=12 500=500 1000=1,000



  Pegboard Hooks

  • Suspends OEBs from pegboard
  • Suited for light-duty to medium-duty applications
  • Two or three required per basket
  • Standard finish: Chrome powder coat finish

  Part Number: ACPH123268-P-PC008

  • AC123268........Pegboard Hooks
  • P......Painted
  • PC008......Chrome Powder Coat Finish



  Scanner Peg Hook

  • For 1/4" (6 mm) perforations
  • Heavy-duty, .186 diameter wire
  • Extra Heavy-duty, .212 diameter wire
  • Chrome Plated

  Part Number: SPH(TYPE)-(NL)-10

  • SPH......Scanner Peg Hook
  • TYPE......HD=Heavy-Duty XHD=Extra Heavy-Duty
  • NL......Nominal Length 4" to 12" in 2" increments (102 mm to 305 mm in 51 mm increments)
  • 10......10 Pack



  Shelf Extender Basket Displayer

  • Mounts to perforations of Standard Upper Shelves, allowing additional merchandising space
  • 10"W x 10"H x 3"D (254 mm x 254 mm x 3 mm)
  • Front lip accommodates 1"H (25 mm) integrated tag molding and accepts pricing or signage

  Part Number: SEBD

  • SEBD......Shelf Extender Basket Displayer



  Shelf Retainer

  • Sturdy metal angle provides retaining lip for merchandise
  • Ideal for use when shelf is in 15Ëš downslope position
  • Mounting hardware included

  Part Number: SR-(NW)-(NH)-10

  • SR......Shelf Retainer
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
  • NH......Blank=1" (22 mm) 2=2" (51 mm) 3=3" (76 mm) 4=4" (102 mm)
  • 10......10 Pack



  Slatwall Brackets

  • Mount directly to slatwall or slatgrid
  • Provides heavy-duty hook from which Open End Baskets hang
  • Use two or three per basket

  Part Number: AC999SWB(FIN1)

  • AC999SWB......Slatwall Brackets

  Finish

  • FIN1..... PC008=Chrome Powder Coat Finish PC059=Satin Black PC811=Cream PC812=Dove Gray PC829=White

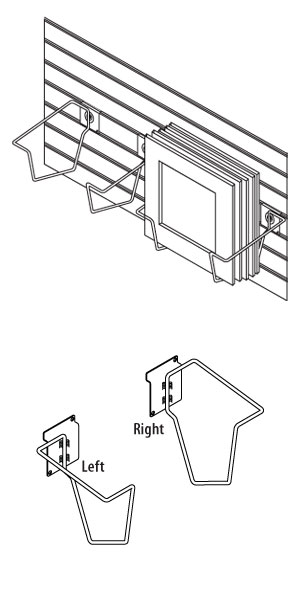

  Slatwall Frame Display

  • Fits into wooden or metal slatwall
  • Ships as a pair, left- and right-hand
  • Can be adjusted to match width of product
  • Load Capacity 40 lbs per pair

  Part Number: FAB(SIZE)

  • FAB......Framed Art Bracket
  • SIZE......S=Small 7" (178 mm) L=Large 10" (254 mm)

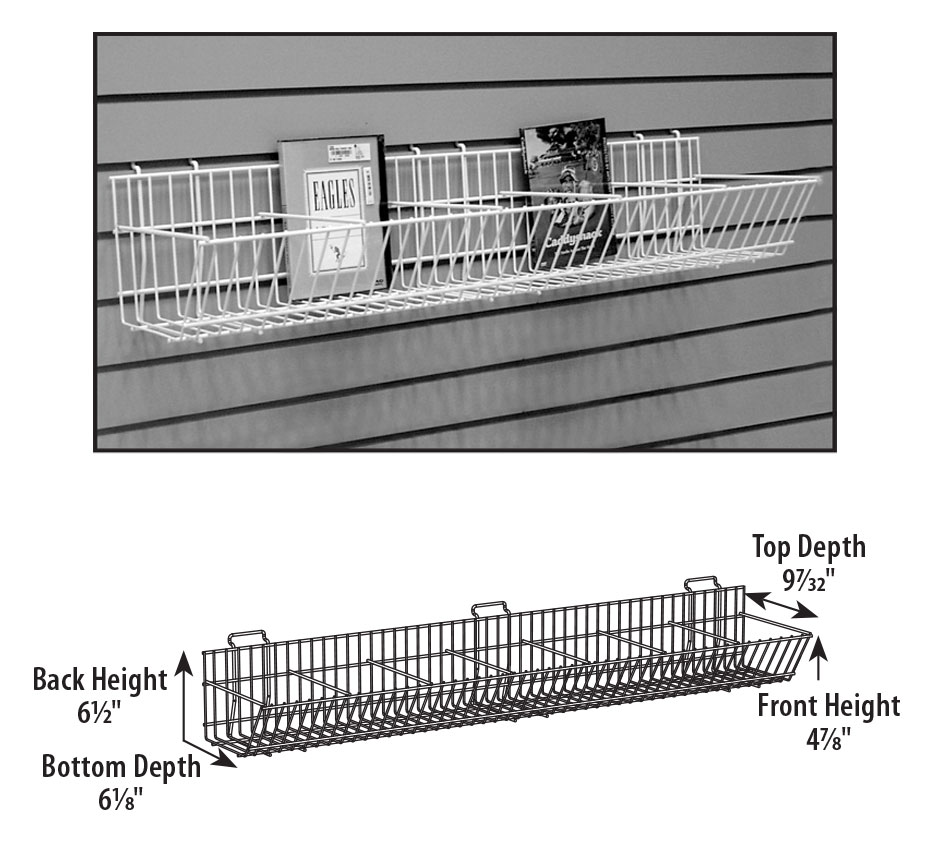

  Slatwall Mount Wire DVD Shelf

  • For use in standard Maxi Line shelving sections that use Slatwall Back Panels
  • Brackets are designed to give approximately 10Ëš (254 mm) uptilt to shelf
  • Load capacity is 25 lbs

  Part Number: SMWDVDS-(NW)

  • SMWDVDS.....Slatwall Mount Wire DVD Shelf
  • NW.....Nominal Width 24", 36", 48" (610 mm, 914 mm, 1219 mm)

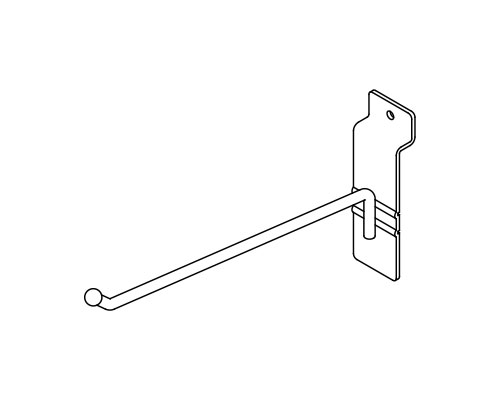

  Slatwall Peg Hook

  • .224 diameter wire
  • Galvanized
  • Ball end

  Part Number: SWPH-(NL)-(PACK)

  • SWPH......Slatwall Peg Hook
  • NL......Nominal Length 04" to 12" in 2" increments (102 mm to 305 mm in 51 mm increments)
  • PACK......Pack Size : Blank=1 10=10

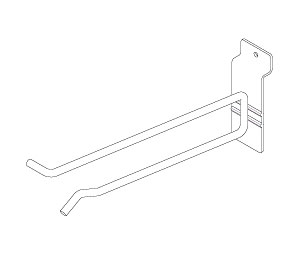

  Slatwall Scanner Hook

  • .212 diameter wire
  • Chrome Plated

  Part Number: SWLHSH-(NL)-(PACK)

  • SWLHSH.....Slatwall Scanner Hook
  • NL......Nominal Length 04" to 12" in 2" increments (102 mm to 305 mm in 51 mm increments)
  • PACK......Pack Size: 1=1 10=10



  Standard Upper Shelf with Radius Front

  • Gradual outward curve 6" (152 mm) greater than depth of brackets at curve vertex
  • Available in Regular-Duty or Heavy-Duty
  • Laminate finish available

  Part Number: SUSRF(TYPE)-(NW)(ND)

  • SUS=Upper Shelf
  • RF......Radius Front
  • TYPE......Blank=Regular-Duty HD=Heavy-Duty
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
  • ND......Nominal Depth 12" to 30" in 2" increments (305 mm to 787 mm in 51 mm increments)



  Standard Upper with Multi Radius Concave Front

  • Draws customers’ attention to merchandise
  • Gradual inward curve 2" or 3" (51 mm or 76 mm) less than depth of brackets at curved vertex
  • Standard DGA2 Tag Molding built into each shelf available in satin, gold, or customer’s choice of finish
  • Patented

  Part Number: SUSMRFC(NW)(ND)-(ID)

  • SUS......Standard Upper Shelf
  • MRFC......Multi Radius Concave Front
  • NW......Nominal Width 24", 36" or 48" (610 mm, 914 mm or 1219 mm)
  • ND......Nominal Depth 10" to 24" in 2" increments (254 mm to 610 mm in 51 mm increments)
  • ID......Inversion Depth 2" or 3" (51 mm or 76 mm)



  Thin Profile Shelf, Light-Duty

  • Madix’s thinnest profile shelf
  • Slimness of shelf allows additional row of shelves
  • Angled tag molding creates attractive pricing display
  • No pushers required to display merchandise
  • Ideal for tightly-spaced and lightweight merchandise

  Part Number: PLSTTSLD(NW)(ND)

  • PLSTTS......Thin Profile Shelf
  • LD......Light-Duty
  • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
  • ND......Nominal Depth 10" to 20" in 2" increments (254 mm to 610 mm in 51 mm increments)

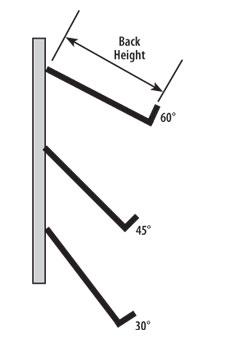

  Uptilt Shelf

  • Shelf back available in 10" (254 mm)
  • 4" (102 mm) shelf depth only

  Part Number: UTSN(DEGREE)-(NW)-(NH)4

  • UTSN......Uptilt Shelf
  • DEGREE......30 degrees, 45 degrees, or 60 degrees Tilt
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
  • NH.....Nominal Back Height 10" (254 mm)
  • 4.....Shelf Depth 4" (102 mm)



  Uptilt Shelf

  • 7° uptilt
  • "Straight-in" insertion two tab brackets
  • 8"H (203 mm) welded book back for rapid installation
  • Accepts Wire Dividers (BKSD) and End Panels (BKSBEP) both sold separately

  Part Number: UTSBKSB(NW)(ND)-08-7

  • UTS......Uptilt Shelf
  • BKSB......Bookshelf Back
  • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
  • ND......Nominal Depth 8" to 16" in 2" increments (203 mm to 406 mm in 51 mm increments)
  • 08......Nominal Back Height 8" (203 mm)
  • 7...... 7° Uptilt



  Utility Baskets for Wire Grid Mount

  • Use with wire grid, pegboard, or shelves
  • 1 1/4" (32 mm) tag molding affords space for pricing information
  • 18 1/4"W x 3 3/4"H x 31 5/16"D (464 mm x 95 mm x 100 mm)
  • Load capacity is 25 lbs

  Part Number: WUB-(NW)(ND)(NH)-(TYPE)

  • WUB......Wire Utility Basket
  • NW......18" Width (457 mm)
  • ND......04" Depth (102 mm)
  • NH......04" Height (102 mm)
  • TYPE.....Mount Type: WG=Wire Grid

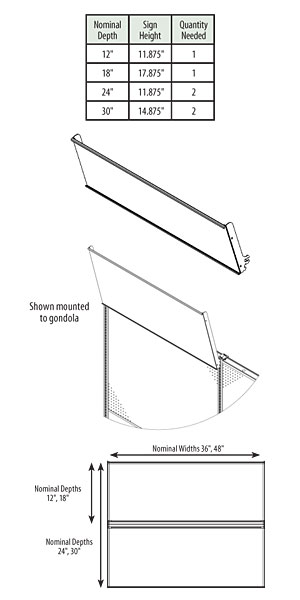

  Wing Shelf Sign Holder, 3 Position

  • 15°, 30° and 45° angles
  • Customer-supplied signage dimensions– Widths: 36" (914 mm) or 48" (1219 mm) Heights: please refer to chart Thickness: 1/4" (6 mm)

  Part Number: WSSH3P-(NW)(ND)

  • WSSH......Wing Shelf Sign Holder
  • 3P......Three Position
  • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
  • ND......Nominal Depth 12", 18", 24", 30" (305 mm, 457 mm, 610 mm, 762 mm)



  Wire Binning Cross Divider

  Part Number: MC-(NH)(NW)-10-(OPT)

  • MC...... Cross Divider
  • NH......Nominal Height 3" (76 mm)
  • NW......Nominal Width 6" to 12" in 2" increments (152 mm to 305 mm in 51 mm increments)
  • 10......10 Pack

  Options

  • OPT...... Blank=Chrome P=Painted



  Wire Binning Divider

  Part Number: PMD-(NH)(ND)-1-(OPT)

  • PMD......Divider
  • NH......Nominal Height 3" or 6" (76 mm or 152 mm)
  • ND......Nominal Depth 08" or 10" (203 mm or 254 mm)
  • 1......Single Pack

  Options

  • OPT...... Blank=Chrome P=Painted



  Wire Binning Front

  Part Number: PMF-(NH)(NW)-1-(OPT)

  • PMF...... Front
  • NH......Nominal Height 3" or 6" (76 mm or 152 mm)
  • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
  • 1...... Single

  Options

  • OPT...... Blank=Chrome P=Painted

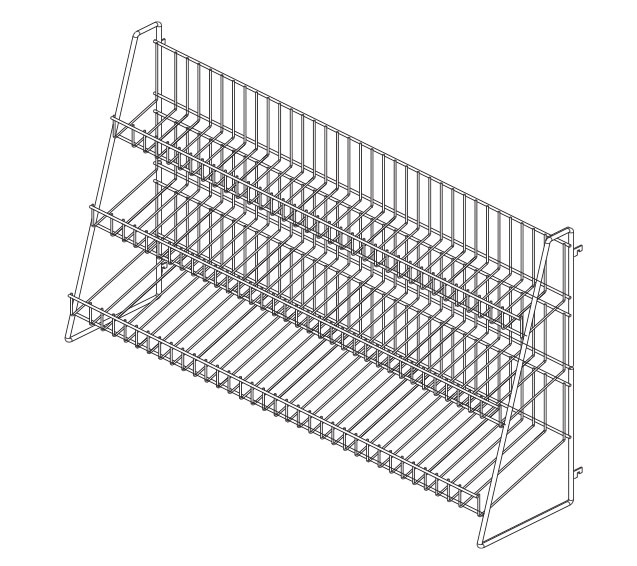

  Wire Candy Rack

  • Display small boxes of candy, cookies and other snack items
  • May be used on either a Base Shelf or Upper Shelf
  • 36" or 48"W x 24"H x 8"D (914 mm or 1219 mm)
  • 1" (25 mm) OC wire spacing

  Part Number: WCANR-(NW)

  • WCANR.....Wire Candy Rack
  • NW.....Nominal Width 36" or 48" (914 mm or 1219 mm)



  Wire Candy Shelf

  • Used for lightweight merchandising
  • Two position brackets, flat or 15Ëš down, and a 2" (51 mm) high front lip allows various product presentations
  • Wires are spaced 1 1/2" (38 mm) OC
  • Optional tag molding accepts 1 1/4" (32 mm) tags
  • Load capacity 30 lbs

  Part Number: WCANS(NW)(ND)-TAG

  • WCANS...... Wire Candy Shelf
  • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
  • ND......Nominal Depth 06" to 10" in 2" increments (152 mm to 254 mm in 51 mm increments)
  • TAG...... Tag Mold Option: DGA2A=Aluminum DGA2G=Gold DGA2P=Painted



  Wire Grid Brochure Holder

  • Holder measures 3 1/2" deep (89 mm)
  • Available in 4", 6", and 8 1/2" widths (102 mm, 152 mm, and 216 mm)

  Part Number: WBH-(NL)-WG

  • WBH......Wire Brochure Holder
  • NL......Nominal Length 04=4" (102 mm) 06=6" (152 mm) 85=8 1/2" (216 mm)
  • WG...... Wire Grid



  Wire Grid Peg Hook

  • .224 diameter wire
  • Chrome Plated

  Part Number: WGPH-(NL)-(PACK)

  • WGPH...... Wire Grid Peg Hook
  • NL......Nominal Length 4" to 12" in 2" increments (102 mm to 305 mm in 51 mm increments)
  • PACK...... Pack Size : 10=10



  Wire Grid Scanner Hook

  • .212 diameter wire
  • Chrome Plated

  Part Number: RGS-(NL)-(PACK)

  • RGS......Wire Grid Scanner Hook
  • NL......Nominal Length 4" to 12" in 2" increments (102 mm to 305 mm in 51 mm increments)
  • PACK...... Pack Size: 50=50 100=100



  Wire S Hooks

  • An inexpensive method to hang Open End Baskets from grid
  • Suited for medium-duty applications
  • Use two or three per basket
  • Standard finish: Chrome powder coat finish

  Part Number: ACPH123265

  • ACPH123265........Wire "S" Hooks



  Wire Snack Shelf

  • For lightweight merchandising of items
  • Optional tag molding accepts 1 1/4" (32 mm) tags
  • Available in 0° or 15° downtilt
  • Load capacity 30 lbs

  Part Number: WCANSSW(NL)(ND)-(OPT)

  • WCANS...... Wire Candy Snack Shelf
  • SW...... Slatwall
  • NL......Nominal Length 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
  • ND......Nominal Depth 08" or 10" (203 mm or 254 mm)

  Options

  • OPT...... Degree Option: Blank=0° 15=15°



  Wire Video Shelf

  • Lightweight but rigid, uniquely designed shelf uses hooks instead of brackets
  • Back is 7"H x 5"D (178 mm x 127 mm)
  • 15Ëš upslope for product retention

  Part Number: MWVSG(NW)

  • MWVSG...... Maxi Wire Video Shelf for Gondola
  • NW......Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
