VESTA®Illuminated Display Solution

  • VESTA®

    Illuminated Display Solution

    View Complete Specialty Catalog »

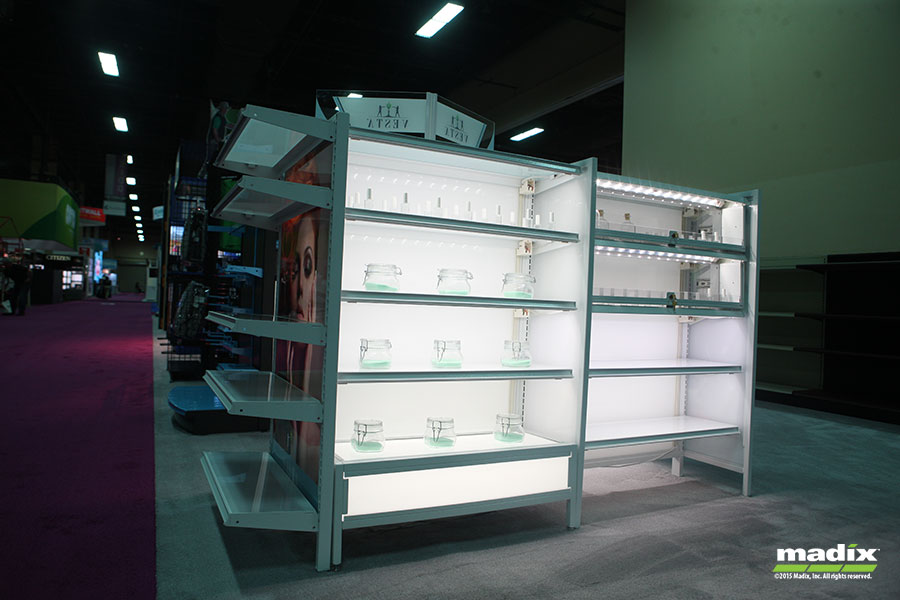

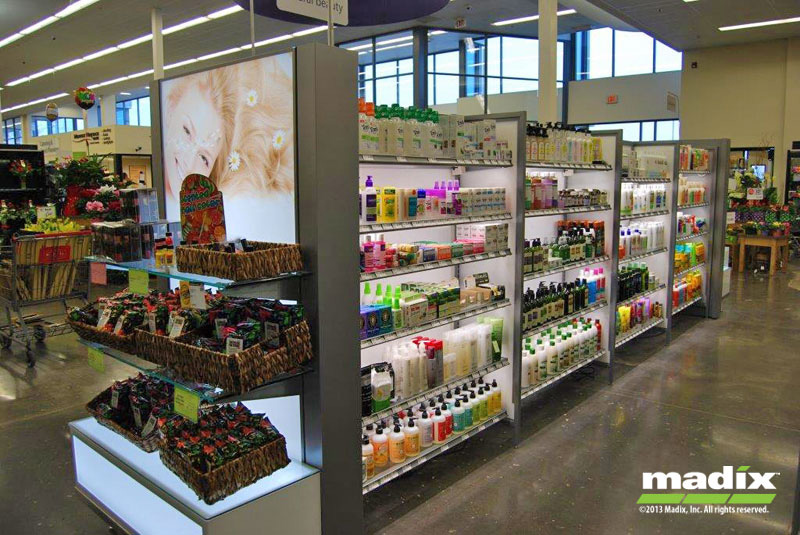

    Madix's new Vesta® Aisle and Wall Fixture draws attention to merchandise with its custom appearance and sleek design. Vesta is designed to produce optimal results by allowing fixture lighting to fully illuminate the fixture. Utilize Madix's LEDge Lights to highlight key shelves within a run or light up the entire display. Wood and metal shelves are also available to create even more unique combinations. The shelf positions can easily be vertically adjusted in 1" (25mm) increments. Each section in the fixture can be separated using acrylic or metal panels. Create an impactful display with the Vesta® Aisle and Wall Fixture.

    • Optimal solution to highlight cosmetics and electronics.

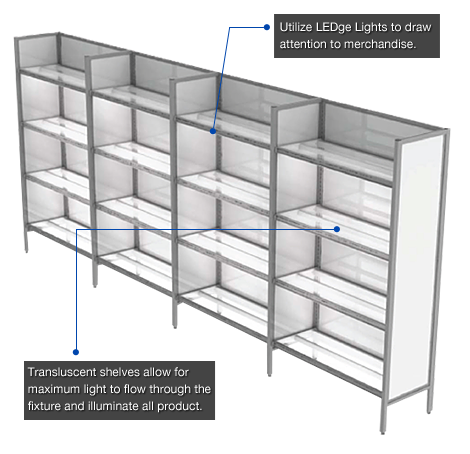

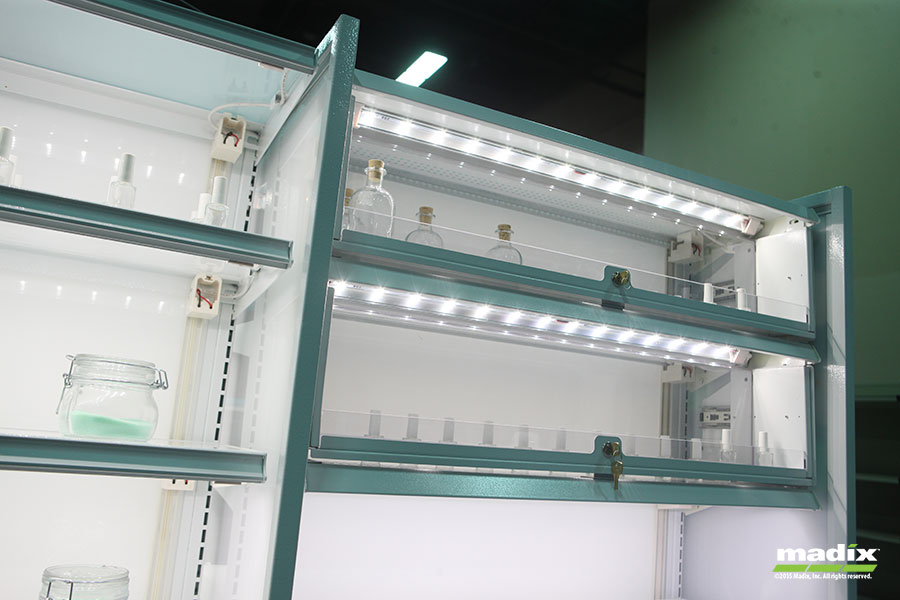

    • Utilize LEDge Lights to create an illuminated product display.
    • In-store marketing solution.
    • Perfect for aisle or perimeter display.
    • Solution for many market segments including electronics and health and beauty.

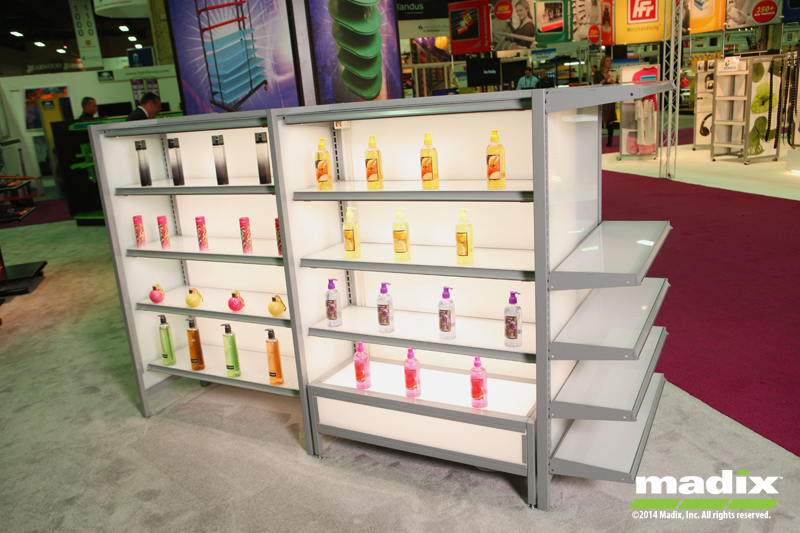

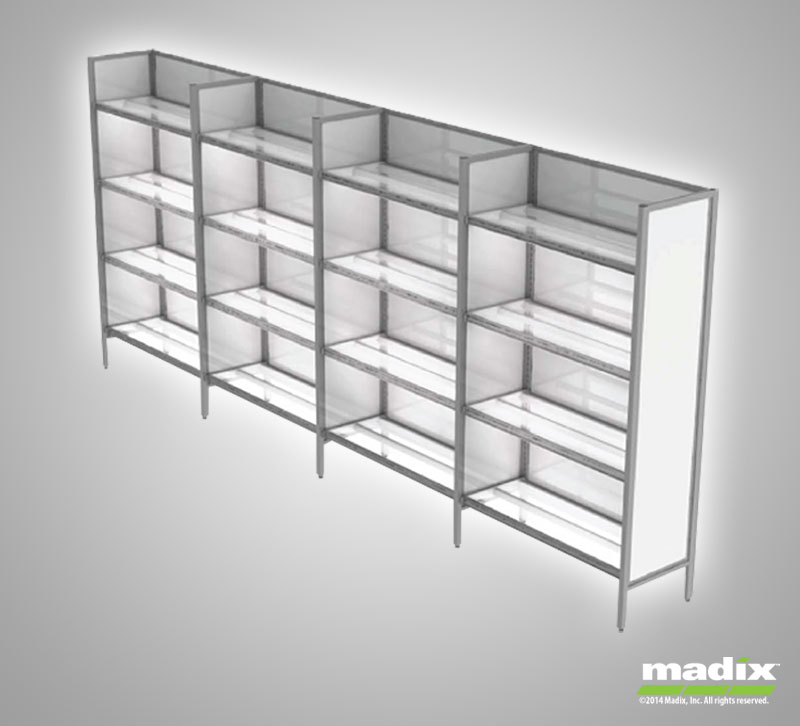

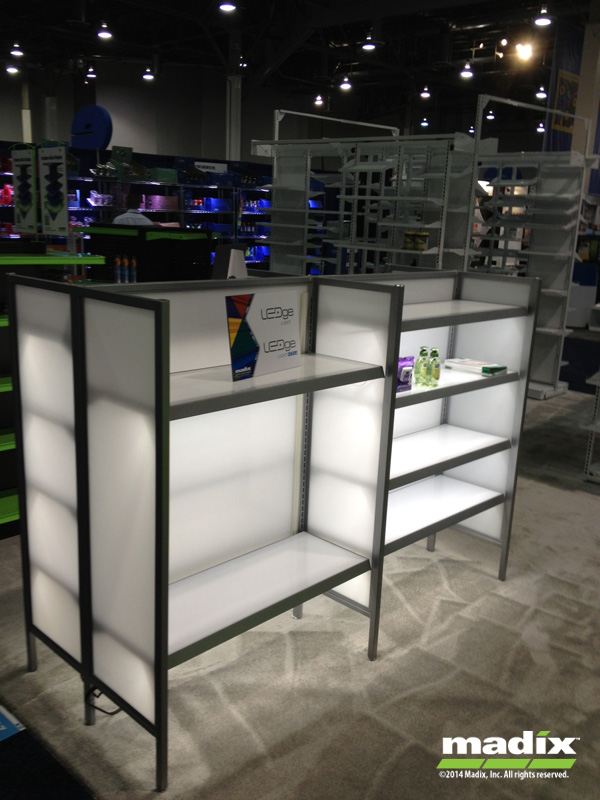

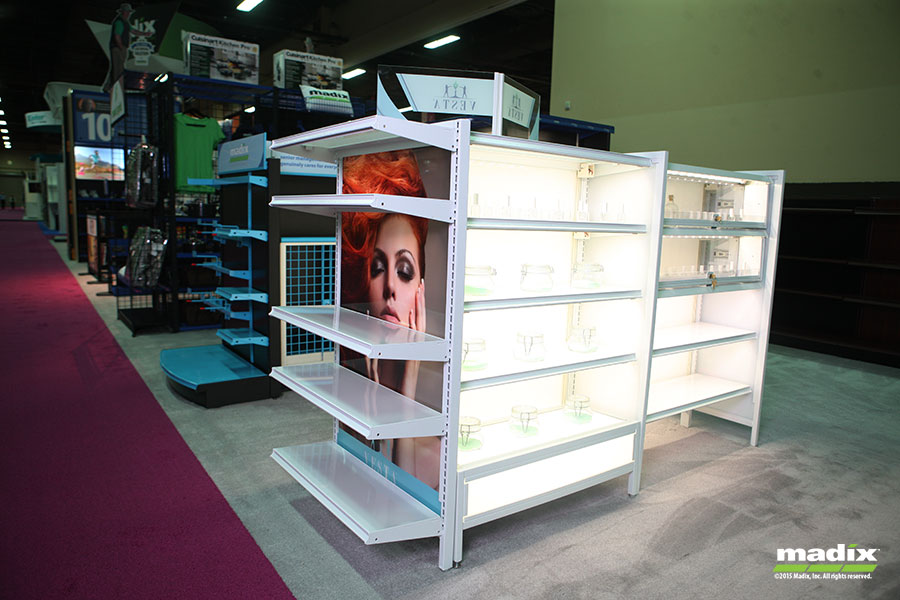

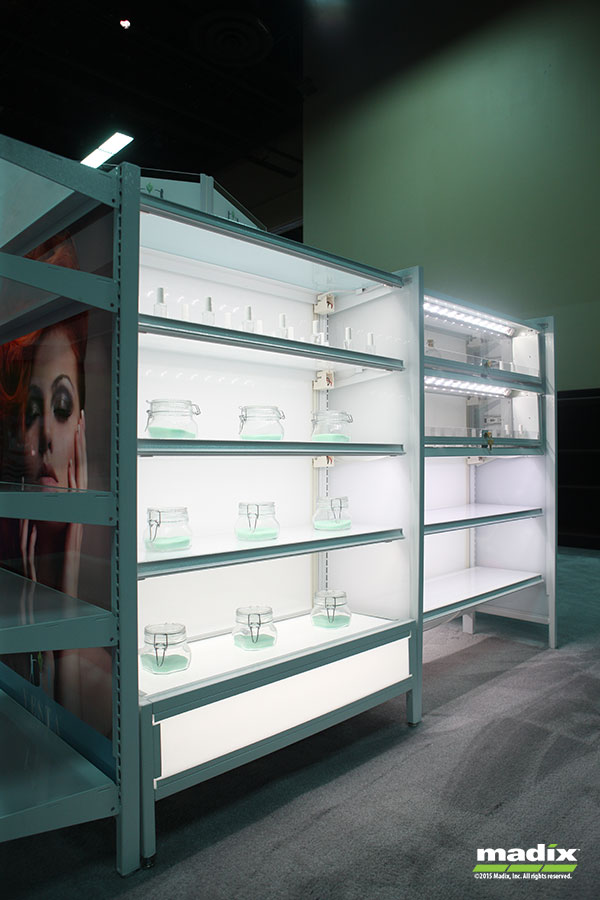

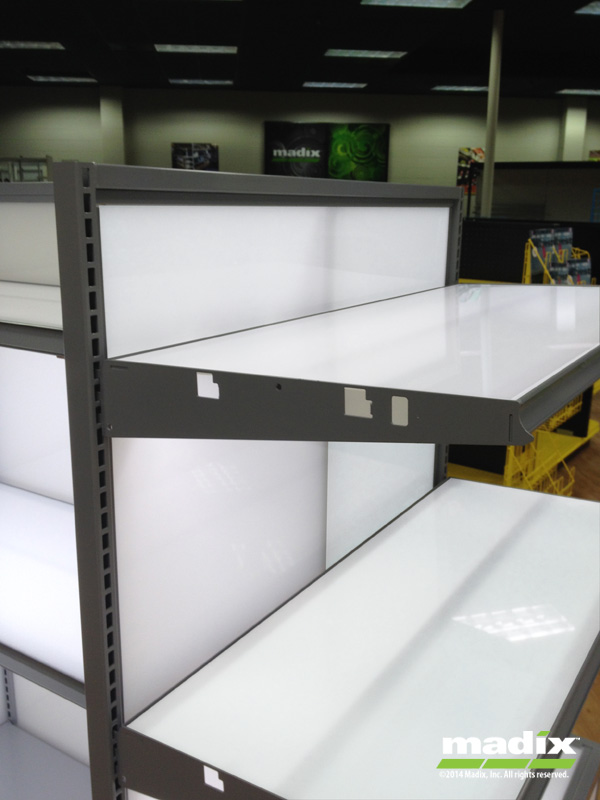

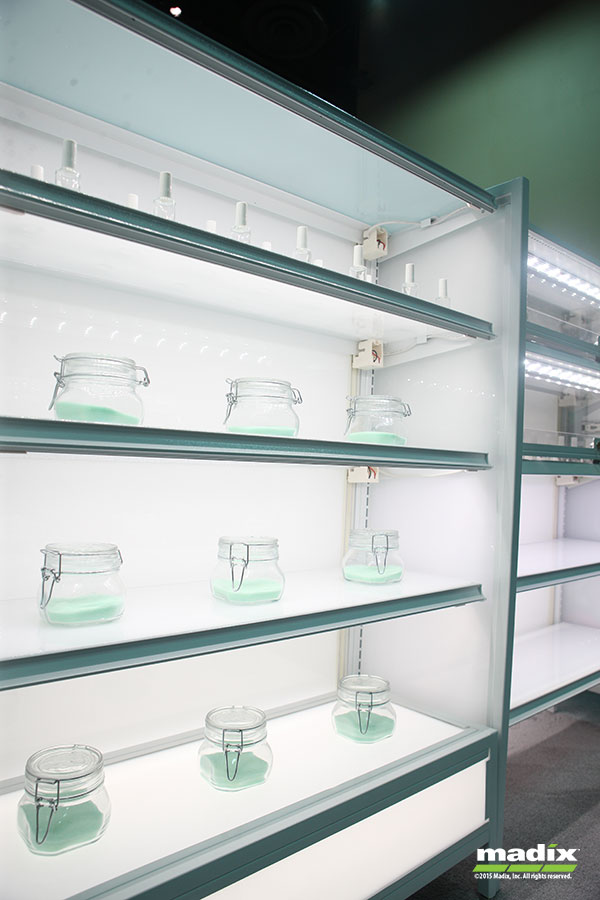

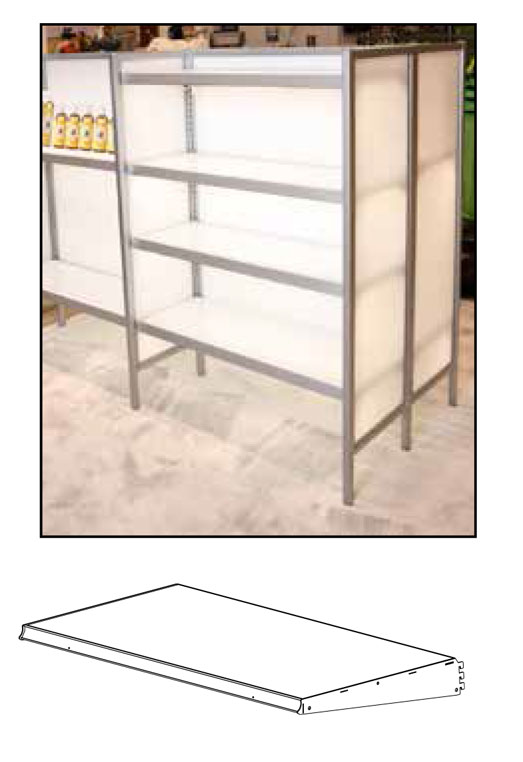

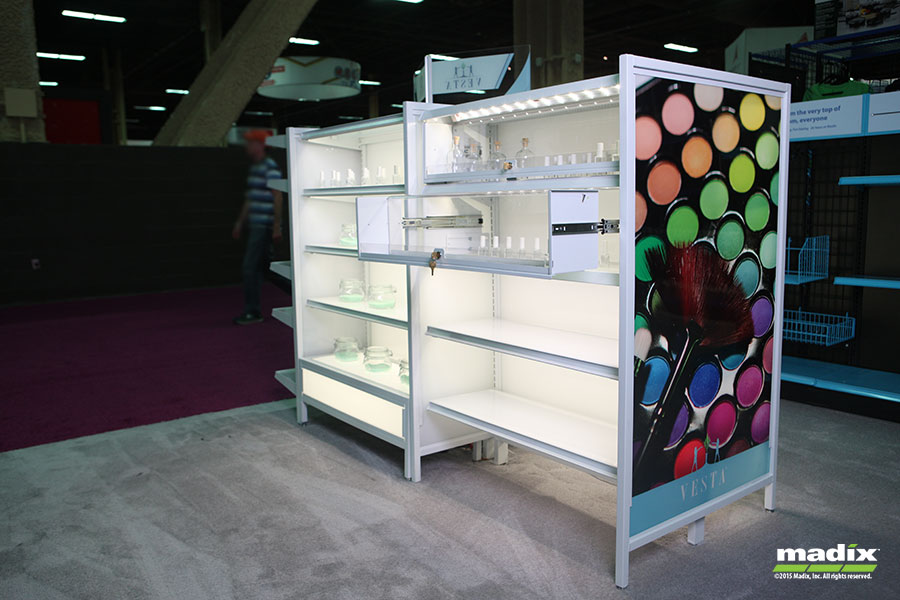

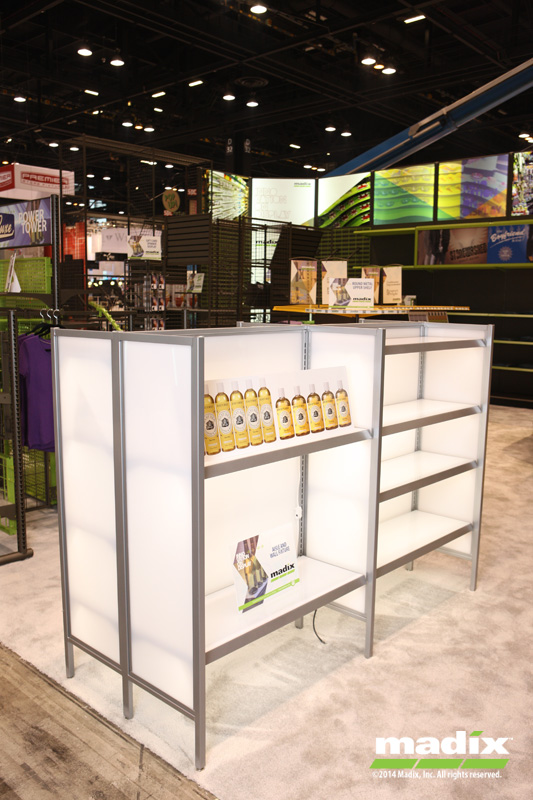

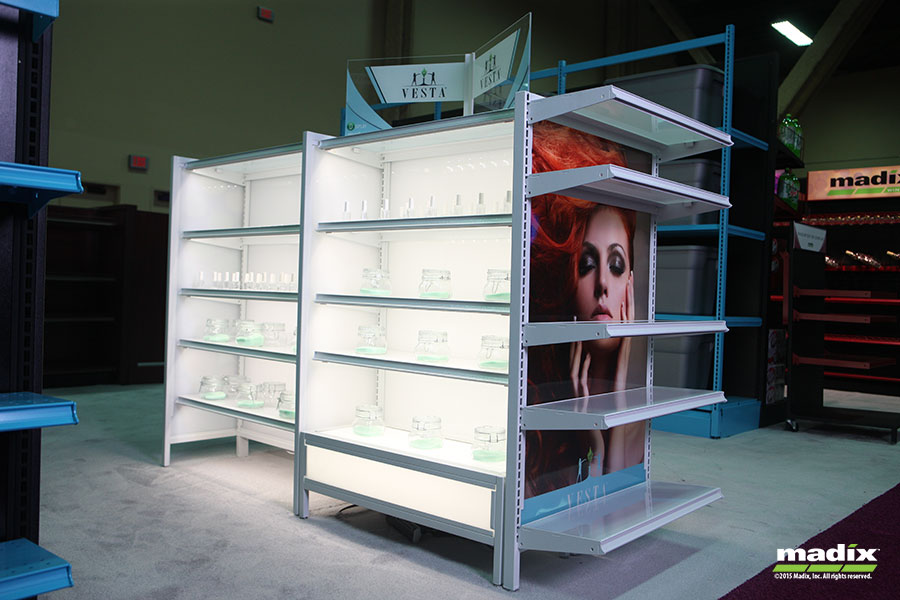

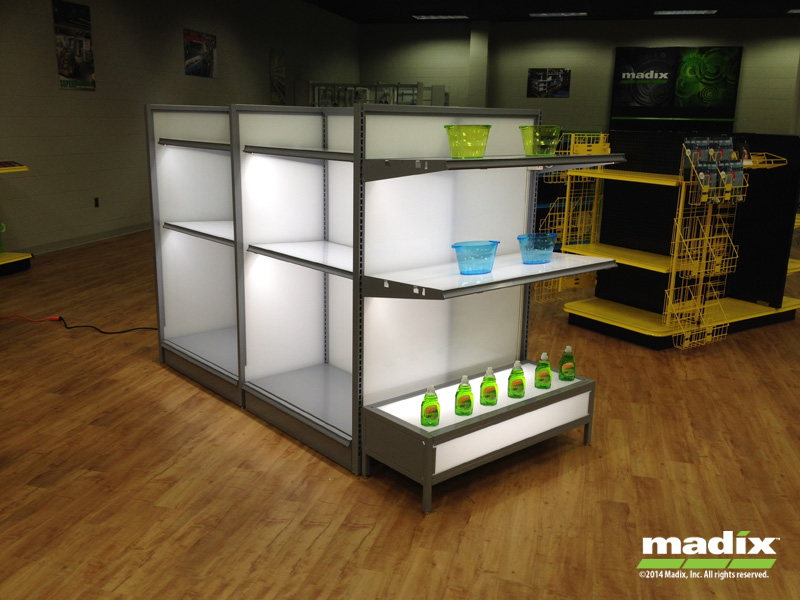

    Vesta Aisle and Wall Fixture

  • Video

    Gallery

  • Components for VESTA®

    Reveal/Hide Components

     LEDge Light Cable Clamp

    • Use to cleanly route cables
    • Clear nylon with adhesive back
    • 3/8" (10 mm) capacity
    • 25 pieces per pack
    Part Number: LLCC38-25
    • LLCC..... LEDge Light Cable Clamp
    • 38..... 3/8" (10 mm) capacity
    • 25..... 25 pieces
    LLCC38-25-LEDge Light Cable Clamp

     LEDge Light Cat 5 Cable

    • Used to connect Motion Sensor to Dimming Controller
    Part Number: LLC5C-(NL)
    • LLC5C......LEDge Light Cat 5 Cable
    • NL......Nominal Length 3', 15', 25', 50' (914 mm, 4572 mm, 7620 mm, 15,240 mm)
    LLC5C-(NL)-LEDge Light Cat 5 Cable

     LEDge Light Cat 5 Coupler

      Part Number: LLC5CP
      • LLC5CP......LEDge Light Cat 5 Coupler
      LLC5CP-LEDge Light Cat 5 Coupler

       LEDge Light Cat 5 Y-Splitter

        Part Number: LLC5YS
        • LLC5YS......LEDge Light Cat 5 Y-Splitter
        LLC5YS-LEDge Light Cat 5 Y-Splitter

         LEDge Light Dimming Controller

          Part Number: LLDC
          • LLDC..... LEDge Light Dimming Controller
          LLDC-LEDge Light Dimming Controller

           LEDge Light Dimming Controller Add-On Kit

          • Order this kit to control additional power supplies (one kit per power supply)
          • Contains one dimming controller, cables and connectors to add one power supply
          • "Plug ‘n play" connections– no electrician required
          • White color
          • Not compatible with Lumiback or Lumishelfâ„¢
          Part Number: LLDCA
          • LLDCA..... LEDge Light Dimming Controller Add-On Kit
          LLDCA-LEDge Light Dimming Controller Add-On Kit

           LEDge Light Dimming Controller Starter Kit

          • Controls single 100W power supply
          • Kit contains one dimming controller, two infrared sensors, cables and connectors for use in up to a 24' (7315 mm) run (longer runs require Sensor Add-On Kit– see below)
          • Sensor detection range is 14' (4267 mm) diameter
          • Specify sensor mounts for slotted upright (B) or shelf (S)
          • Plug ‘n play connections– no electrician required
          • White color
          • Not compatible with Lumiback or Lumishelfâ„¢
          Part Number: LLDCS-(TYPE)
          • LLDCS..... LEDge Light Dimming Controller Starter Kit
          • TYPE..... Sensor Mount Type: B=Slotted Upright S=Shelf
          LLDCS-(TYPE)-LEDge Light Dimming Controller Starter Kit

           LEDge Light Harness Assembly

          • Harness Assembly is used to connect up to 6 LEDge Lights to a single 100W power supply
          • Up to 12 lights may be connected to a single Harness Assembly by using 2 power supplies
          • Harness plugs directly into power supply
          • Jumper Cables required to connect LEDge Lights to Harness Assembly
          • 6 modules, 12.25" (311 mm) OC with 72" (1829 mm) leads for each power supply connection
          • Screw tab on each connecting module allows fastening to a perforated back panel via push rivets or to other surfaces with screws (not included)
          • White color
          Part Number: LLHA
          • LLHA..... LEDge Light Harness Assembly
          LLHA-LEDge Light Harness Assembly

           LEDge Light Jumper Cable

          • Required to connect LEDge Lights to Harness Assembly and adjacent lights in daisy-chain applications
          • Male connectors at each end
          • White color
          Part Number: LLJ(NL)
          • LLJ..... LEDge Light Jumper Cable
          • NL.....Nominal Length 6", 18", 30", 72", 144" (152 mm, 457 mm, 762 mm, 1829 mm or 3658 mm)
          LLJ(NL)-LEDge Light Jumper Cable

           LEDge Light Motion Sensor

          • 60" (1524 mm) cord
          Part Number: LLMS
          • LLMS..... LEDge Light Motion Sensor
          LLMS-LEDge Light Motion Sensor

           LEDge Light Motion Sensor Add-On Kit

          • Order this kit where additional sensors are required in system [at center of any run that exceeds 24' (7315 mm)]
          • Kit adds a single sensor to Starter Kit above
          • Contains one infrared sensor, cables and connectors to add 12' (3648 mm) to run
          • Specify sensor mounts for slotted upright (B) or shelf (S)
          • "Plug ‘n play" connections– no electrician required
          • White color
          • Not compatible with Lumiback or Lumishelfâ„¢
          Part Number: LLMSA-(TYPE)
          • LLMSA..... LEDge Light Motion Sensor Add-On Kit
          • TYPE..... Sensor Mount Type: B=Slotted Upright S=Shelf
          LLMSA-(TYPE)-LEDge Light Motion Sensor Add-On Kit

           LEDge Light Power Supply

          • UL Listed 100W power supply features nearly 90% efficiency through use of latest circuitry design
          • 120V standard plug - no electrician required
          • Maximum of 16 power supplies per 20 amp circuit
          • Not compatible with Lumiback or Lumishelf™
          • Uses 1 amp at 120V
          • Female connector
          Part Number: LLPS
          • LLPS..... LEDge Light Power Supply
          LLPS-LEDge Light Power Supply

           LEDge Light Sensor Mounting Bracket

          • Specify sensor mounts for slotted upright (B) or shelf (S)
          Part Number: LLSMB-(TYPE)
          • LLSMB..... LEDge Light Sensor Mounting Bracket
          • TYPE..... Sensor Mount Type: B=Slotted Upright S=Shelf
          LLSMB-(TYPE)-LEDge Light Sensor Mounting Bracket

           LEDge Light Versa Bus Bar

          • Available in 46" and 76" (1168 mm and 1930 mm) lengths (for 54" and 84" [1372 mm and 2134 mm] back panels, respectively)
          • Can be mounted higher or lower on larger panels depending on shelf location
          • Can be trimmed to fit shorter panels
          Part Number: LLBB(NL)
          • LLBB......LEDge Light Versa Bus Bar
          • NL.....Nominal Length 46" or 76" (1168 mm or 1930 mm)
          LLBB(NL)-LEDge Light Versa Bus Bar

           LEDge Light Versa Connector

          • Complete assembly includes connector and cable
          • Versa connector needs to be size of shelf or deeper
          Part Number: LLVC(ND)
          • LLVC......LEDge Light Versa Connector
          • ND......Nominal Depth 12", 18", 30" (305 mm, 457 mm, 762 mm)
          LLVC(ND)-LEDge Light Versa Connector

           LEDge Light Versa Y-Connector

          • Splitter connecting LEDge Light Versa Bus Bars to power supply
          • 15" (381 mm) overall length
          Part Number: LLVY
          • LLVY......LEDge Light Versa Y-Connector
          LLVY-LEDge Light Versa Y-Connector

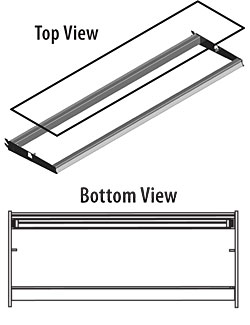

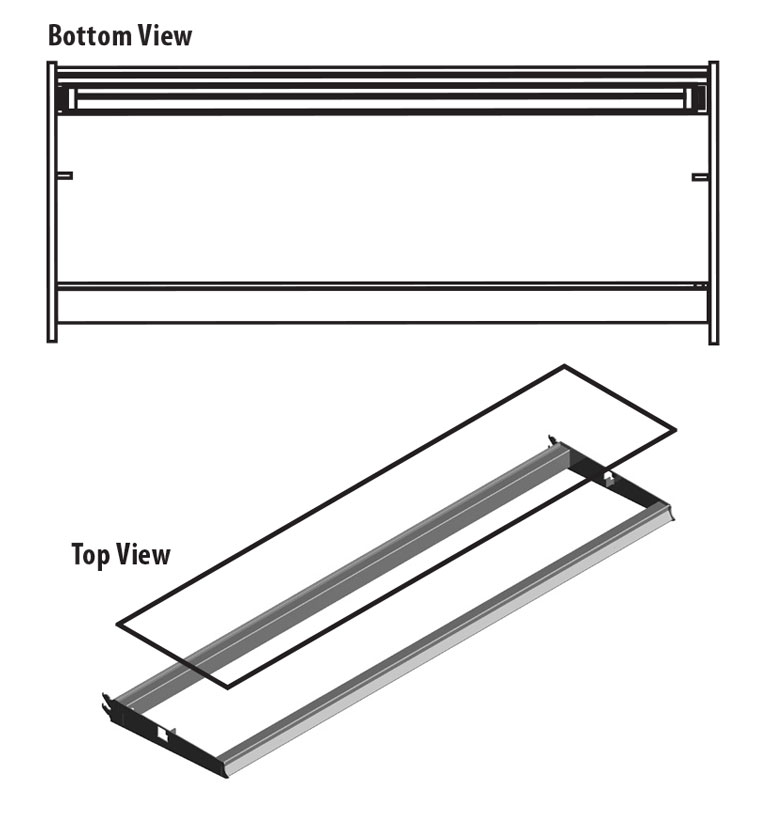

           Lighted Upper Shelf Assembly

          • Shelf assembly uses LEDge Light [LLS(NL)], ordered separately
          • Several sizes, finishes, and top surfaces are available
          • Load capacity is 100 lbs for each shelf
          Part Number: LUSANL-(NW)(ND)-(OPT2)
          • LUSA..... Lighted Upper Shelf Assembly
          • NL ....No Light
          • NW ....Nominal Width 3' or 4' (914 mm or 1219 mm)
          • ND....Nominal Depth 12", 14", 16", 18", 22", or 24" (305 mm, 356 mm, 406 mm, 457 mm, 559 mm, or 610 mm)
          • OPT2 .... Top Option TG = Tempered Glass CA = Clear Acrylic FA = Frosted Acrylic ND = No Deck
          LUSANL-(NW)(ND)-(OPT2)-Lighted Upper Shelf Assembly
          Order LEDge Light LLS(NL) separately.

           LEDge Light Cable Clamp Magnetic

          • Use to cleanly route cables
          • Easy fast installation, durable, and reusable
          • Mounts rotate 360°
          • 1/2" (13 mm) capacity
          • Available in black or white
          Part Number: LLCCCM-(OPT)
          • LLCCCM..... LEDge Light Cable Clamp Magnetic
          Options
          • OPT..... Color B=Black W=White
          LLCCCM-(OPT)-LEDge Light Cable Clamp Magnetic

           Lighted Upper Shelf Assembly

          • Shelf assembly uses LEDge Light [LLS(NL)], ordered separately
          • Several sizes, finishes, and top surfaces are available
          • Load capacity is 100 lbs for each shelf
          Part Number: LUSANL-(NW)(ND)-(OPT2)
          • LUSA..... Lighted Upper Shelf Assembly
          • NL ....No Light
          • NW ....Nominal Width 3' or 4' (914 mm or 1219 mm)
          • ND....Nominal Depth 12", 14", 16", 18", 22", or 24" (305 mm, 356 mm, 406 mm, 457 mm, 559 mm, or 610 mm)
          • OPT2 .... Top Option TG = Tempered Glass CA = Clear Acrylic FA = Frosted Acrylic ND = No Deck
          LUSANL-(NW)(ND)-(OPT2)-Lighted Upper Shelf Assembly
          Order LEDge Light LLS(NL) separately.

           Tube Line Metal Shelf

          • Flush-front shelf with diamond perforations
          Part Number: TLMS(OPT1)(NW)(ND)
          • TLMS......Tube Line Metal Shelf
          • NW......Nominal Width 18", 24", 30", 36", 42", or 48" (457 mm, 610 mm, 762 mm, 914 mm, 1067 mm, or 1219 mm)
          • ND......Nominal Depth 08" to 24" in 2" increments (203 mm to 610 mm in 51 mm)
          Options
          • OPT1......D=Diamond Perferated NP=Non-Perferated
          TLMS(OPT1)(NW)(ND)-Tube Line Metal Shelf

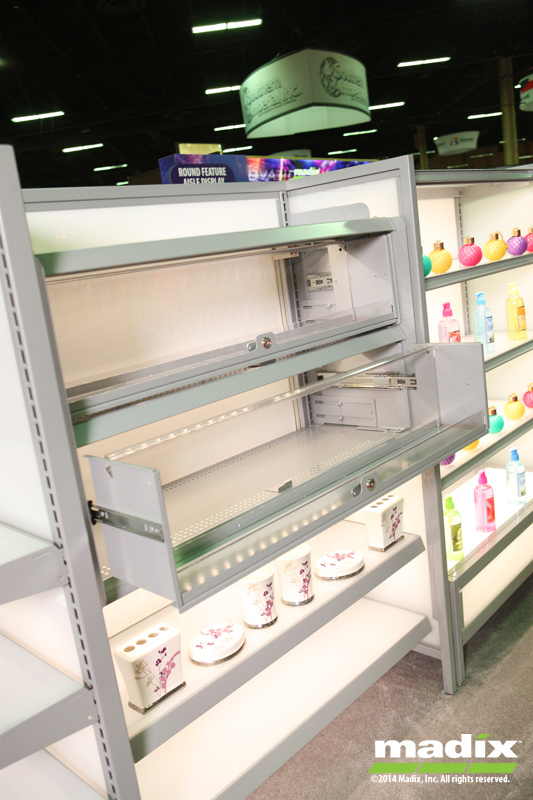

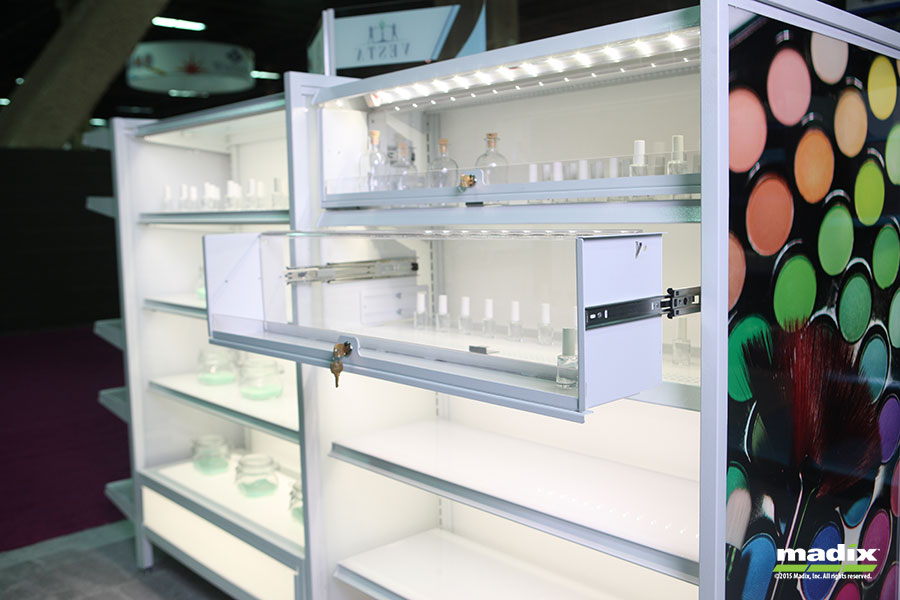

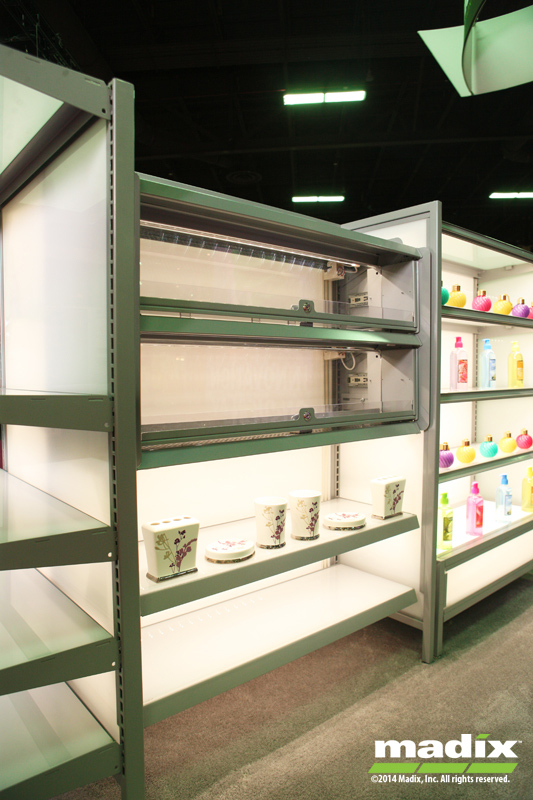

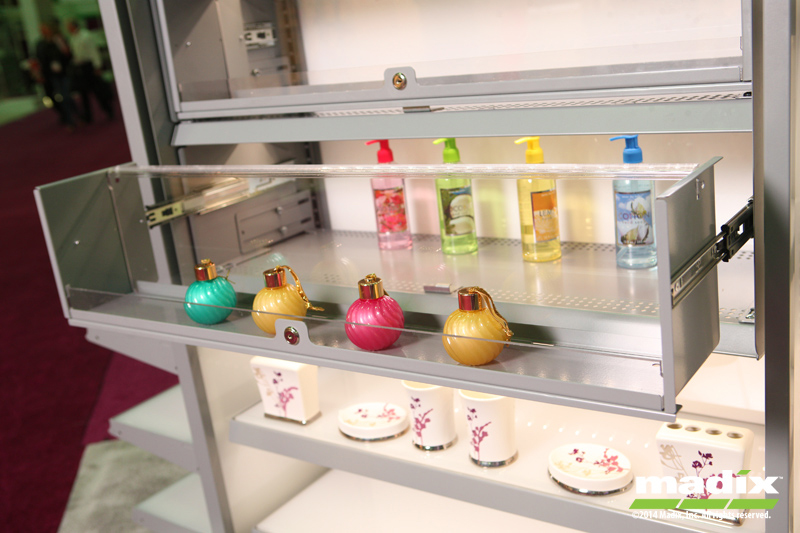

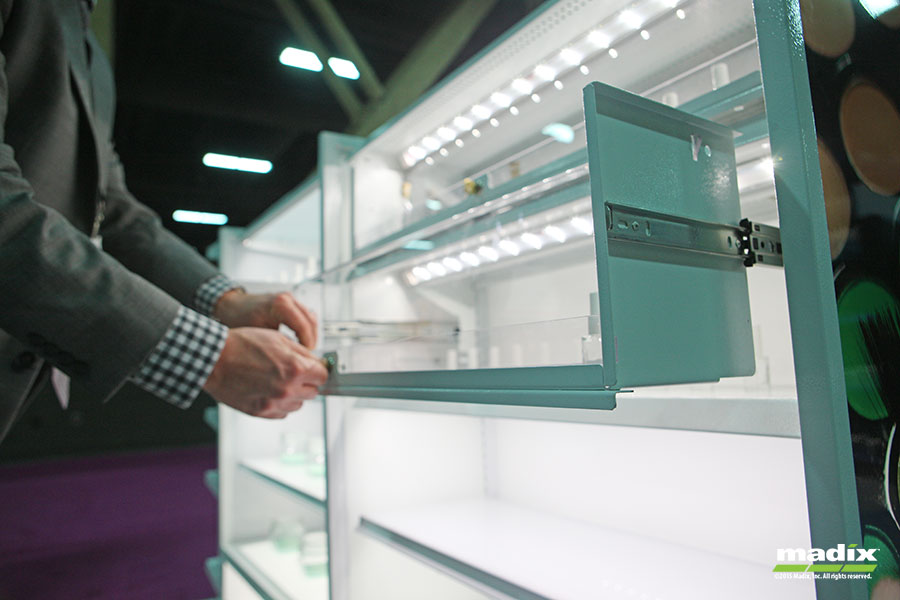

           Tube Line Pull-Out Demo Display

          • Requires the use of Tube Line Metal Shelf at top and bottom of each display
          Part Number: TLUPODD(NW)1016(OPT)
          • TL......Tube Line
          • UPODD......Universal Pull-Out Demo Display
          • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
          • 1016......Nominal Depth 10" to 16" range pull-out (254 mm to 406 mm range pull-out)
          Options
          • OPT......KL=Kenstan Lock Blank=Standard Lock
          TLUPODD(NW)1016(OPT)-Tube Line Pull-Out Demo Display

           Tube Line Universal Pull-Out Demo Display End Panel

          • Nominal height must be in 10" increments 20" covers two pull-outs 40" covers four pull-outs
          Part Number: TLUPODDEP(NH)1016(OPT)
          • TL......Tube Line
          • UPODD......Universal Pull-Out Demo Display
          • EP......End Panel
          • NH......Nominal Width 20" or 40" (508 mm or 1016 mm)
          • 1016......Nominal Depth 10" to 16" range pull-out (254 mm to 406 mm range pull-out)
          Options
          • OPT......LH=Left Hand RH=Right Hand
          TLUPODDEP(NH)1016(OPT)-Tube Line Universal Pull-Out Demo Display End Panel

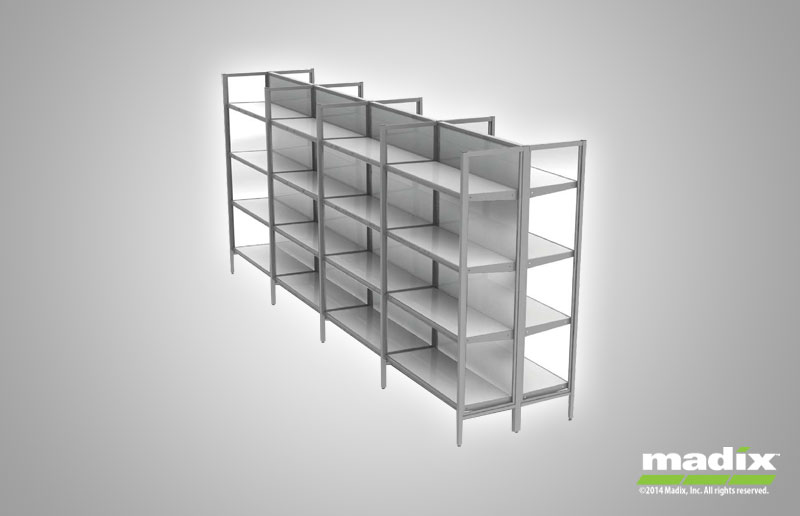

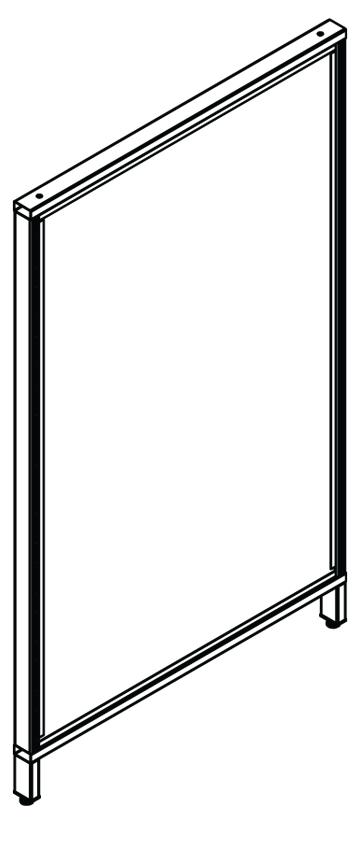

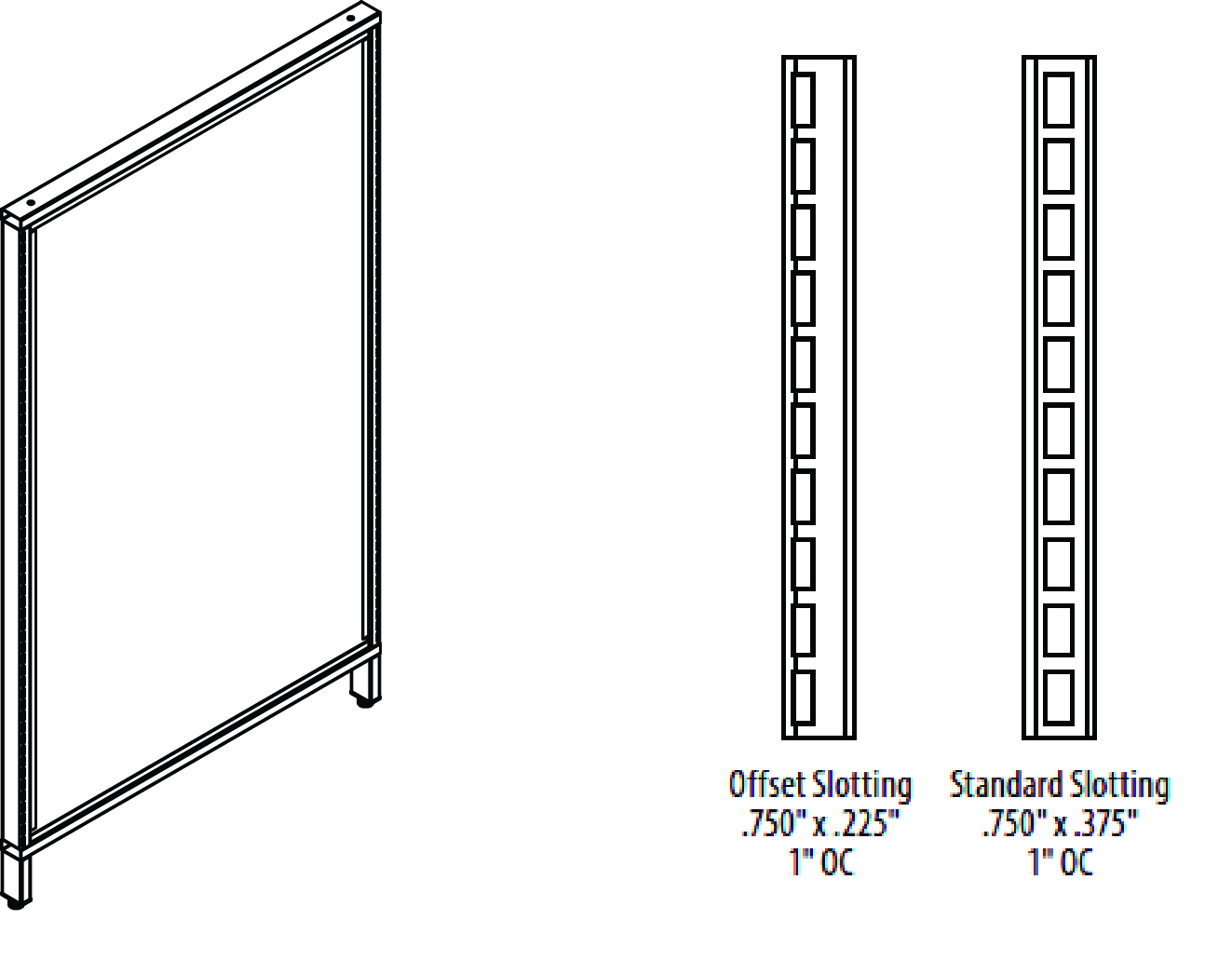

           Vesta Fixture Gondola Core with Offset Slots

          • Offset slotting is narrower and decreases the growth of the Vesta system by .375" (10 mm) per section
          • Appeareance is further improved by reducing the gap between the divider panels and shelves, tables, and base drawers
          • Easy installation
          Part Number: UFGCOS(NW)(NH)(OPT1)(OPT2)
          • UF......Vesta Fixture
          • GCOS......Gondola Core with Offset Slots
          • NW......Nominal Width 24", 30", 32", 36", 42", or 48" (610 mm, 762 mm, 813 mm, 914 mm, 1067 mm, or 1219 mm)
          • NH......Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          Options
          • OPT1......Back Panel 1 FA=Frosted Acrylic MP=Milk Plex HL=Hardboard OPT2......Back Panel 2 FA=Frosted Acrylic MP=Milk Plex HL=Hardboard Z=No Back
          UFGCOS(NW)(NH)(OPT1)(OPT2)-Vesta Fixture Gondola Core with Offset Slots

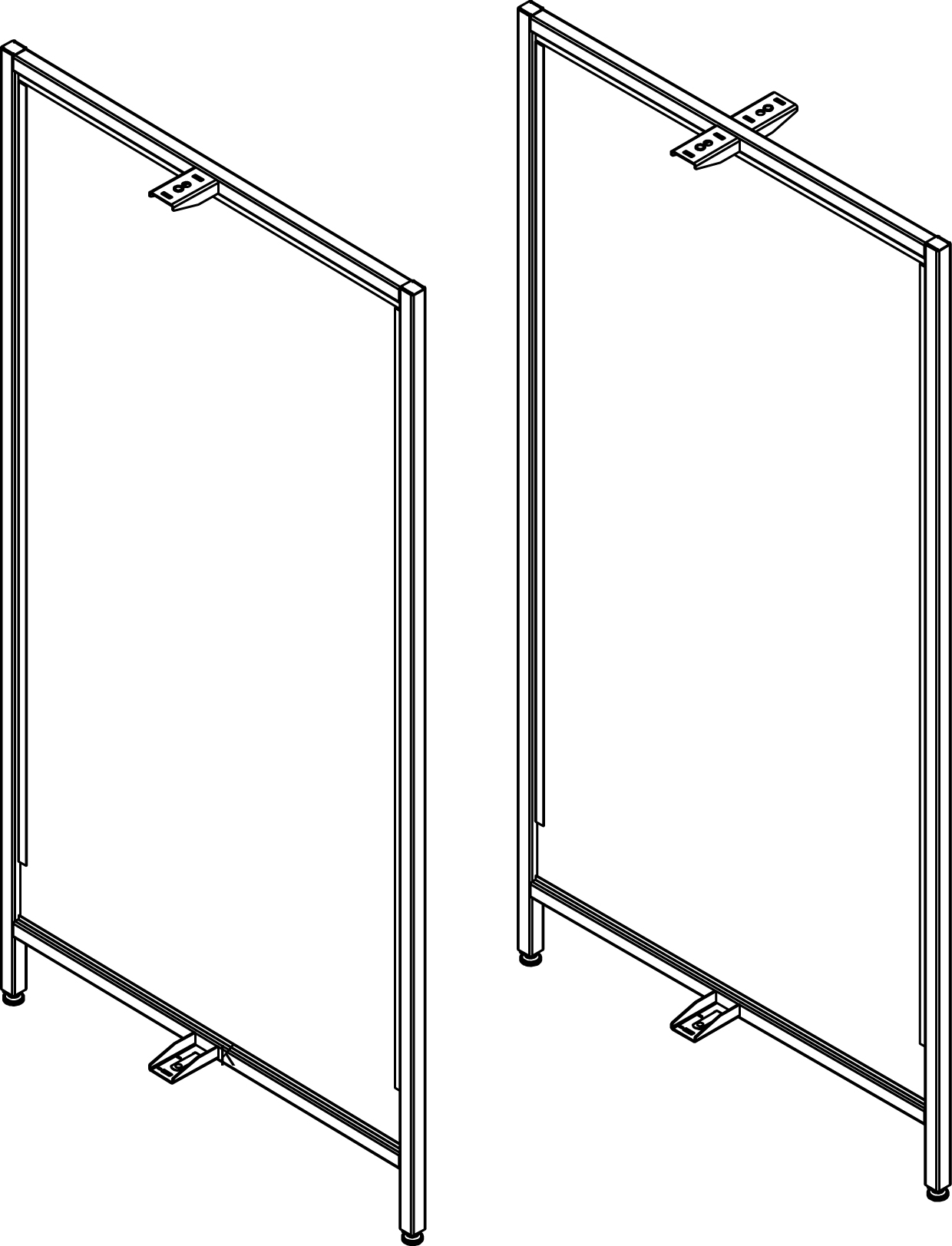

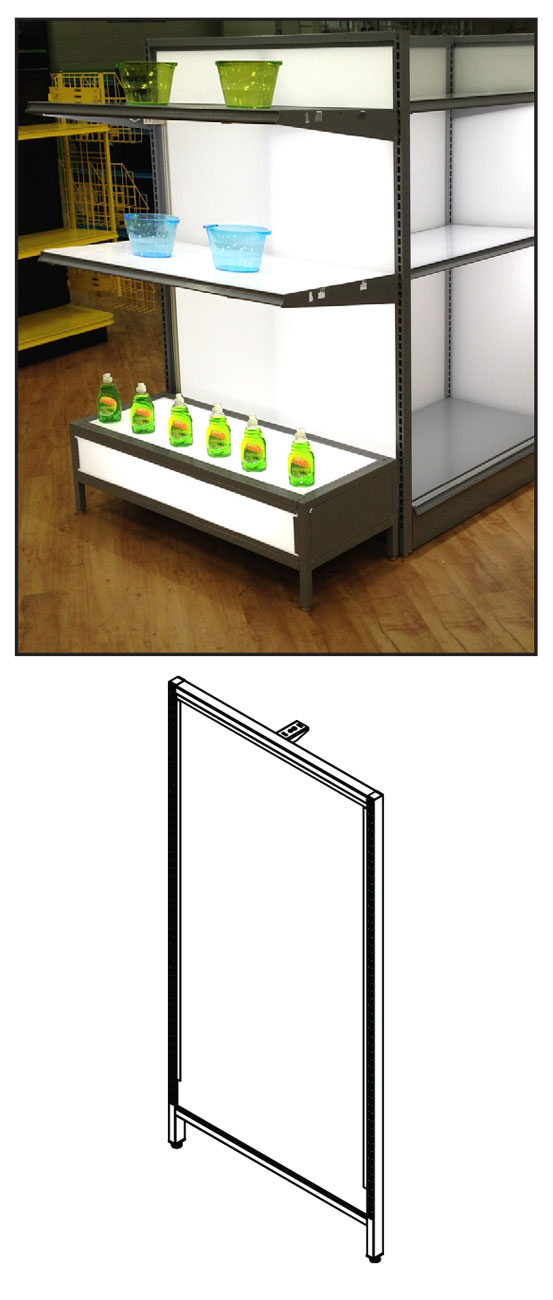

           Vesta Fixture Upright Divider Panel, End and Intermediate

          • For use on a gondola when shelves are on both sides
          • Only two-tab Madix shelving may be used
          • Easy installation
          Part Number: UFDPU(OPT1)(NW)(NH)(OPT2)
          • UF......Vesta Fixture
          • DPU......Divider Panel Upright
          • NW......Nominal Width 18", 24", 30", 36", 42", or 48" (457 mm, 610 mm, 762 mm, 914 mm, 1067 mm, or 1219 mm)
          • NH......Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          Options
          • OPT1......E=End I=Intermediate OPT2......Back Panel FA=Frosted Acrylic MP=Milk Plex HL=Hardboard
          UFDPU(OPT1)(NW)(NH)(OPT2)-Vesta Fixture Upright Divider Panel, End and Intermediate

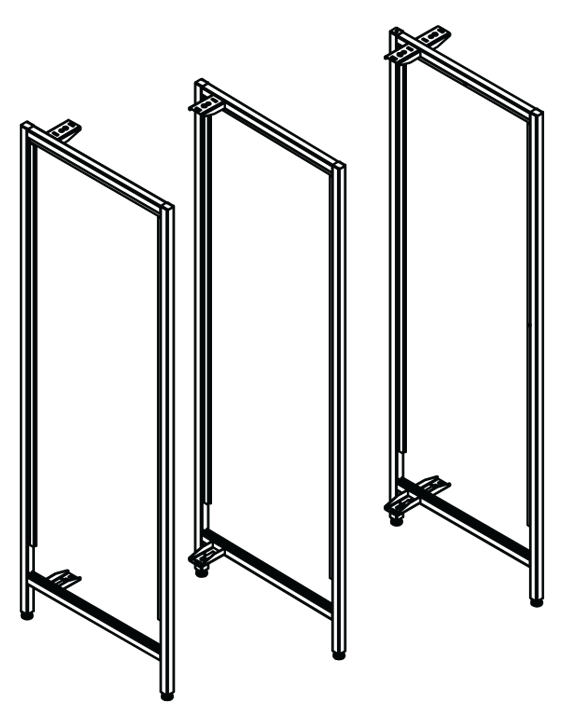

           Vesta Fixture Wall Divider Panel Upright End or Intermediate

          • Slim profile 1" x 1" (25 mm x 25 mm) tubing
          • Single-panel design
          • Easy installation
          • Not slotted for shelves
          Part Number: UFWDPU(OPT1)(NW)(NH)(OPT2)
          • UF......Vesta Fixture
          • WDPU......Wall Divider Panel Upright
          • NW......Nominal Width 18", 20", 22", 24", 26", or 30" (457 mm, 508 mm, 559 mm, 610 mm, 660 mm, or 762 mm)
          • NH......Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          Options
          • OPT1......I=Intermediate L=Left Hand R=Right Hand OPT2......Back Panel FA=Frosted Acrylic MP=Milk Plex HL=Hardboard
          UFWDPU(OPT1)(NW)(NH)(OPT2)-Vesta Fixture Wall Divider Panel Upright End or Intermediate

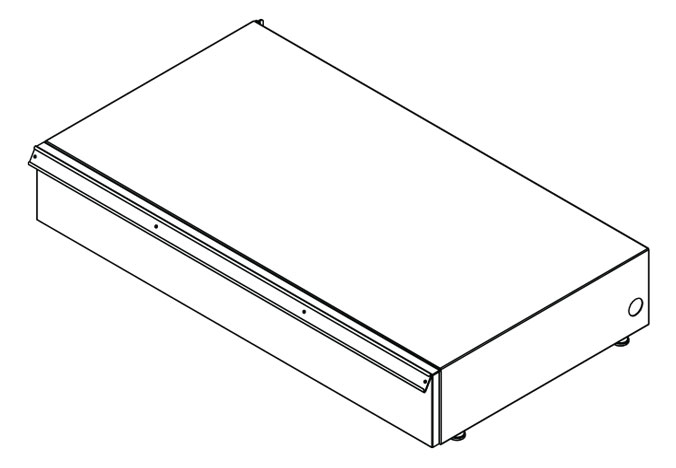

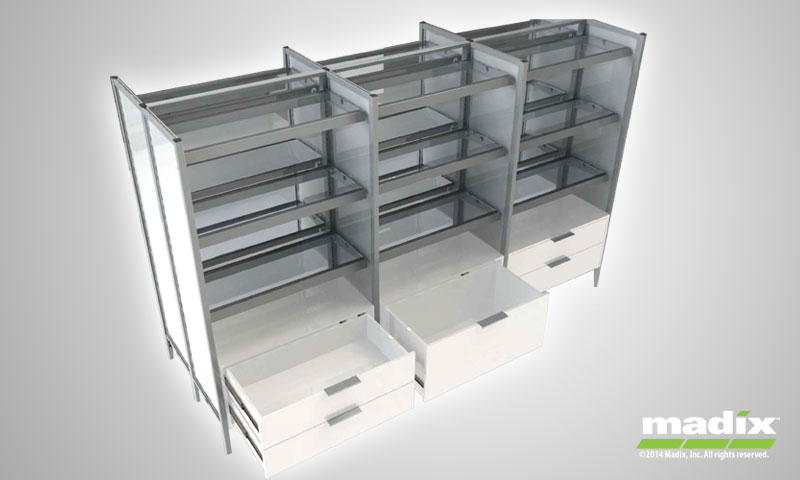

           Vesta® Fixture Base Drawer

          • Optional base drawer with tag molding
          • Allows storage of inventory on sales floor
          • Ball-bearing slides allow easy operation
          Part Number: UFBD-(NW)(ND)(NH)
          • UF..... Vesta Fixture
          • BD..... Base Drawer
          • NW......Nominal Width 24", 36", 42", or 48" (610 mm, 914 mm, 1067 mm, or 1219 mm)
          • ND......Nominal Depth 14" to 26" (356 mm to 660 mm)
          • NH......Nominal Height 06" or 08" (152 mm or 203 mm)
          UFBD-(NW)(ND)(NH)-Vesta® Fixture Base Drawer

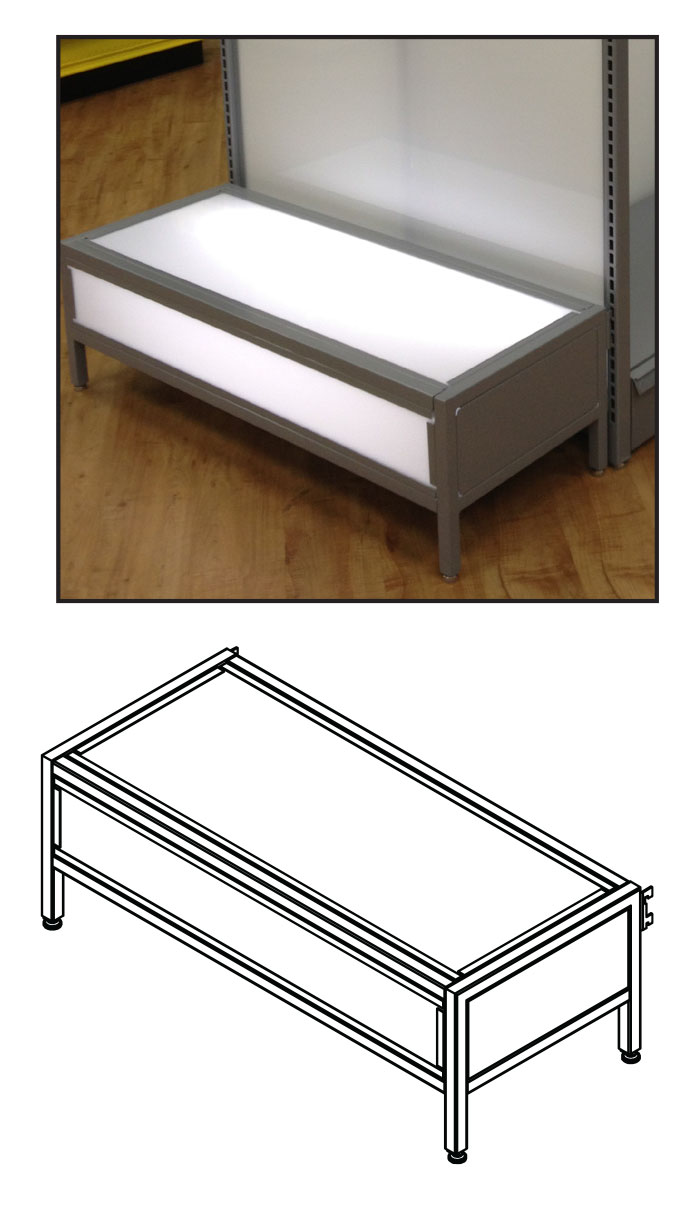

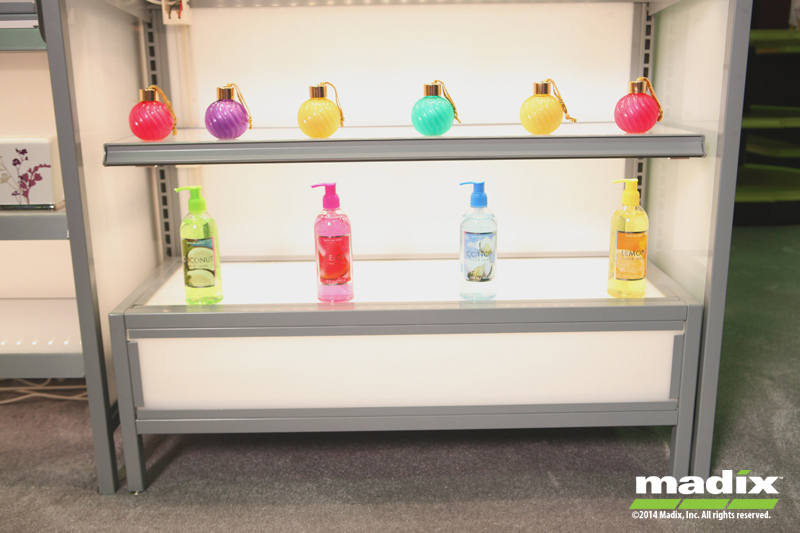

           Vesta™ Fixture Display Table

          • Can be installed in the run or used as an end-cap display
          • Optional lighting makes product stand out
          • Standard panels: Milk Plex
          Part Number: UFDT(NW)(ND)(NH)(OPT1)(OPT2)
          • UF..... Vesta Fixture
          • DT.....Display Table
          • NW.....Nominal Width 24", 30", 32", 36", 42", or 48" (610 mm, 762 mm, 813 mm, 914 mm, 1067 mm, or 1219 mm)
          • ND......Nominal Depth 12", 14", or 16" (305 mm, 356 mm, or 406 mm)
          • NH......Nominal Height 12" (305 mm)
          Options
          • OPT1......Front Panel Option FA=Frosted Acrylic MP=Milk Plex HL=Hardboard Laminated Two Sides OPT2......Top Panel Option FA=Frosted Acrylic MP=Milk Plex HL=Hardboard
          UFDT(NW)(ND)(NH)(OPT1)(OPT2)-Vesta™ Fixture Display Table

           Vesta™ Fixture Divider Panel Upright End or Intermediate

          • Slim profile 1" x 1" (25 mm x 25 mm) tubing
          • Single-panel design
          • Easy installation
          • Not slotted for shelves
          Part Number: UFWDPU (OPT1)(NW)(NH)(OPT2)
          • UF..... Vesta Fixture
          • WDPU..... Wall Divider Panel Upright
          • NW.....Nominal Width 18", 20", 22", 24", 26", or 30" (457 mm, 508 mm, 559 mm, 610 mm, 660 mm, or 762 mm)
          • NH.....Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          • NH.....Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          • OPT2..... Back Panel CA=Clear Acrylic FA=Frosted Acrylic MP=Milk Plex TG=Tempered Glass HL=Hardboard
          Options
          • OPT1..... I=Intermediate L=Left Hand R=Right Hand OPT2..... Back Panel FA=Frosted Acrylic MP=Milk Plex HL=Hardboard
          UFWDPU (OPT1)(NW)(NH)(OPT2)-Vesta™ Fixture Divider Panel Upright End or Intermediate

           Vesta™ Fixture Divider Panel Upright Slotted End Frame

          • Slim profile 1" x 1 1/2" (25 mm x 38 mm) tubing
          • Only two-tab Madix shelving may be used
          • Easy installation
          Part Number: UFDPUSEF(NW)(NH)(OPT)
          • UF..... Vesta Fixture
          • DPU..... Divider Panel Upright
          • SEF..... Slotted End Frame
          • NW.....Nominal Width 18", 24", 30", 36", 42", or 48" (457 mm, 610 mm, 762 mm, 914 mm, 1067 mm, or 1219 mm)
          • NH.....Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          Options
          • OPT......Back Panel FA=Frosted Acrylic MP=Milk Plex HL=Hardboard
          UFDPUSEF(NW)(NH)(OPT)-Vesta™ Fixture Divider Panel Upright Slotted End Frame

           Vesta™ Fixture Gondola Core

          • Slim profile 1" x 2" (25 mm x 51 mm) tubing upright
          • Only two-tab Madix shelving may be used
          • Easy installation
          Part Number: UFGC(NW)(NH)(OPT1)(OPT2)
          • UF..... Vesta Fixture
          • GC.....Gondola Core
          • NW.....Nominal Width 24", 30", 32", 36", 42", or 48" (610 mm, 762 mm, 813 mm, 914 mm, 1067 mm, or 1219 mm)
          • NH.....Nominal Height 48", 54", 60", 66", 72", 84", or 90" (1219 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2134 mm, or 2286 mm)
          Options
          • OPT1..... Back Panel One FA=Frosted Acrylic MP=Milk Plex HL=Hardboard OPT2..... Back Panel Two FA=Frosted Acrylic MP=Milk Plex HL=Hardboard Z=No Back
          UFGC(NW)(NH)(OPT1)(OPT2)-Vesta™ Fixture Gondola Core

           Vesta™ Fixture Shelf

          • Slim profile shelf maximizes merchandise space
          • Includes standard 1 1/4" (32 mm) tag molding
          • Standard Tops: Clear Acrylic, Frosted Acrylic, Milk Plex, Tempered Glass, Hardboard Laminated
          • Other tops available; please contact your Sales Representative for more options
          • Load capacity is 100 lbs
          Part Number: UFUSA(OPT1)-(NW)(ND)(OPT2)
          • UF..... Vesta Fixture
          • USA..... Upper Shelf Assembly
          • NW......Nominal Width 18", 24", 30", 36", 42", or 48" (457 mm, 610 mm, 762 mm, 914 mm, 1067 mm, or 1219 mm)
          • ND......Nominal Depth 8" to 24" in 2" increments (203 mm to 610 mm in 51 mm increments)
          Options
          • OPT1......Light Option NL=No Light Blank=with Light OPT2......Top Option FA=Frosted Acrylic MP=Milk Plex HL=Hardboard Laminated 2 Sides TG=Tempered Glass CA=Clear Acrylic ND=None
          UFUSA(OPT1)-(NW)(ND)(OPT2)-Vesta™ Fixture Shelf
        Madix Inc.
