LEDge Light
  • LEDge Light

    LEDge Light Gen 3

    LEDge Light is the first LED lighting product designed specifically for use on display shelves.

    LEDge Light is the first LED lighting product designed specifically for use on display shelves. Environmentally friendly LEDs produce light intensity similar to T5 fluorescent fixtures, while using only half the energy and lasting nearly three times as long without replacement or maintenance. LEDge Light produces virtually no heat, no UV rays (eliminating package degradation) and features a specially designed lens for optimal light distribution. Optional dimming controller with infrared sensors may reduce energy consumption by over 50% and double the life of the fixture.

    • 2', 3', or 4' lengths (610 mm, 914 mm, or 1219 mm). Maintenance-free life in excess of 50,000 hours (11 years at 12 hours/day).
    • Compact, 1.18" x .88" (30 mm x 22 mm) profile. Durable aluminum extrusion. Integrated magnets make installation on metal shelves or other surfaces easy and allow fast changes.
    • End tabs with holes for fastening to wood shelves, counters, or other surfaces
    • UL listed system. All "plug and play" connections- no electrician required (Class 2 system).

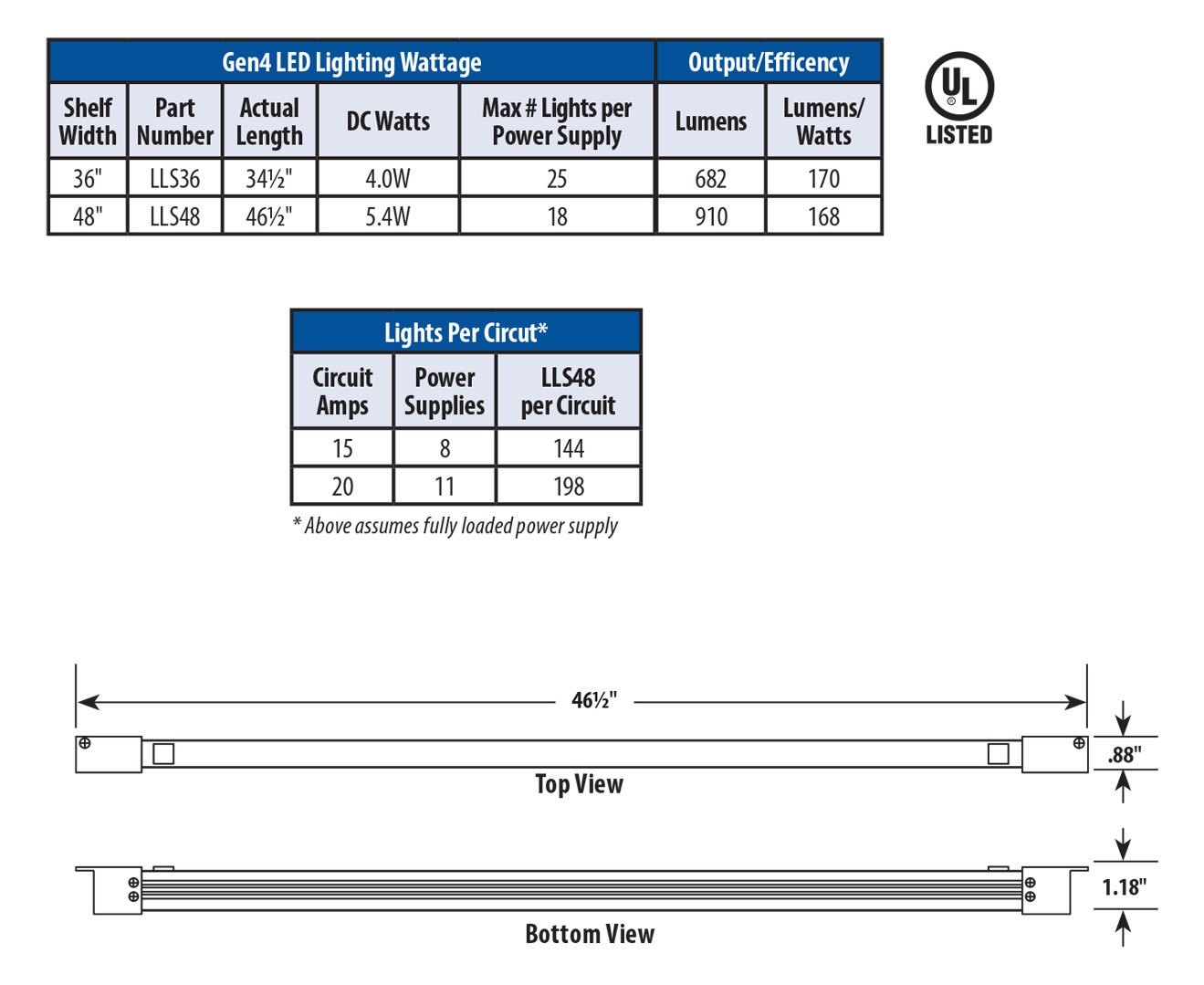

    • Multiple units connected using jumper cables or harness assembly. May be daisy-chained to single power supply for single-row applications. Power up to ten 48" LEDge Lights with one power supply (see chart).
    • Color temperature: 4,200K. Color Rendering Index (CRI) of 85. Contains no heavy metals.
    • Low power consumption helps meet California Title 24 lighting regulations. Safe 24-volt DC system.
    • 3-year warranty

    Surface & Panel magazine recently conducted an in-depth study on the benefits of utilizing LED lighting. The article points out several key points that place LEDge Light at the peak end of the lighting spectrum.

    Key points from the article

    • LEDge Light uses constant 24v power to sustain its quality lighting distribution.
    • The color temperature for LEDge Light is 4200K.
    • The CRI (Color Rendering Index) is based on a 0-100 scale. The higher the number, the better color rendering ability. LEDge Light's CRI is 85.

    Also Available

    LEDge Light Versa

    A Whole New World of Possibilities

    The new LEDge Light Versa connectors allow retailers to quickly and easily modify shelf spacing without the hassle of unplugging and reconnecting. Adjust shelves mounted with LEDge lights throughout the run without moving wires or electrical connections.

    • Hassle-free way to light an entire fixture run
    • Quickly reset plan-o-grams
    • Spring Loaded Versa connector easily install to pre-existing LEDge light runs
    • Compatiable with most metal shelving
    • Patent Pending
  • Video

    LEDge Light Gen 3 & Versa

    LEDge Light Versa featured at GlobalShop 2015.

    LEDge Light Versa Promo Video

    LEDge Light Versa promo video with Robert Hilton

    LEDge Light Versa Install Video

    LEDge Light Versa install video.

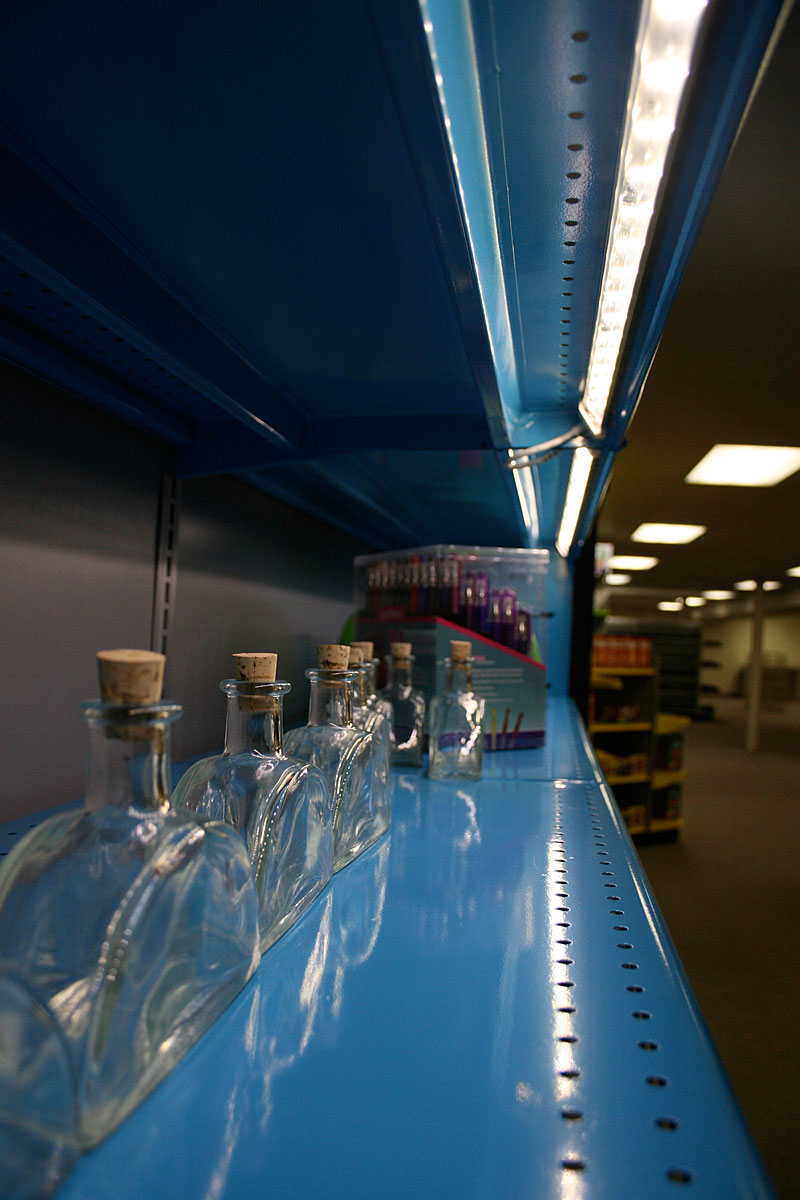

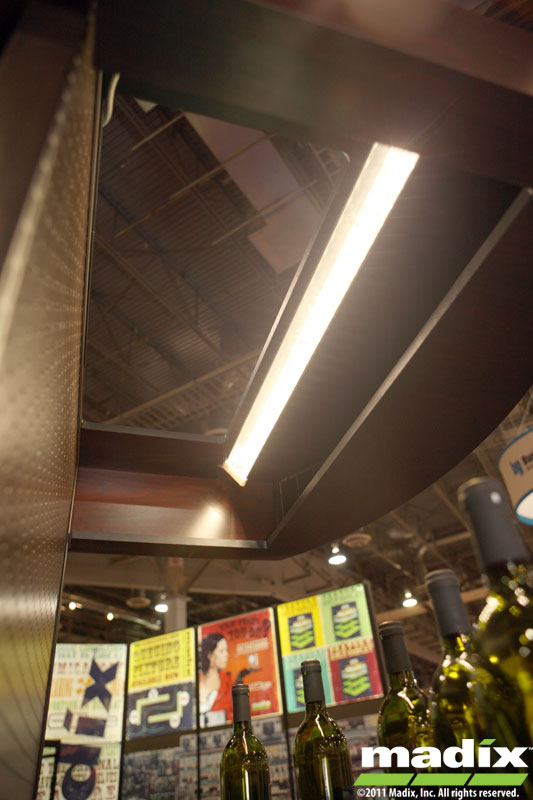

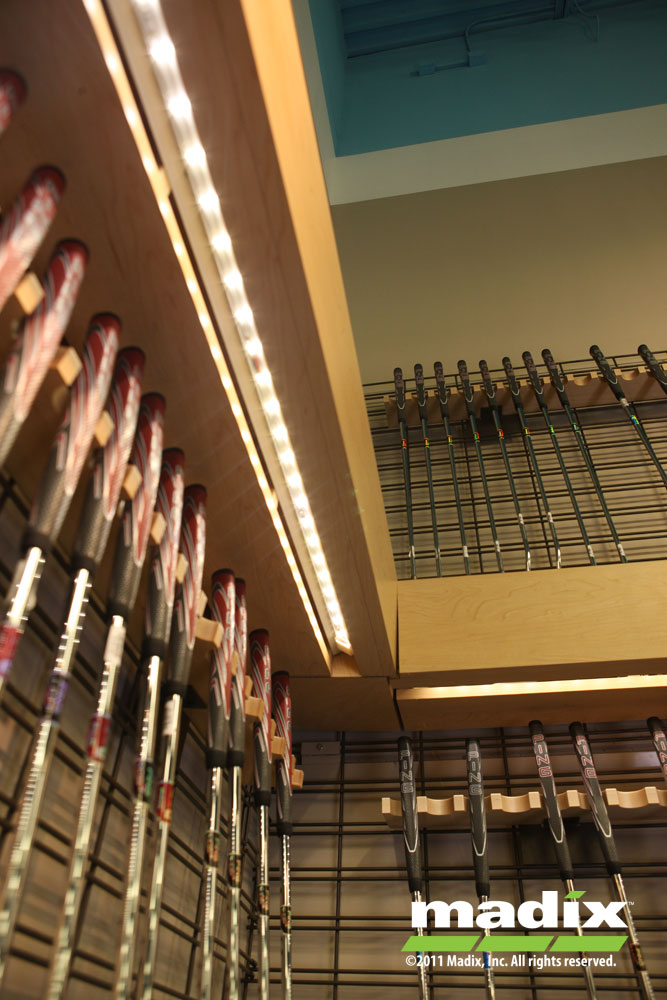

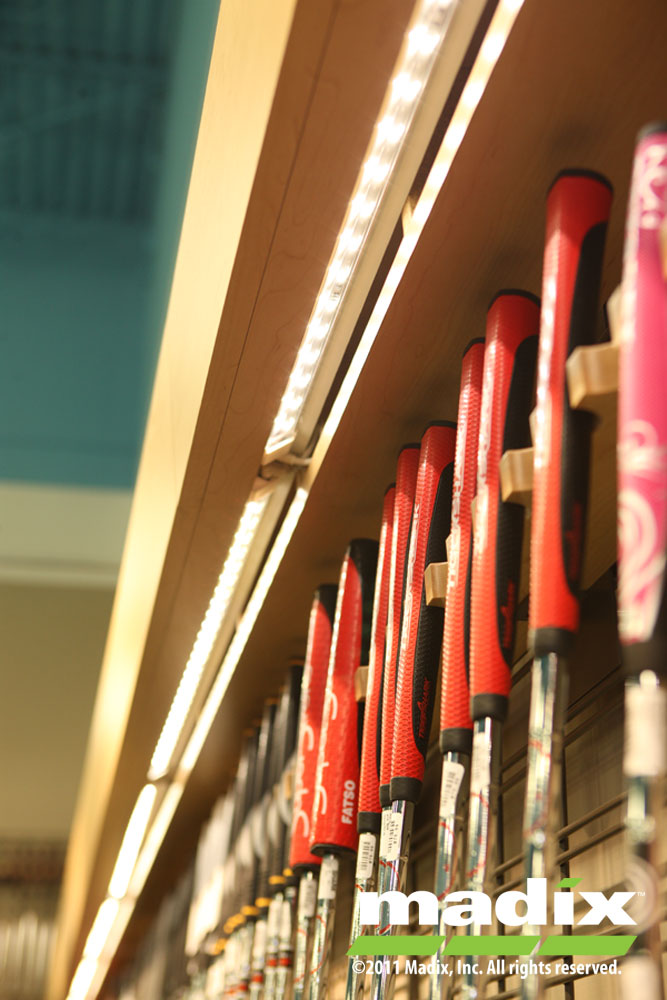

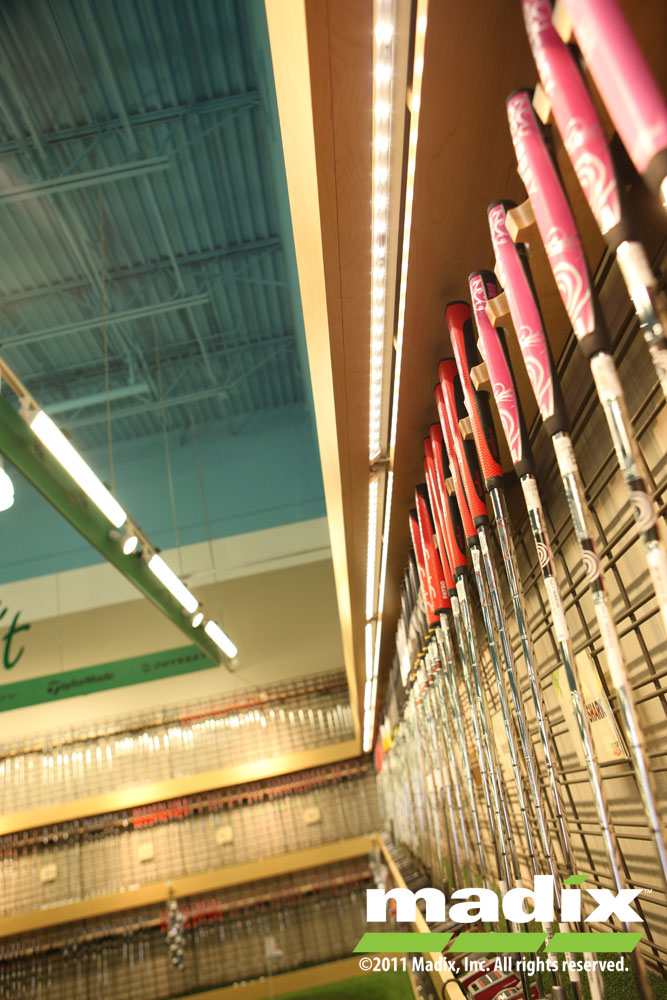

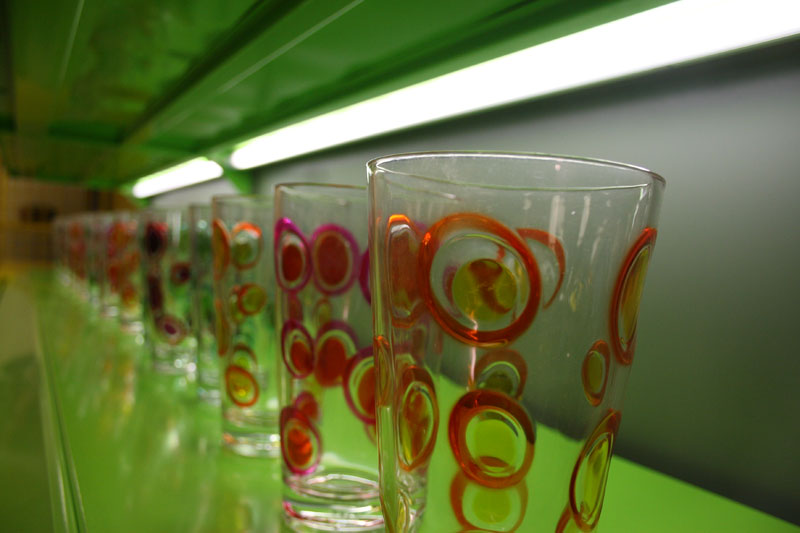

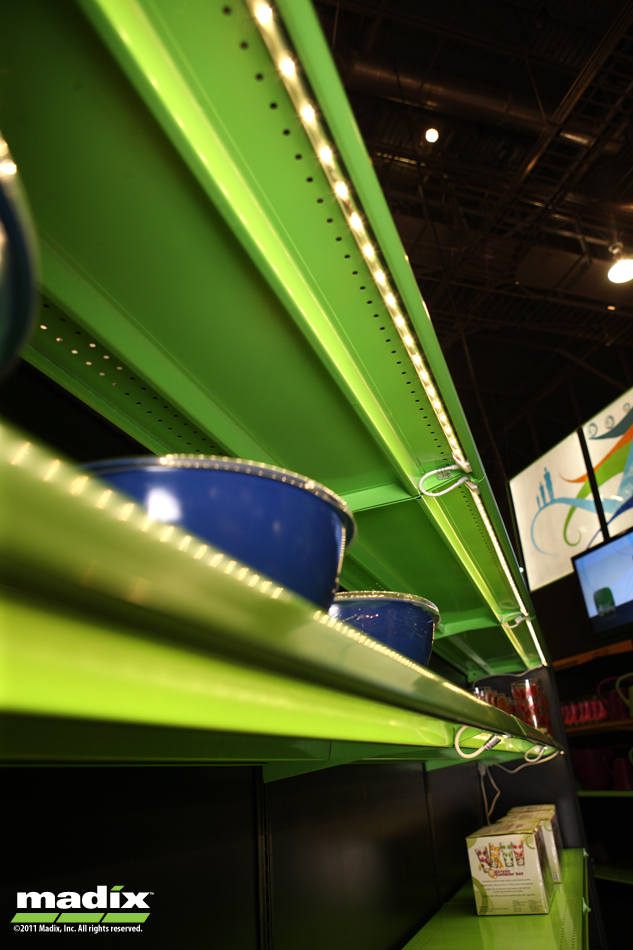

    Gallery

  • Components for LEDge Light Gen 3

    Reveal/Hide Components

     LEDge Light

    • 2', 3', and 4' lengths (610 mm, 914 mm or 1219 mm)
    • Maintenance-free life in excess of 50,000 hours (11 years at 12 hours/day), Compact, 1.18" x .88" (30 mm x 22 mm) profile, Durable aluminum extrusion
    • Integral Magnets make installation on metal shelves or other surfaces easy and allow fast changes
    • End tabs with holes for fastening to wood shelves, counters, or other surfaces, UL listed system, Energy Star certified
    • All plug ’n play connections– no electrician required (class 2 system). Multiple units connected using Jumper Cables or Harness Assembly. May be daisy-chained to single power supply for “single row” applications
    • Power up to ten 48" LEDge Lights with one power supply (see chart). Color temperature: 4200K. Color Rendering Index (CRI) of 85. Contains no heavy metals
    • Low power consumption helps meet California Title 24 lighting regulations. Safe 24 volt DC system
    • 3-year warranty. Not compatible with Lumi-M-Stick, Lumiback, or Lumishelfâ„¢ accessories
    Part Number: LLS(NL)
    • LLS......LEDge Light
    • NL......Nominal Length 24", 36" or 48" (610 mm, 914 mm or 1219 mm)
    LLS(NL)-LEDge Light

     LEDge Light Cable Clamp

    • Use to cleanly route cables
    • Clear nylon with adhesive back
    • 3/8" (10 mm) capacity
    • 25 pieces per pack
    Part Number: LLCC38-25
    • LLCC..... LEDge Light Cable Clamp
    • 38..... 3/8" (10 mm) capacity
    • 25..... 25 pieces
    LLCC38-25-LEDge Light Cable Clamp

     LEDge Light Cat 5 Cable

    • Used to connect Motion Sensor to Dimming Controller
    Part Number: LLC5C-(NL)
    • LLC5C......LEDge Light Cat 5 Cable
    • NL......Nominal Length 3', 15', 25', 50' (914 mm, 4572 mm, 7620 mm, 15,240 mm)
    LLC5C-(NL)-LEDge Light Cat 5 Cable

     LEDge Light Cat 5 Coupler

      Part Number: LLC5CP
      • LLC5CP......LEDge Light Cat 5 Coupler
      LLC5CP-LEDge Light Cat 5 Coupler

       LEDge Light Cat 5 Y-Splitter

        Part Number: LLC5YS
        • LLC5YS......LEDge Light Cat 5 Y-Splitter
        LLC5YS-LEDge Light Cat 5 Y-Splitter

         LEDge Light Dimming Components

          Part Number:
            -LEDge Light Dimming Components

             LEDge Light Dimming Controller

              Part Number: LLDC
              • LLDC..... LEDge Light Dimming Controller
              LLDC-LEDge Light Dimming Controller

               LEDge Light Dimming Controller Add-On Kit

              • Order this kit to control additional power supplies (one kit per power supply)
              • Contains one dimming controller, cables and connectors to add one power supply
              • "Plug ‘n play" connections– no electrician required
              • White color
              • Not compatible with Lumiback or Lumishelfâ„¢
              Part Number: LLDCA
              • LLDCA..... LEDge Light Dimming Controller Add-On Kit
              LLDCA-LEDge Light Dimming Controller Add-On Kit

               LEDge Light Dimming Controller Kits

                Part Number:
                  -LEDge Light Dimming Controller Kits

                   LEDge Light Dimming Controller Starter Kit

                  • Controls single 100W power supply
                  • Kit contains one dimming controller, two infrared sensors, cables and connectors for use in up to a 24' (7315 mm) run (longer runs require Sensor Add-On Kit– see below)
                  • Sensor detection range is 14' (4267 mm) diameter
                  • Specify sensor mounts for slotted upright (B) or shelf (S)
                  • Plug ‘n play connections– no electrician required
                  • White color
                  • Not compatible with Lumiback or Lumishelfâ„¢
                  Part Number: LLDCS-(TYPE)
                  • LLDCS..... LEDge Light Dimming Controller Starter Kit
                  • TYPE..... Sensor Mount Type: B=Slotted Upright S=Shelf
                  LLDCS-(TYPE)-LEDge Light Dimming Controller Starter Kit

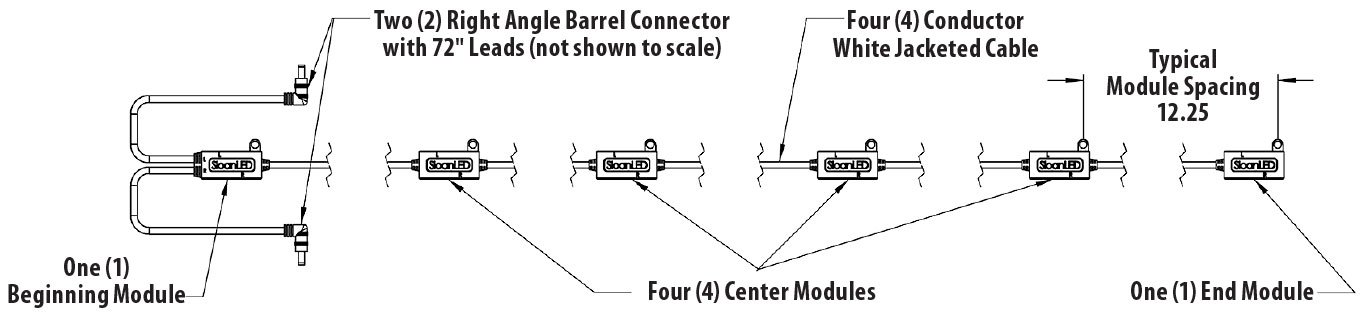

                   LEDge Light Harness Assembly

                  • Harness Assembly is used to connect up to 6 LEDge Lights to a single, 100W power supply
                  • Up to 12 lights may be connected to a single Harness Assembly by using 2 power supplies
                  • Harness plugs directly into power supply
                  • Jumper Cables required to connect LEDge Lights to Harness Assembly
                  • 6 modules, 12.25" (311 mm) OC with 72" (1829 mm) leads for each power supply connection
                  • Screw tab on each connecting module allows fastening to a perforated back panel via push rivets or to other surfaces with screws (not included)
                  • White color
                  Part Number: LLHA
                  • LLHA..... LEDge Light Harness Assembly
                  LLHA-LEDge Light Harness Assembly

                   LEDge Light Jumper Cable

                  • Required to connect LEDge Lights to Harness Assembly and adjacent lights in daisy-chain applications
                  • White color
                  Part Number: LLJ(NL)
                  • LLJ..... LEDge Light Jumper Cable
                  • NL.....Nominal Length 6", 18", 30", 72", 144" (152 mm, 457 mm, 762 mm, 1829 mm or 3658 mm)
                  LLJ(NL)-LEDge Light Jumper Cable

                   LEDge Light Motion Sensor

                  • 60" (1524 mm) cord
                  Part Number: LLMS
                  • LLMS..... LEDge Light Motion Sensor
                  LLMS-LEDge Light Motion Sensor

                   LEDge Light Motion Sensor Add-On Kit

                  • Order this kit where additional sensors are required in system [at center of any run that exceeds 24' (7315 mm)]
                  • Kit adds a single sensor to Starter Kit above
                  • Contains one infrared sensor, cables and connectors to add 12' (3648 mm) to run
                  • Specify sensor mounts for slotted upright (B) or shelf (S)
                  • "Plug ‘n play" connections– no electrician required
                  • White color
                  • Not compatible with Lumiback or Lumishelfâ„¢
                  Part Number: LLMSA-(TYPE)
                  • LLMSA..... LEDge Light Motion Sensor Add-On Kit
                  • TYPE..... Sensor Mount Type: B=Slotted Upright S=Shelf
                  LLMSA-(TYPE)-LEDge Light Motion Sensor Add-On Kit

                   LEDge Light Power Supply

                  • UL Listed 100W power supply features nearly 90% efficiency through use of latest circuitry design
                  • 120V standard plug - no electrician required
                  • Maximum of 16 power supplies per 20 amp circuit
                  • Not compatible with Lumiback or Lumishelf™
                  Part Number: LLPS
                  • LLPS..... LEDge Light Power Supply
                  LLPS-LEDge Light Power Supply

                   LEDge Light Sensor Mounting Bracket

                  • Specify sensor mounts for slotted upright (B) or shelf (S)
                  Part Number: LLSMB-(TYPE)
                  • LLSMB..... LEDge Light Sensor Mounting Bracket
                  • TYPE..... Sensor Mount Type: B=Slotted Upright S=Shelf
                  LLSMB-(TYPE)-LEDge Light Sensor Mounting Bracket

                   LEDge Light Deck Support Mounting Clip

                  • Hardware pack included
                  Part Number: LLDSMC
                  • LLDS.....LEDge Light Deck Support
                  • MC.....Mounting Clip
                  LLDSMC-LEDge Light Deck Support Mounting Clip
                • Accessories for LEDge Light Gen 3

                  Reveal/Hide Accessories

                  LEDge Light Versa

                  • Hassle-free way to light an entire fixture run
                  • Quickly tweak the layout of a gondola section
                  • Versa Clips easily install to pre-existing LEDge light runs
                  • Patent pending
                  • For ordering information, please contact your sales consultant.
                  Part Number: Contact Sales Consultant
                    Contact Sales Consultant-LEDge Light Versa
                    Not compatible with Lumiback or Lumishelf accessories
