Tube Line Queuing FixtureLuxe Queuing Solutions

  • Tube Line Queuing Fixture

    Create a Queuing Area That Lifts Sales

    Streamline the checkout process, increase customer satisfaction, and boost sales with Madix’s queuing solutions! Our Luxe and Tube Line systems allow retailers to create customized queuing setups that draw attention to smaller SKUs and encourage impulse purchases.

    • Customizable system utilizes standard Maxi Line components
    • Create order and organization in the checkout area
    • Maxi Line Queuing Accessories draw attention to smaller SKUs

    Read recent articles about the importance of queuing in the retail industry from these publications: The Wall Street Journal and The Dallas Morning News.

  • Gallery

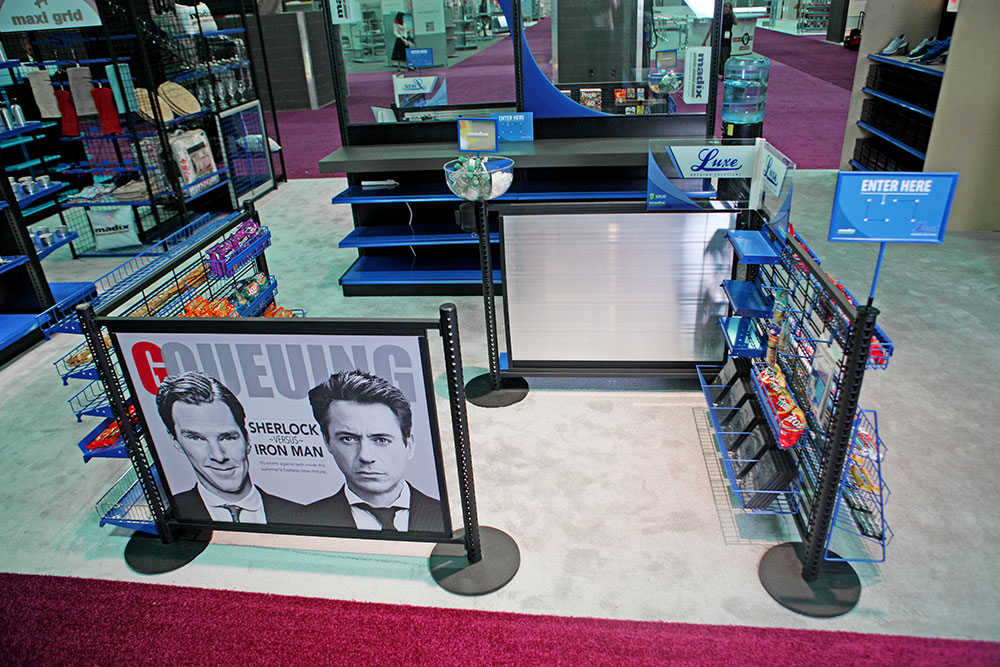

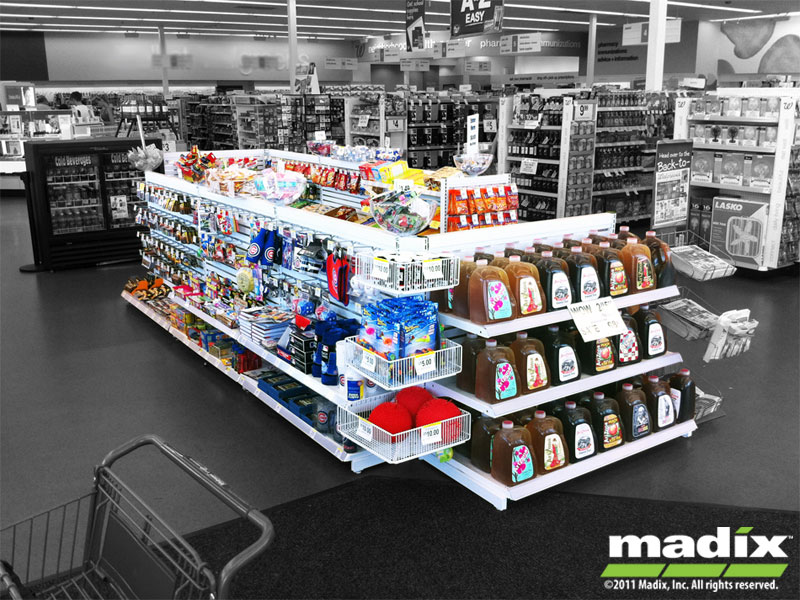

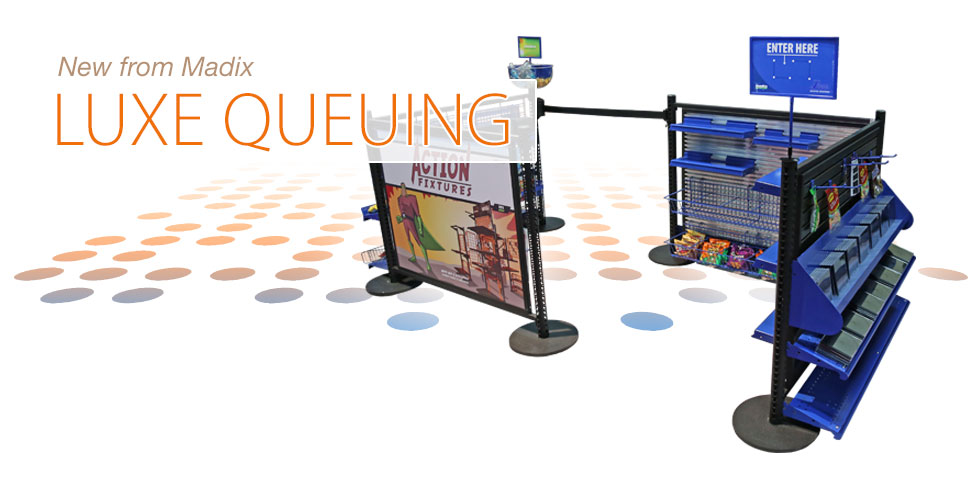

Luxe Queuing Solutions

  • Luxe Queuing Solutions

    Put method back into the madness of checkout lines! Madix’s Luxe Queuing Solution helps retailers boost sales by reducing wait time in the checkout area, improving customer satisfaction and strengthening brand loyalty. Our Luxe Queuing Solution feeds one line of customers to multiple registers in an orderly and efficient manner, minimizing customer frustration. And with the variety of configurations available, retailers have the flexibility to promote more impulse merchandise and services at a consistent exposure level. Our Luxe Queuing Solution offers almost all standard Madix shelves and accessories.

    Learn more about Luxe Queuing »
  • Luxe Queuing Solutions

    Queuing Accessories

  • Queuing System Bowl and Sign Holder

    Recently Added: Queuing Bowl and Sign Holder for Maxi Line and Luxe Queuing

    Learn More »

  • Components for Tube Line Queuing Fixture

    Reveal/Hide Components

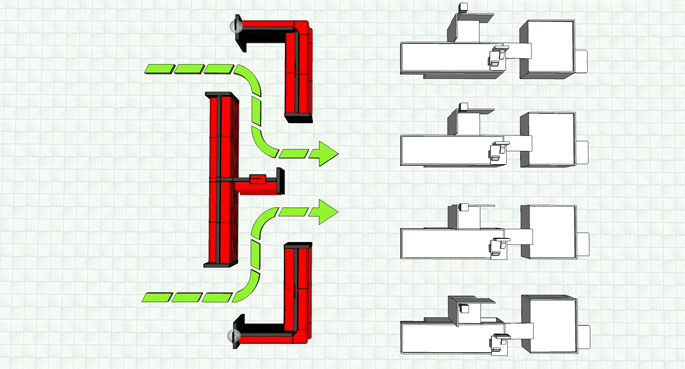

    Configuration A: Ideal for Larger Store Formats

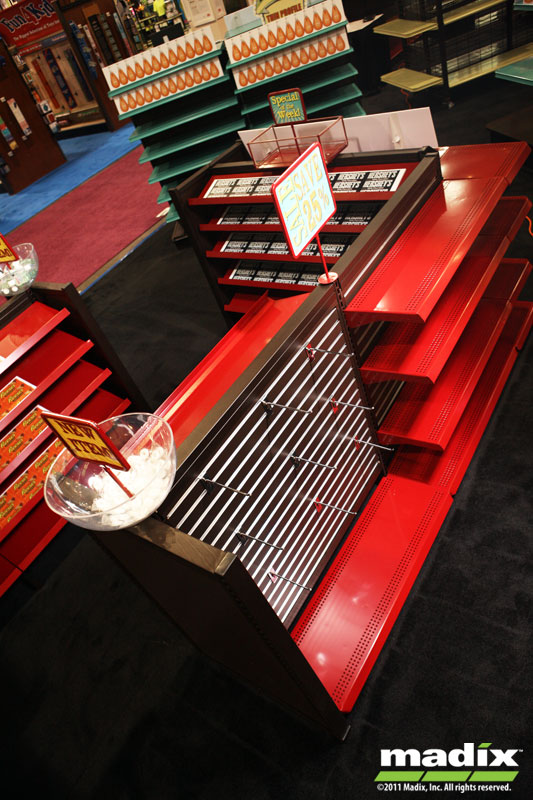

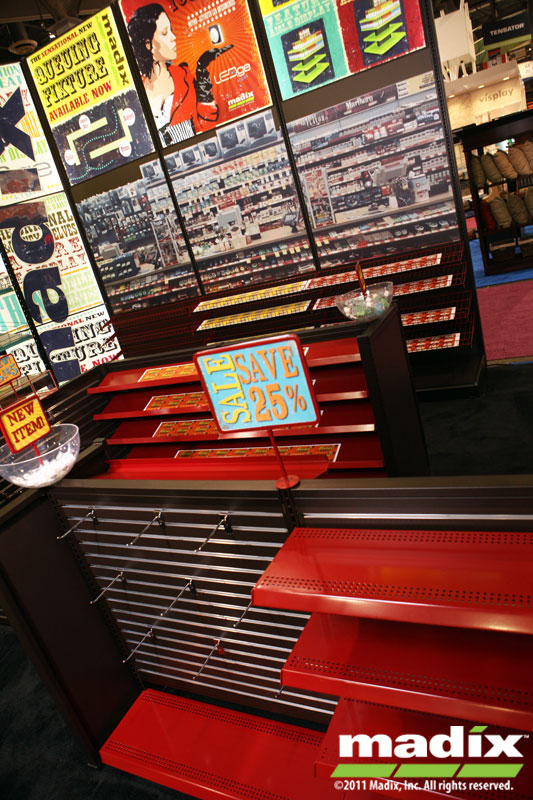

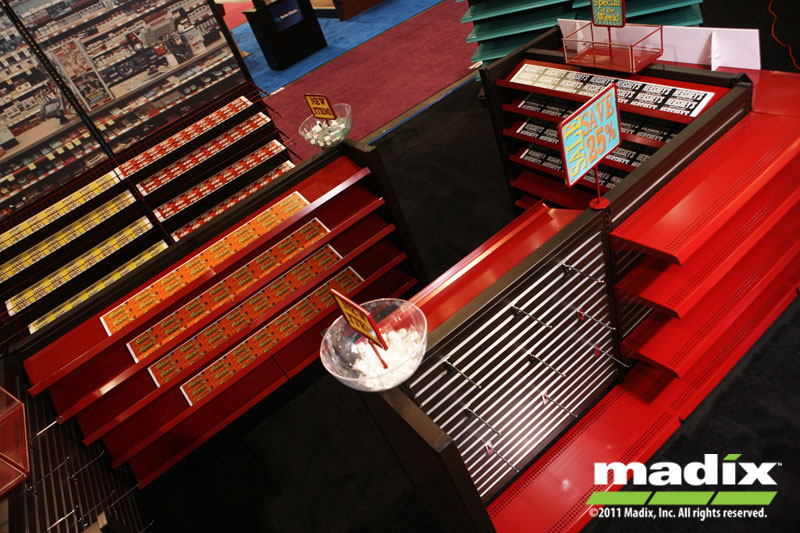

    Tube Line Queuing Fixture

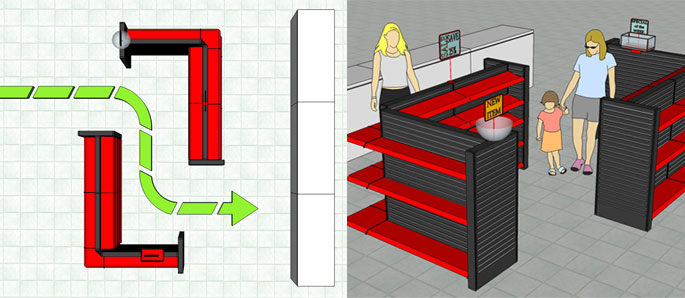

    Configuration B: Ideal for Smaller Store Formats

    Tube Line Queuing Fixture
    Part Number Part Description Quantity
    A TLTRQUE421010  Tube Line Queue Full Upright, End 6
    B  TLTRQUI421010  Tube Line Queue Full Upright, Intermediate 2
    C  TLTRQUR4210  Tube Line Queue Half Upright, Right 2
    D  TLTRQTB48  Tube Line Queue Tie Bar, 48" 4
    E  TLTRQTB36  Tube Line Queue Tie Bar, 36" 8
    F  TLTRQOCF42  Tube Line Queue Outside Corner Fill 42" 8
    G  TLTRQBSW24842  Tube Line Queue Slatwall Back 2" OC 4
    H  TLTRQBSW236448  Tube Line Queue Slatwall Back 2" OC 8
    I  TLTRQEF2441SWP2H  Tube Line Queue End Frame 2
    J  TLTRQABM11X7  Tube Line Queue Plastic Bowl Intermediate Mount 2
    K  TLTRQABM11X7EC  Tube Line Queue Plastic Bowl End Mount 2
    L  TLTRQABM3X4  Tube Line Queue Plastic Bowl Intermediate Mount 4
    M  TLTRQWAT  Tube Line Queue Wire Acrylic Trough with Sign 6
    N  TLSDTR4810  Tube Line Side Deck 2
    O  TLSDTR3610  Tube Line Side Deck 4
    P  TLMSD4808  Tube Line Metal Shelf with Double Perforations 4
    Q  TLMSD4810  Tube Line Metal Shelf with Double Perforations 4
    R  TLCSNT4808  Tube Line Candy Shelf 4
    S  TLCSNT4810  Tube Line Candy Shelf 8
    T WCANS  Wire Candy Shelf 8
    U  TLTRQOCBS10  Tube Line Queue Outside Corner Base 1
    V  TLTRQOCS10  Tube Line Queue Outside Corner Shelf 3
    W  Clear Plastic Bowl 2

     Tube Line Queue Full Upright

    • See chart for recommended quantities
    Part Number: TLTRQU(TYPE)(NH)(LS/RS)
    • TLTRQU... Tube Line T-Rack Queue Upright Full
    • TYPE... I=Intermediate, E=End
    • NH... Nominal Height 36"-72" in 6" increments (914 mm-1829 mm in 152 mm increments)
    • LS/RS... Left-Side/Right-Side 1010=10" (254 mm) 1212=12" (305 mm) 1414=14" (356 mm) 1616=16" (406 mm) 1818=18" (457 mm) 2020=20" (508 mm)
    TLTRQU(TYPE)(NH)(LS/RS)-Tube Line Queue Full Upright

     Tube Line Queue Half Upright

      Part Number: TLTRQU(TYPE)(NH)(ND)
      • TLTRQU... Tube Line T-Rack Queue Half Full
      • TYPE... I=Intermediate, R=Right, L=Light
      • NH... Nominal Height 36"-72" in 6" increments (914 mm-1829 mm in 152 mm increments)
      • ND... Nominal Depth 10"-20" in 2" increments (254 mm-508 mm in 51 mm)
      TLTRQU(TYPE)(NH)(ND)-Tube Line Queue Half Upright

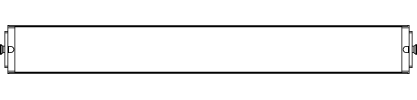

       Tube Line Queue Tie Bar

        Part Number: TLTRQTB(NW)
        • TLTRQU... Tube Line T-Rack Queue Tie Bar
        • NW... Nominal Width 12"-48" in 6" increments (305 mm-1219 mm in 152 mm)
        TLTRQTB(NW)-Tube Line Queue Tie Bar

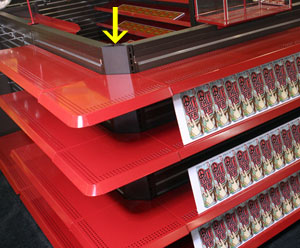

         Tube Line Queue Outside Corner Fill

          Part Number: TLTRQOCF(NH)
          • TLTRQ... Tube Line T-Rack Queue
          • OCF... Outside Corner Fill
          • NH... Nominal Width 42" (1067 mm)
          TLTRQOCF(NH)-Tube Line Queue Outside Corner Fill

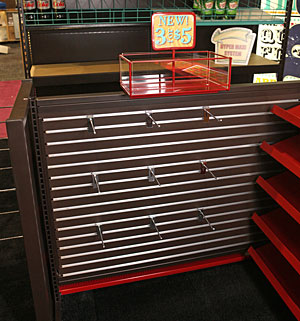

           Tube Line Queue Slatwall Back

          • 2" OC
          Part Number: TLTRQUBSW2(NW)(NH)
          • TLTRQU... Tube Line T-Rack Queue
          • BSW... Slatwall Back
          • NW... Nominal Width 18"-42" in 6" increments (457 mm-1067 mm in 152 mm)
          • NH... Nominal Height 36"-72" in 6" increments (914 mm-1829 mm in 152 mm increments)
          TLTRQUBSW2(NW)(NH)-Tube Line Queue Slatwall Back

           Tube Line Queue End Frame

          • 2" OC
          Part Number: TLTRQEF(NW)(NH)SWP2H
          • TLTRQU... Tube Line T-Rack End Frame
          • NW... Nominal Width 24"-48" in 6" increments (610 mm-1219 mm in 152 mm)
          • NH... Nominal Height 36"-72" in 6" increments (914 mm-1829 mm in 152 mm increments)
          TLTRQEF(NW)(NH)SWP2H-Tube Line Queue End Frame

           Tube Line Queue Plastic Bowl Mount

          • Use to mount bowl or use as sign only
          Part Number: TLTRQABM(OPT1)(OPT2)
          • TLTRQ... Tube Line T-Rack Queue Plastic Bowl Mount
          • OPT1... 3X4, 11X7
          • OPT2... Blank=Intermediate Mount, EC=End Cap Mount
          TLTRQABM(OPT1)(OPT2)-Tube Line Queue Plastic Bowl Mount

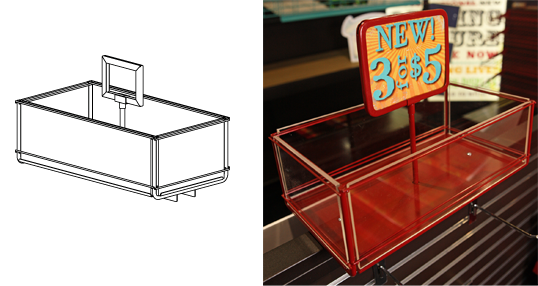

           Tube Line Queue Wire Acrylic Trough with Sign

          • 16 1/4"W x 8 3/4"D x 5 1/2H" (413 mm x 222 mm x 140 mm)
          • Mounts to tie bar with screw
          Part Number: TLTRQWAT
          • TLTRQWAT... Tube Line T-Rack Queue Wire Acrylic Trough with Sign
          TLTRQWAT-Tube Line Queue Wire Acrylic Trough with Sign

           Tube Line Side Deck

          • Systems can be used with or without Side Decks
          • Depth of each Side Deck ordered must match the greatest depth for each side of the T-Rack unit
          Part Number: TLSDTR(NW)(ND)
          • TLSDTR... Tube Line T-Rack Side Deck
          • NW... Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
          • ND... Nominal Depth 8" to 42" in 2" increments (203 mm to 1067 mm in 51 mm increments)
          TLSDTR(NW)(ND)-Tube Line Side Deck

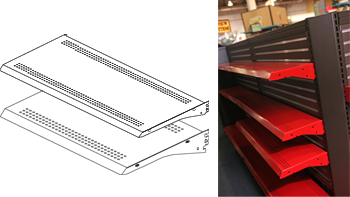

           Tube Line Metal Shelves

          • Each metal shelf deck has three rows of diamond perforations, spaced 1/2" OC
          • Brackets are three position: flat, 15° down slope and 12° up-tilt
          Part Number: TLMSD(NW)(ND)
          • TLMSD... Tube Line Metal Shelf Double Perforations
          • NW... Nominal Width 24", 30", 36", 48" (610 mm, 762 mm, 914 mm, 1219 mm)
          • ND... Nominal Depth 10" to 24" in 2" increments (254 mm to 610 mm in 510 mm increments)
          TLMSD(NW)(ND)-Tube Line Metal Shelves

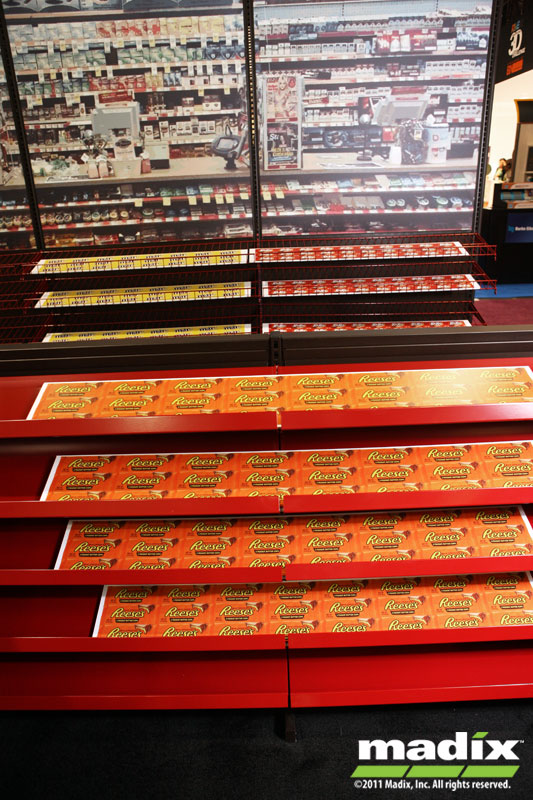

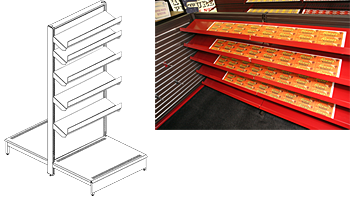

           Tube Line Candy Shelves

          • Customize candy aisles or specialty end cap displays
          • 15° down tilt keeps products fronted
          • Front lip serves as a retainer to keep merchandise from sliding off the shelf
          • Load capacity 75 lbs
          Part Number: TLCSNT(NW)(ND)
          • TLCSNT... Tube Line Candy Shelf No Tag
          • NW... Nominal Width 24", 30", 36", or 48" (610 mm, 762 mm, 914 mm, 1219 mm)
          • ND... Nominal Depth 4"-12" in 2" increments (102 mm-305 mm in 51 mm increments)
          TLCSNT(NW)(ND)-Tube Line Candy Shelves

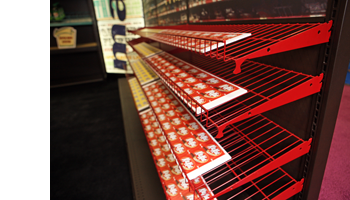

           Wire Candy Shelves

            Part Number: WCANS
              WCANS-Wire Candy Shelves

               Tube Line Queue Outside Corner Base

                Part Number: TLTRQOCBS(ND)
                • TLTRQ... Tube Line T-Rack Queue
                • OCBS... Outside Corner Base Shelf
                • ND... Nominal Depth 10" to 18" in 2" increments (254 mm to 457 mm in 51 mm increments)
                TLTRQOCBS(ND)-Tube Line Queue Outside Corner Base

                 Tube Line Queue Upper Shelf

                  Part Number: TLTRQOCS(ND)
                  • TLTRQ...Tube Line T-Rack Queue
                  • OCBS... Outside Corner Shelf
                  • ND... Nominal Depth 10" to 18" in 2" increments (254 mm to 457 mm in 51 mm increments)
                  TLTRQOCS(ND)-Tube Line Queue Upper Shelf

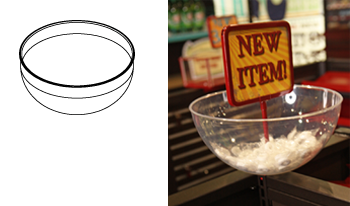

                   Clear Plastic Bowl

                  • Approximately 12" x 6"H (305 mm x 152 mm)
                  Part Number:
                    -Clear Plastic Bowl
