  • Maxispan

    Maxispan shelving is the most effective use of floor space for above display storage. It completely spans continuous Gondola runs when Hypermaxi's height precludes its use and yet it still gives you the load capacity of our Pallet Rack system. High load capacity and space saving efficiency in a single highly customizable solution.

    • Maxispan must be anchored to floor
    • Each frame requires 4 anchors

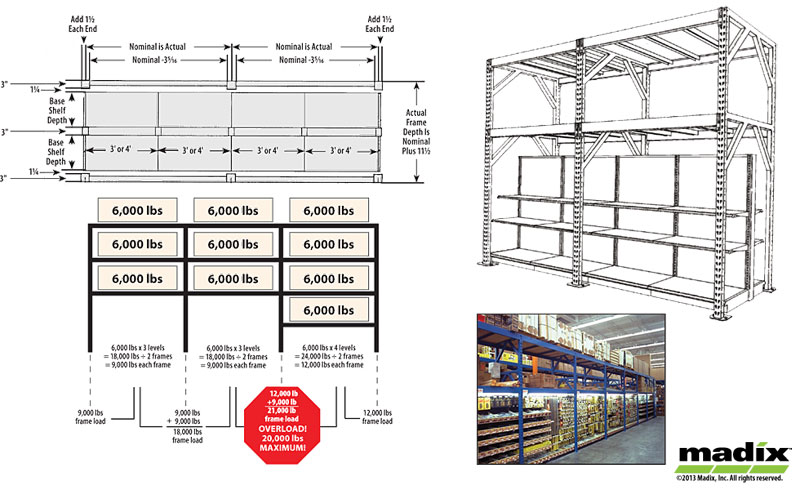

    • Maxispan column load capacity is 20,000 lbs. Use this figure in the column loading chart to determine the beam loading per section, or consult your Madix representative for specific capacities for your application
    • Spacing over 48" (1219 mm) vertically reduces column load capacity due to lack of support to channel
    • When lowest beam is 48" (1219 mm) or higher from floor, always secure frame to floor

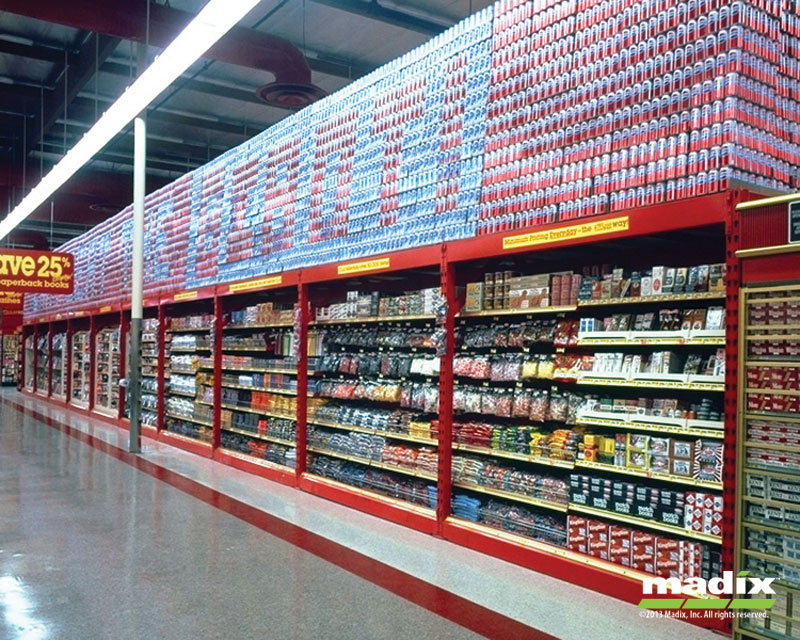

  • Gallery

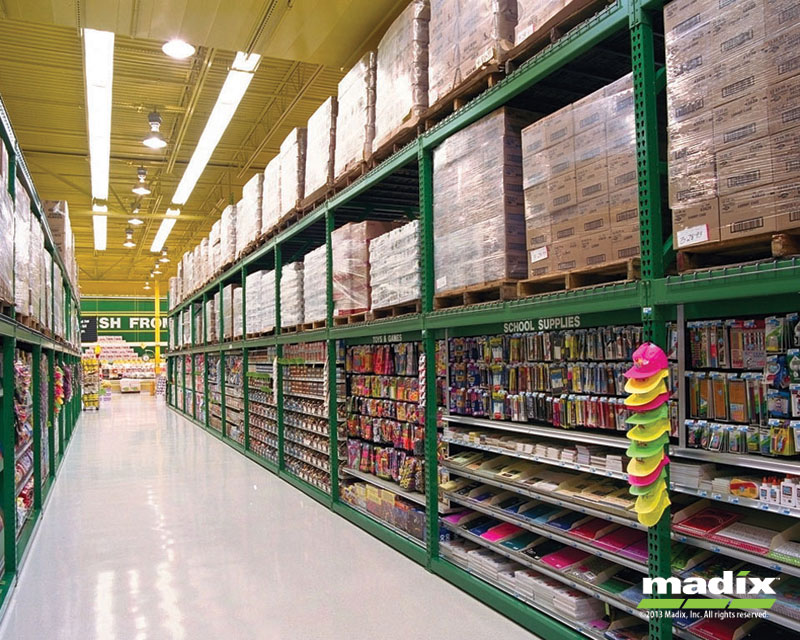

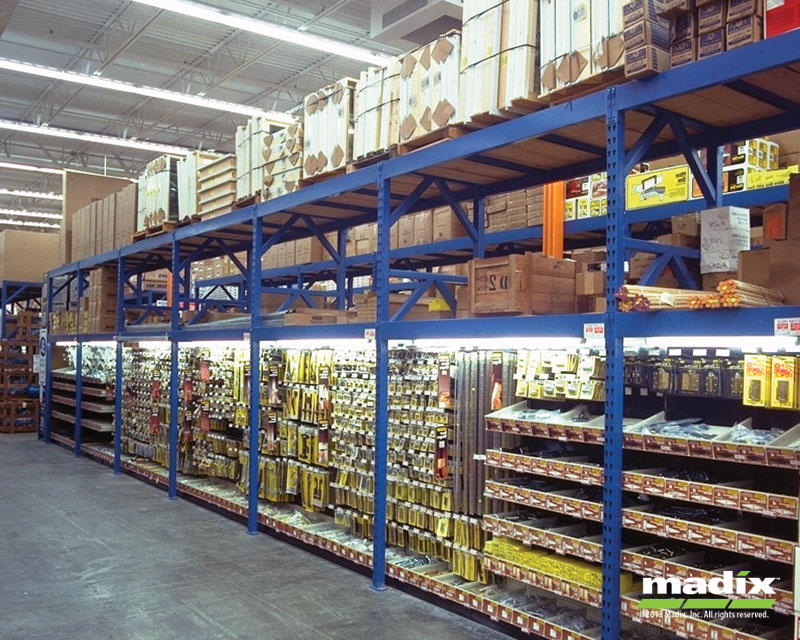

Maxispan by Madix, Inc.

  • Components for Maxispan

    Reveal/Hide Components

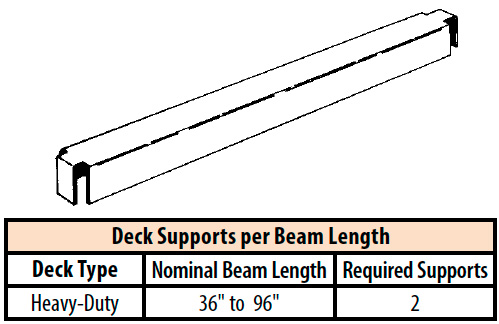

     Deck Supports

    • Formed heavy gauge steel with tabs fit into beam slots
    • Supports regular-duty decking
    • Ties heavy-duty decking beams together to prevent rotation
    • Order by frame depth, in quantities shown in table
    • Standard finish: Sahara or Blue Gray
    Part Number: MMSDS-(ND)
    • MMS......Maxispan 2" OC (51 mm)
    • DS......Deck Support
    • ND......Nominal Frame Depth 36", 40", 44", 48", 60" (914 mm, 1016 mm, 1118 mm, 1219 mm, 1524 mm)
    MMSDS-(ND)-Deck Supports

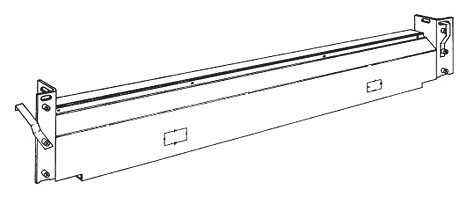

     Maxispan Base Deck Beam

    • Resists damage from carts and polishers
    • Used at floor level to form kickplate
    • Prevents trash from collecting under bottom deck
    • Standard finishes: Sahara or Blue Gray
    Part Number: MS2BDB-(NL)
    • MS2......Maxispan
    • BDB......Base Deck Beam
    • NL......Nominal Length 36" to 96" in 12" increments (914 mm to 2438 mm in 305 mm increments)
    MS2BDB-(NL)-Maxispan Base Deck Beam

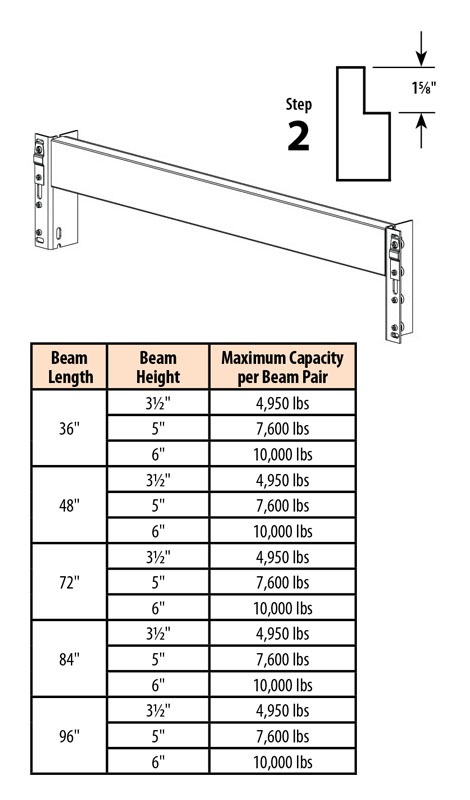

     Maxispan Beams

    • Available in three heights for differing load capacities
    • Sized to place Uprights on 3', 4', 6', 7', or 8' (914 mm, 1219 mm, 1829 mm, 2134 mm, or 2438 mm) center lines
    • Standard finish: Sahara or Blue Gray
    Part Number: MS2B(NH)(NL)-2
    • MS2......Maxispan 2" OC (51 mm)
    • B......Beam
    • NH......Nominal Beam Height 3 1/2", 5", 6" (89 mm, 127 mm, 152 mm)
    • NL......Nominal Beam Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2436 mm)
    • 2......2=1 5/8" (41 mm)
    MS2B(NH)(NL)-2-Maxispan Beams

     Maxispan Flush Deck Support

    • Load bearing pallet support
    • Use one pair per pallet
    • Fits flush with top of beam
    • Load capacity 5,000 lbs/pair
    • Standard finishes: Sahara or Blue Gray
    Part Number: MMSDSF(ND)2
    • MMSDSF......Maxispan Flush Deck Support
    • ND......Nominal Frame Depth 36", 40", 44", 48", 60" (914 mm, 1016 mm, 1118 mm, 1219 mm, 1524 mm)
    • 2......2=1 5/8" (41 mm)
    MMSDSF(ND)2-Maxispan Flush Deck Support

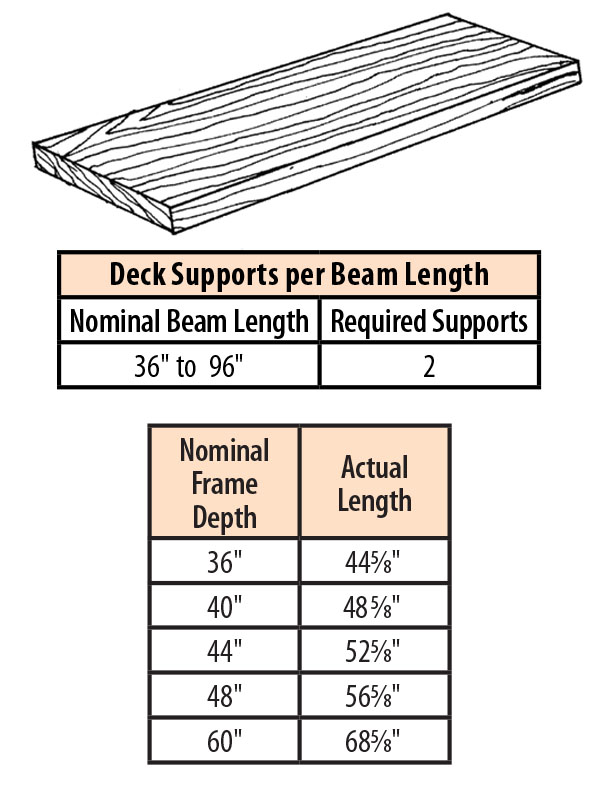

     Maxispan Heavy-Duty Decking

    • Unfinished 2" (51 mm) dimensional lumber provides high load capacity
    • Use with 2" (51 mm) style beams only
    • Order by upright depth
    • Use with Maxispan Deck Supports [MMSDS-(ND)]
    Part Number: MMSHDD-(ND)
    • MMS......Maxispan
    • HDD......Heavy-Duty Deck
    • ND......Nominal Frame Depth 36", 40", 44", 48", 60" (914 mm, 1016 mm, 1118 mm, 1219 mm, 1524 mm)
    MMSHDD-(ND)-Maxispan Heavy-Duty Decking
    Deck Supports are NOT included!

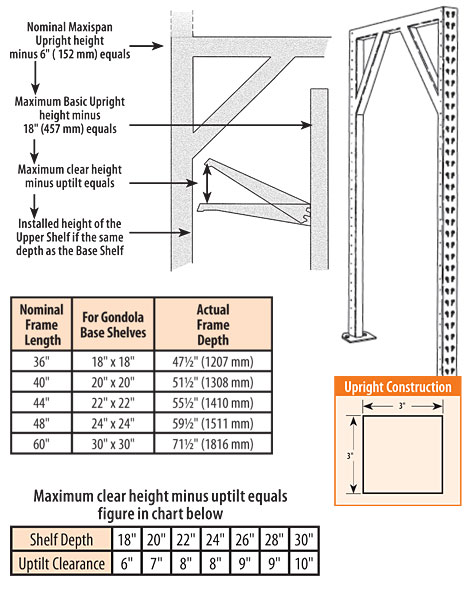

     Maxispan Uprights

    • Maxispan Uprights heights 84" to 144" (2134 mm to 3658 mm) fit over Gondolas Base Shelves 18" to 30" (457 mm to 762 mm) in depth
    • Maxispan column load capacity is 20,000 lbs
    • Standard finishes: Sahara or Blue Gray
    Part Number: MS2U(NH)-(ND)
    • MS2......Maxispan 2" OC (51 mm)
    • U......Upright
    • NH......Nominal Frame Height 84" to 144" in 6" increments (2134 mm to 3658 mm in 152 mm increments)
    • ND......Nominal Frame Depth 36", 40", 44", 48", 60" (914 mm, 1016 mm, 1118 mm, 1219 mm, 1524 mm)
    MS2U(NH)-(ND)-Maxispan Uprights
    To preclude overturning, the frame depth x 6 cannot exceed the height of the topmost loaded beam pair, unless all the frames are properly anchored or braced externally.

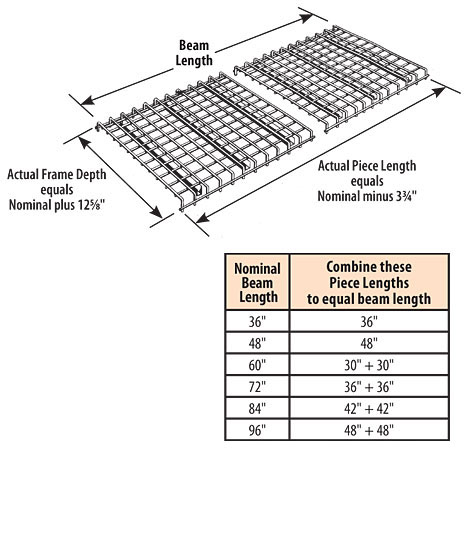

     Maxispan Waterfall Wire Grid Decks

    • Sturdy-gauge wire, 5/16" (8 mm) in diameter, is welded on 3" (76 mm) grid centers to form decking
    • Integrated supports eliminate standard deck supports
    • Standard finishes: Silver Vein, Sahara, or Blue Gray
    Part Number: MSWFWGD(ND)(NL)-3
    • MS......Maxispan
    • WF......Waterfall
    • WGD......Wire Grid Deck
    • ND......Nominal Frame Depth 36", 40", 48", 56", 60" (914 mm, 1016 mm, 1219 mm, 1422 mm, 1524 mm)
    • NL......Nominal Piece Length 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
    • 3......Grid Size 3" OC (76 mm)
    MSWFWGD(ND)(NL)-3-Maxispan Waterfall Wire Grid Decks

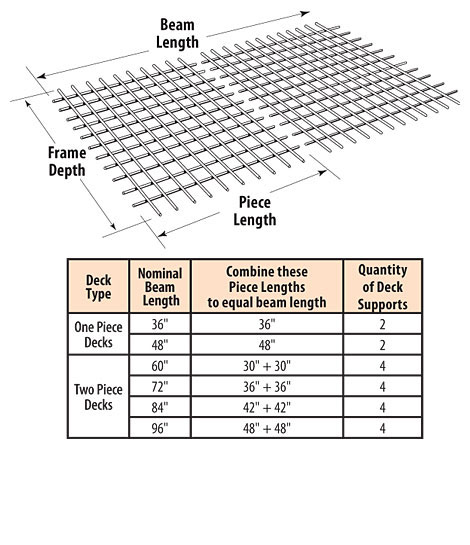

     Maxispan Wire Grid Decks

    • Sturdy-gauge wire, 5/16" (8 mm) in diameter, is welded on 3" (76 mm) grid centers to form decking
    • Wire grid piece length runs parallel to beam length
    • Standard finishes: Silver Vein, Sahara, or Blue Gray
    • Order deck supports separately
    • Use Maxispan Deck Support [DSRMS-(ND)-1] only
    Part Number: MSWMS(ND)(NL)-3
    • MS......Maxispan
    • WMS......Wire Grid Deck
    • ND......Nominal Frame Depth 36", 40", 44", 48", 60" (914 mm, 1016 mm, 1118 mm, 1219 mm, 1524 mm)
    • NL......Nominal Piece Length 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
    • 3......Grid Size 3" OC (76 mm)
    MSWMS(ND)(NL)-3-Maxispan Wire Grid Decks
    Deck Supports are NOT included!

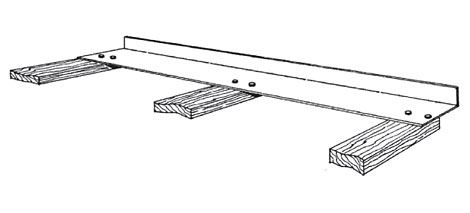

     Pallet Stop

    • Heavy-gauge angle aids in pallet positioning
    • Easily attaches to decking or beam with supplied hardware
    • Standard finishes: Sahara or Blue Gray
    Part Number: PRPS-(NL)
    • PRPS......Pallet Rack Pallet Stop
    • NL......Nominal Length 36" to 96" in 12" increments (914 mm to 2438 mm in 305 mm increments)
    PRPS-(NL)-Pallet Stop

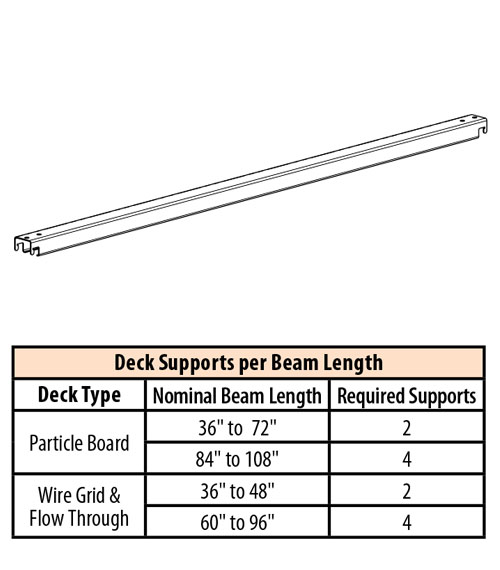

     Maxispan Deck Support

    • For 5/8" (16 mm) deck
    • Formed, heavy-gauge steel with tabs fits into beam slots, providing support for regular-duty decking or, in heavy-duty applications, to tie beams together to prevent rotation
    • Order by frame depth, in quantities shown in table on right
    • Standard finishes: Sahara or Blue Gray
    Part Number: DSRMS-(ND)-1
    • DSRMS......Deck Supports for Maxispan
    • ND......Nominal Depth 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
    DSRMS-(ND)-1-Maxispan Deck Support
