Concave Radius ShelvingDraw Attention to Merchandise

  • Concave Radius Shelving

    Draw Attention to Merchandise

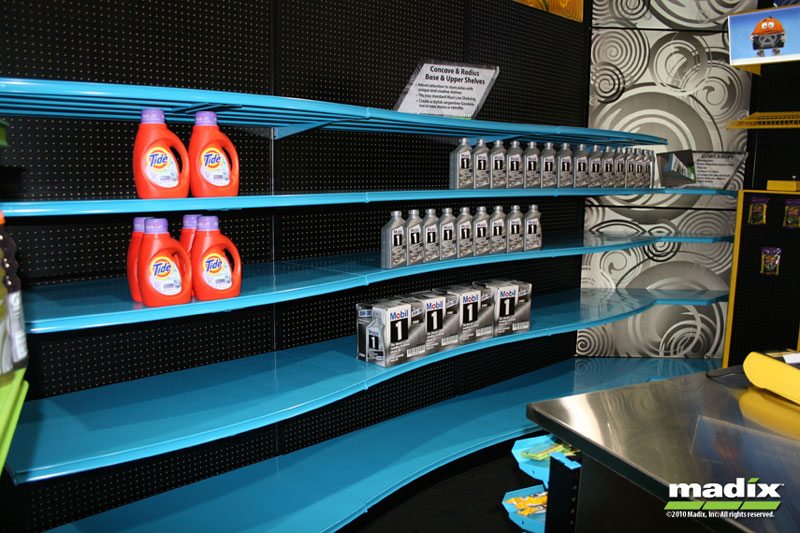

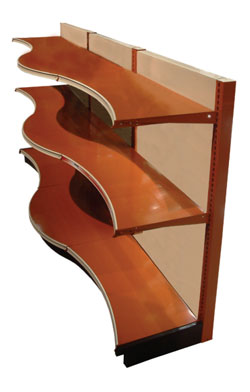

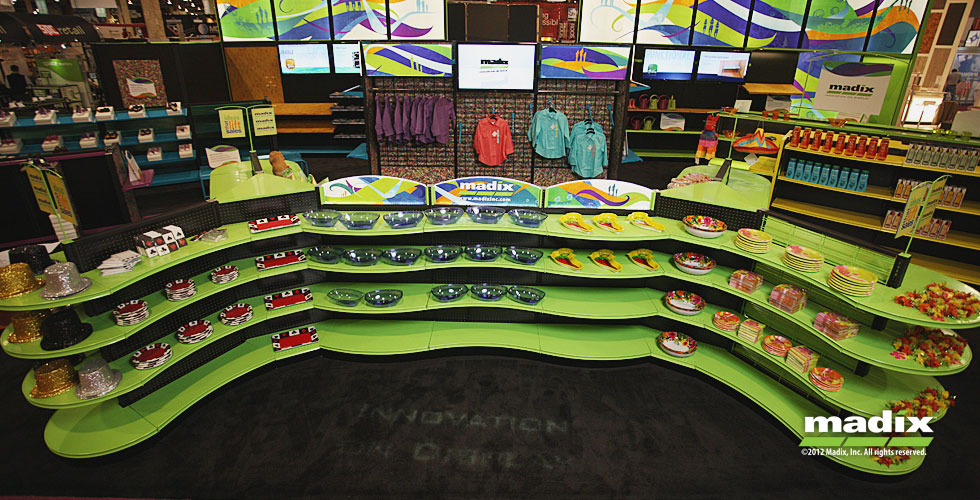

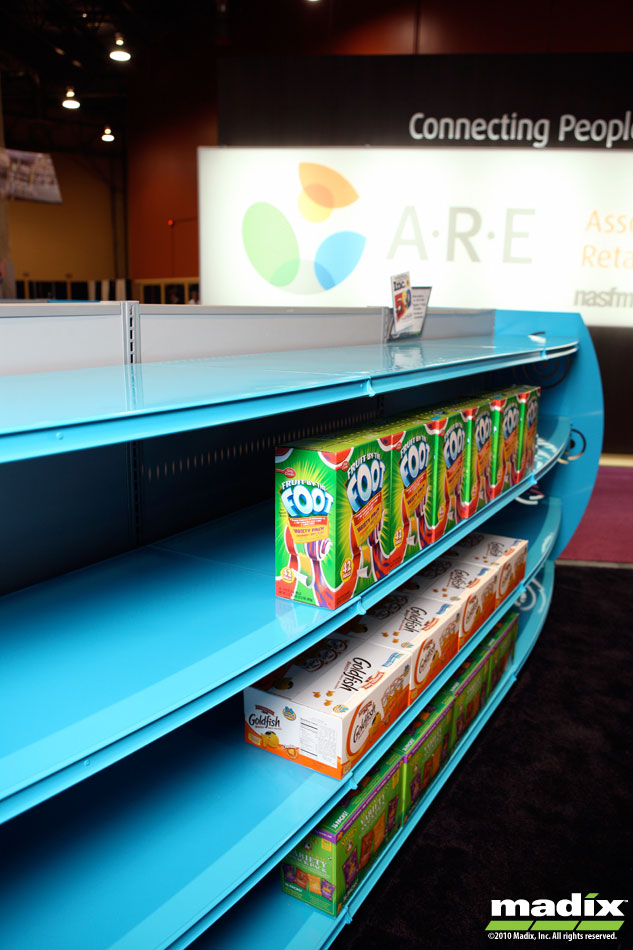

    Madix is a pioneer at utilizing curves in display shelving. It was the first to manufacture curved shelves for gondola/wall systems. The curved alternatives add pizazz to otherwise straight lines, and they draw attention to merchandise. Madix's patented Concave/Radius Shelving pairs Radius Shelves with Concave Shelves to create runs that undulate. Even the kickplates curve to match the shelves' shapes. The marriage of the two types of shelves forms Concave/Radius' attention-grabbing forms.

    • An innovative way to highlight a new product, a hot sale item or perhaps an entire line of merchandise
    • Load capacity: 10"-24" 500 lbs per shelf 26"-30" 400 lbs per shelf
    • Ledge load capacity 50 lbs

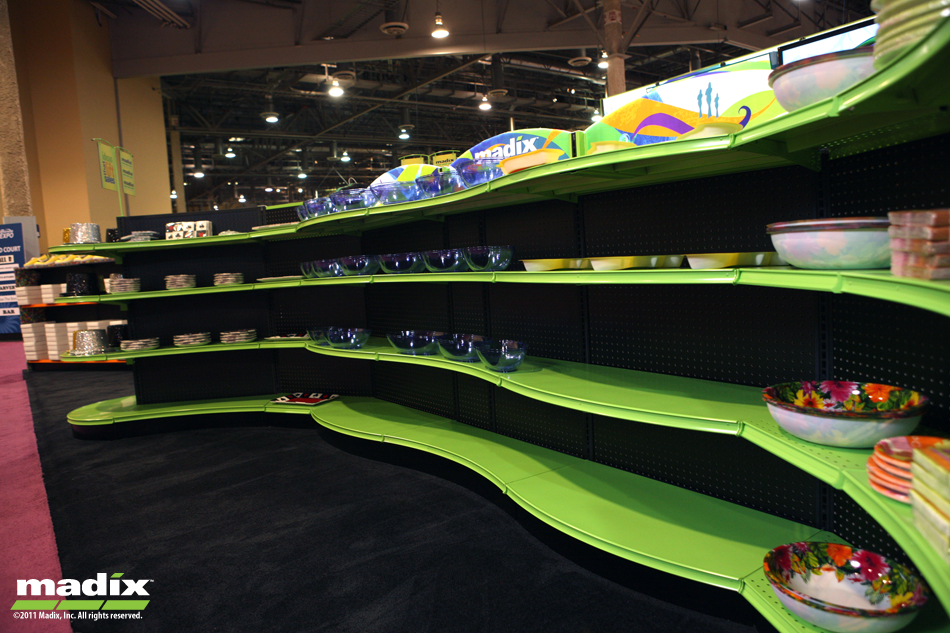

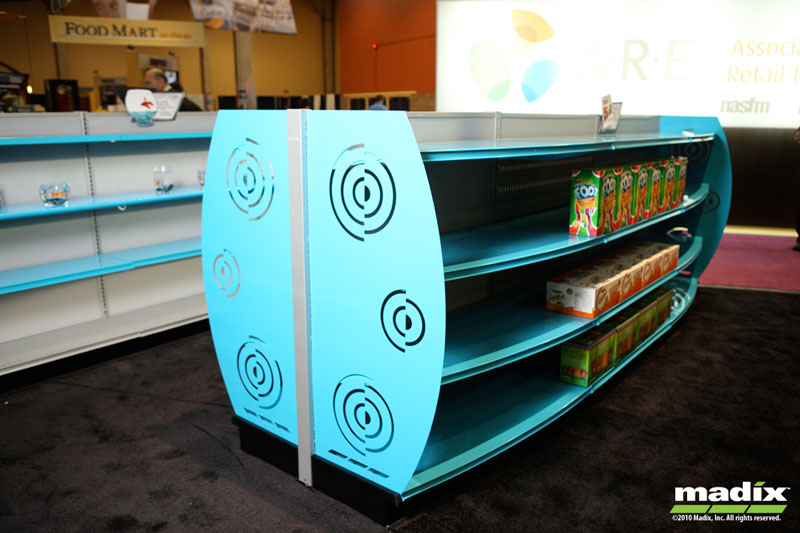

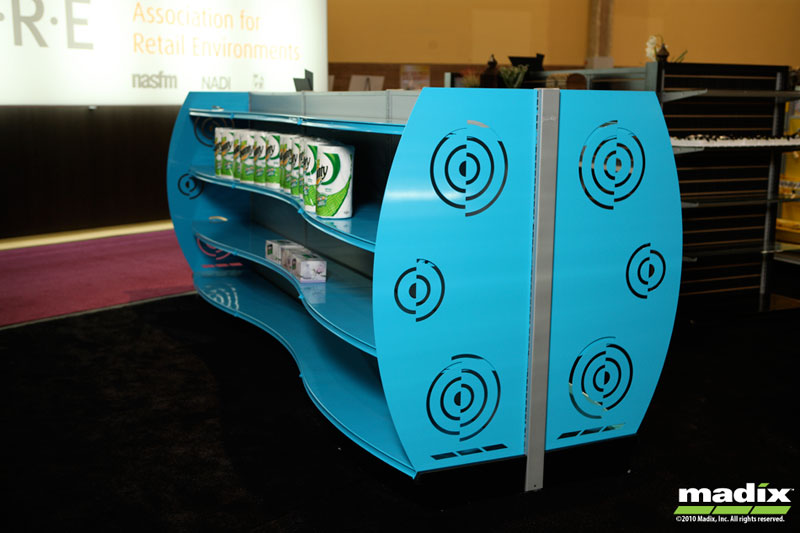

    • Create eye-catching end cap displays

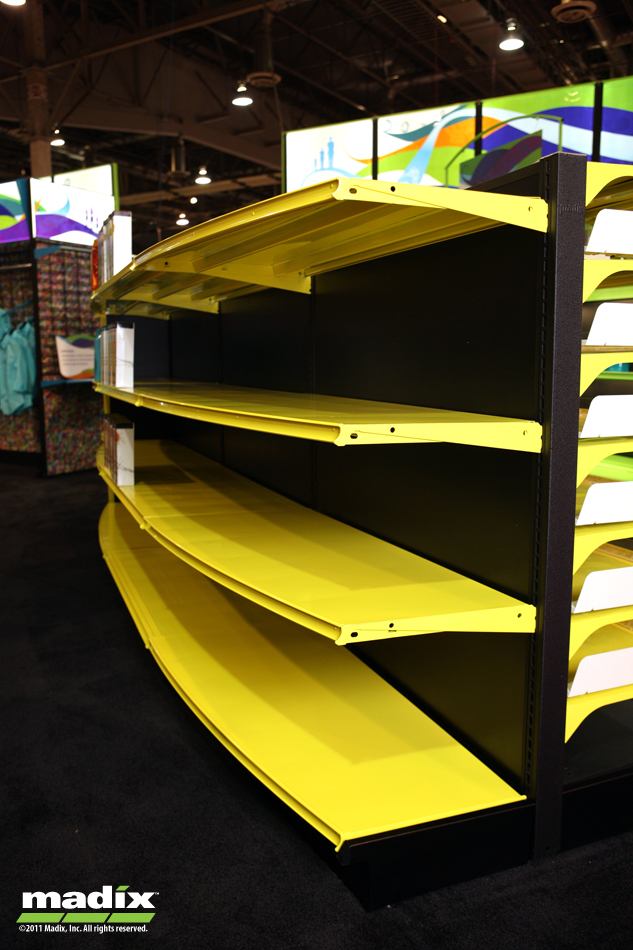

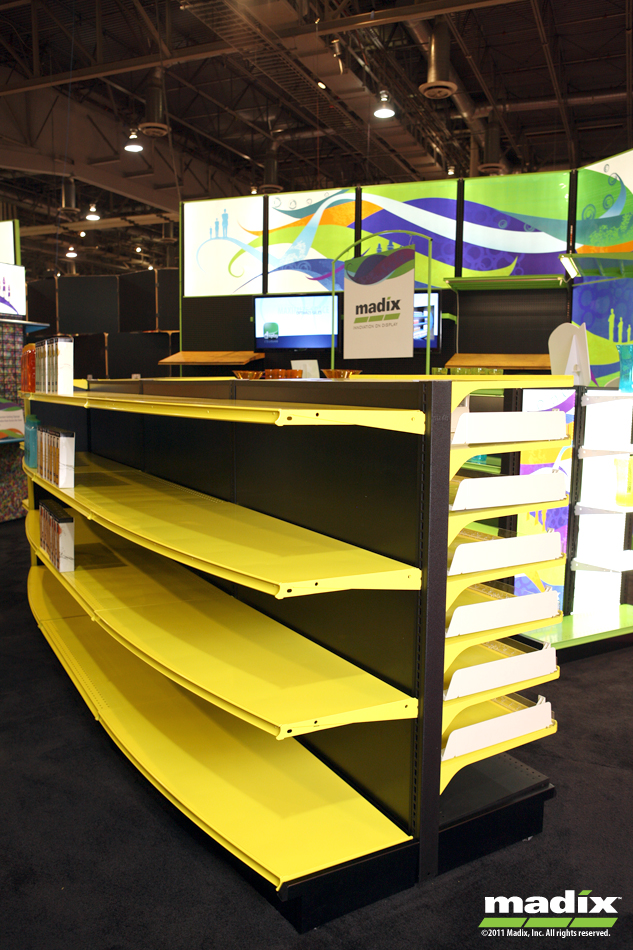

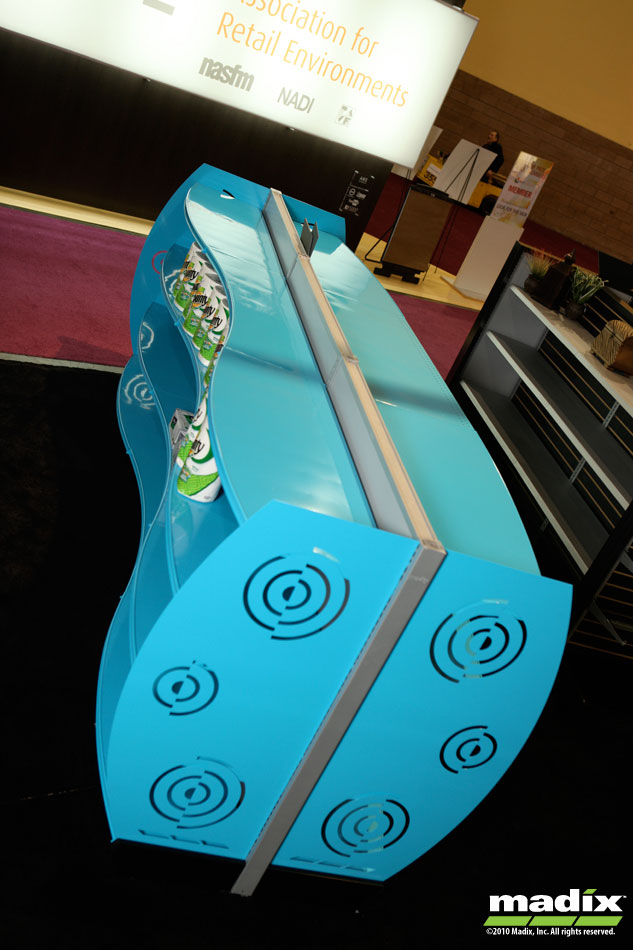

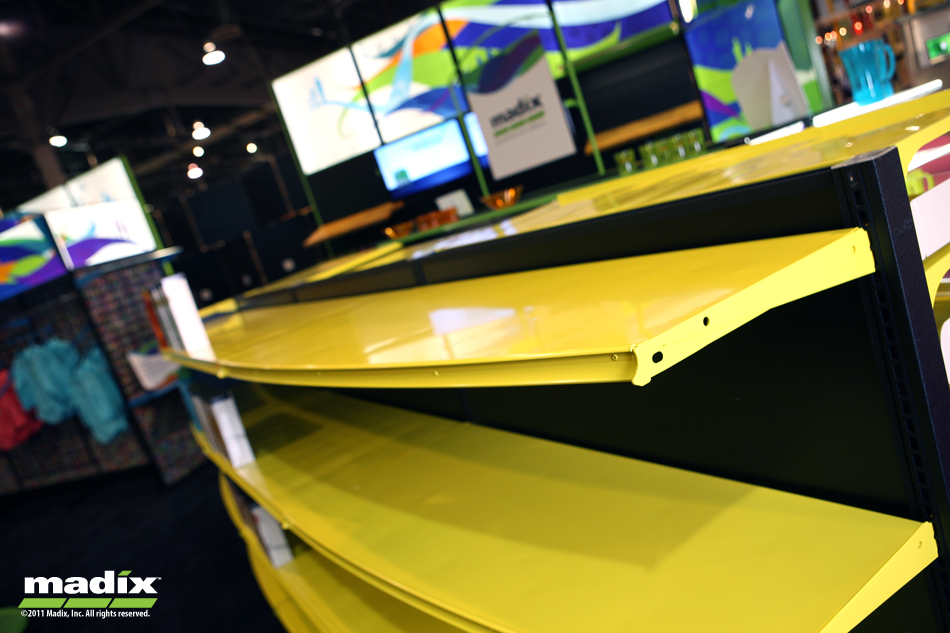

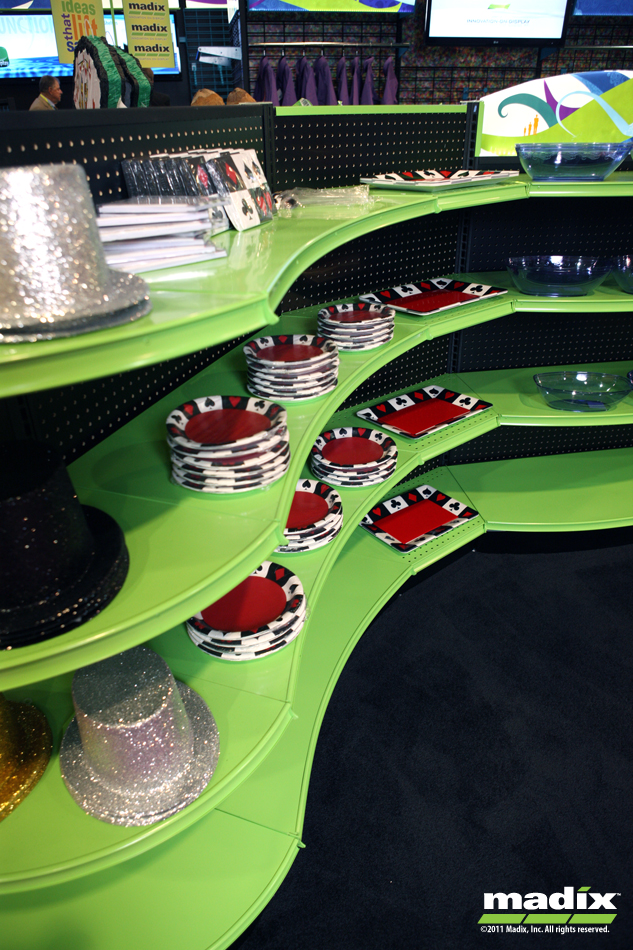

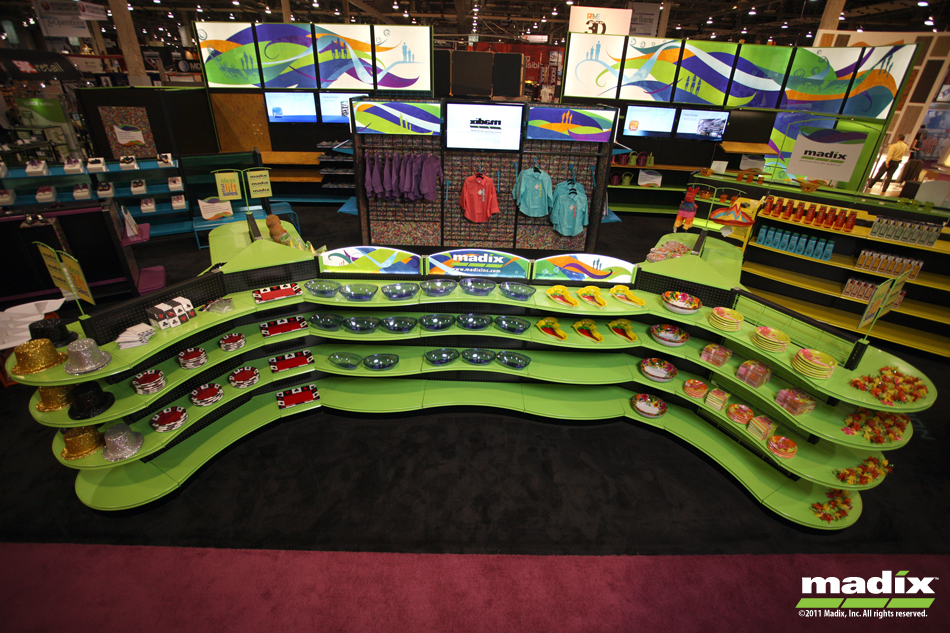

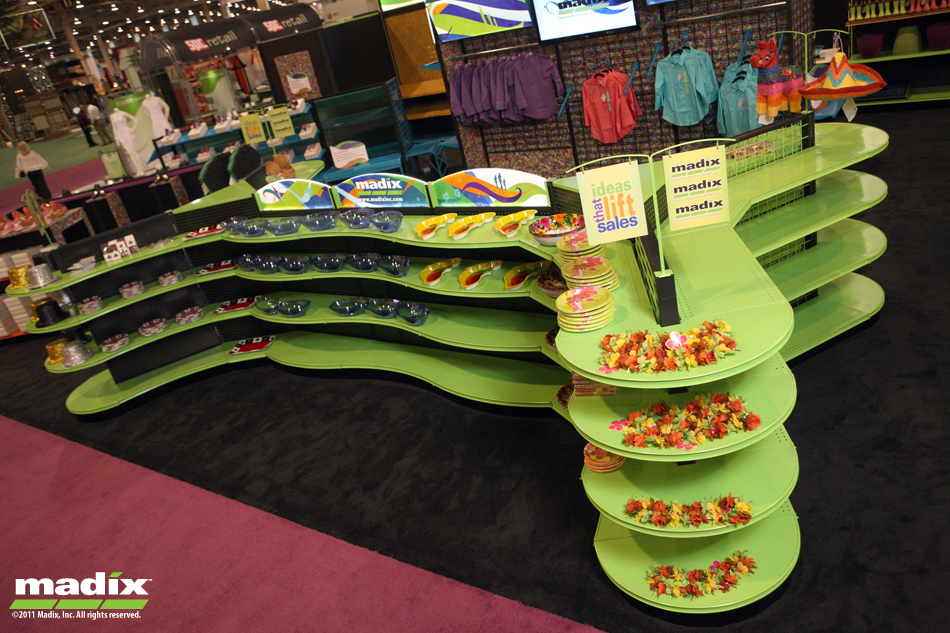

  • Gallery

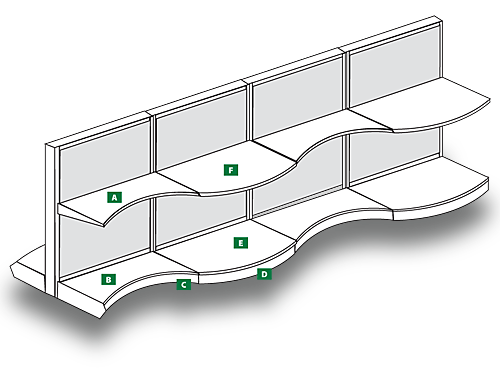

  • Part Description Part Number
    A Concave Upper Shelf SUSMRFC(NW)(ND)-3-(TAG)
    B Concave Base Shelf SBSMRFC(NW)(ND)-3-(TAG)
    C Concave Kickplate SBSMRFCKP03-(NW)
    D Radius Kickplate SBSMRFKP-(NW)-3
    E Radius Base Shelf SBSMRF-(NW)(ND)-3-(TAG)
    F Radius Upper Shelf SUSMRF-(NW)(ND)-3-(TAG)
  • C

  • Components for Concave Radius Shelving

    Reveal/Hide Components

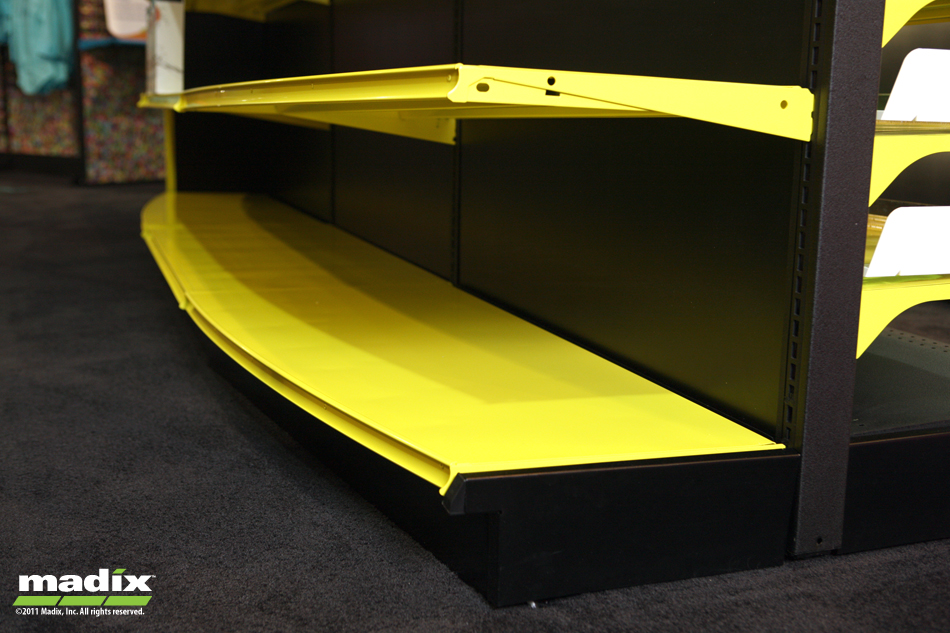

     Concave Kickplate

    • Install by snapping into Base Shoes without removing Base Shelves
    • Center portion of Kickplate 2" or 3" (51 mm or 76 mm) less than Base Shoes used for unit
    • Curve matches Radius Base Shelf
    Part Number: SBSMRFCKP(ID)-(NW)
    • SBS......Standard Base Shelf
    • MRFC...... Multi Radius Front Concave
    • KP......Kickplate
    • ID...... Inversion Depth 2" or 3" (51 mm or 76 mm)
    • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
    SBSMRFCKP(ID)-(NW)-Concave Kickplate

     Standard Base Shelf Multi Radius Front Kickplate

    • Install by snapping into Base Shoes without disturbing Base Shelves
    • Center portion measures 2" or 3" (51 mm or 76 mm) greater than Base Shoes used for unit
    • Curve matches Radius Base Shelf
    Part Number: SBSMRFKP-(NW)-(OPT)
    • SBS......Standard Base Shelf
    • MRF......Multi Radius Front
    • KP......Kickplate
    • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
    Options
    • OPT...... Extension Option 2" or 3" (51 mm or 76 mm)
    SBSMRFKP-(NW)-(OPT)-Standard Base Shelf Multi Radius Front Kickplate

     Standard Upper & Base Shelf with Multi Radius Concave Front

    • Draws customers’ attention to merchandise
    • Gradual inward curve 2" or 3" (51 mm or 76 mm) less than depth of brackets at curve vertex
    • Load capacity is 500 lbs

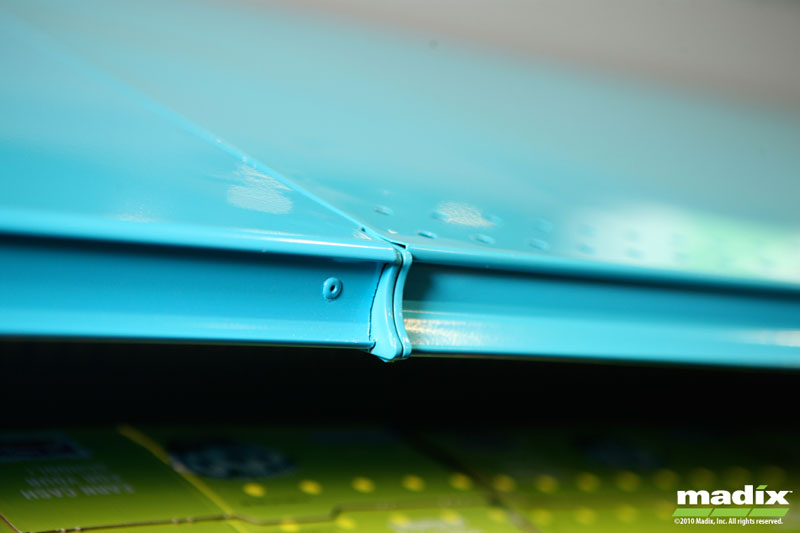

    • Standard DGA2 Tag Molding built into each shelf available in satin, gold, or customer’s choice of finish
    • Patented
    Part Number: (OPT)MRFC(NW)(ND)-(ID)
    • OPT......SUS=Upper Shelf SBS=Base Shelf
    • MRFC...... Multi Radius Concave Front
    • NW......Nominal Width 24", 36" or 48" (610 mm, 914 mm or 1219 mm)
    • ND......Nominal Depth 10" to 24" in 2" increments (254 mm to 610 mm in 51 mm increments)
    • ID...... Inversion Depth 2" or 3" (51 mm or 76 mm)
    (OPT)MRFC(NW)(ND)-(ID)-Standard Upper & Base Shelf with Multi Radius Concave Front

     Standard Upper & Base Shelf with Multi Radius Front

    • Innovative way to highlight a new product, hot sale item or an entire line of merchandise
    • May be used in Madix standard Maxi Line fixtures, in line with Standard Upper Shelf and Standard Base Shelf to make a section stand out
    • When used on both sides of an aisle, a unique scalloped effect is attained
    • May also be used with end merchandisers to create eye-catching end cap displays that highlight new products or sale items
    • Load capacity: 10"-24" 500 lbs per shelf 26"-30" 400 lbs per shelf
    • Ledge load capacity 50 lbs
    • Laminate finish available
    • Radius Front Base Shelves are ordered by: 1. Deleting Standard Base Shelves from a standard wall or gondola section 2. Ordering the correct number of Radius Front Base Shelves All other section parts remain standard
    Part Number: (OPT)MRF-(NW)(ND)-(ED)
    • OPT......SUS=Standard Upper Shelf SBS=Standard Base Shelf
    • MRF......Multi Radius Front
    • NW......Nominal Width 24" to 60" in 6" increments (610 mm to 1524 mm in 152 mm increments)
    • ND......Nominal Depth 08" to 30" in 2" increments (203 mm to 762 mm in 51 mm increments)
    • ED......Extension Depth 02" or 03" (51 mm or 76 mm)
    (OPT)MRF-(NW)(ND)-(ED)-Standard Upper & Base Shelf with Multi Radius Front
    Not available in Flush Front. Must use SUSRF in line with SUS Style Shelves. Must use STPSRF with STP Style Shelves.

     Standard Upper & Base Shelf with Radius Front

    • Gradual outward curve 6" (152 mm) greater than depth of brackets at curve vertex
    • Available in Regular-Duty or Heavy-Duty
    • Laminate finish available
    • Load capacity is 500 lbs per shelf; not to exceed capacity of section as described in “General Information” section
    Part Number: (OPT)RF(TYPE)-(NW)(ND)
    • OPT......SUS=Upper Shelf SBS=Base Shelf STPS=Three Position "Straight in" Insertion
    • RF......Radius Front
    • TYPE......Blank=Regular-Duty HD=Heavy-Duty
    • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
    • ND......Nominal Depth 12" to 30" in 2" increments (305 mm to 787 mm in 51 mm increments)
    (OPT)RF(TYPE)-(NW)(ND)-Standard Upper & Base Shelf with Radius Front
