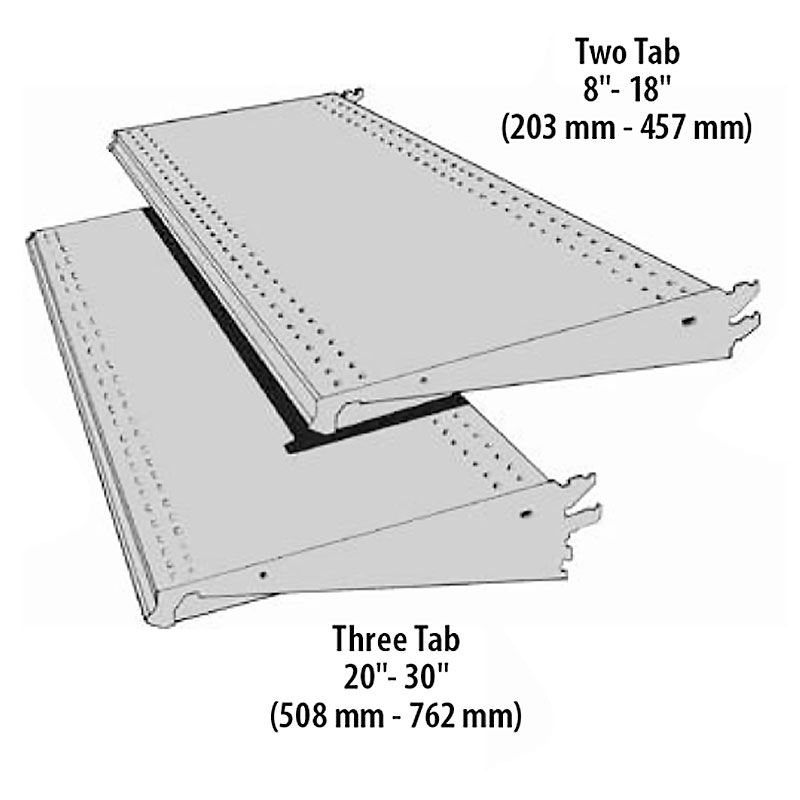

Standard Upper Shelf Flat, 15˚ or 30˚ Downslope (STP)

1^1/4″ (32 mm) tag molding integrally formed into front edge of shelf surface

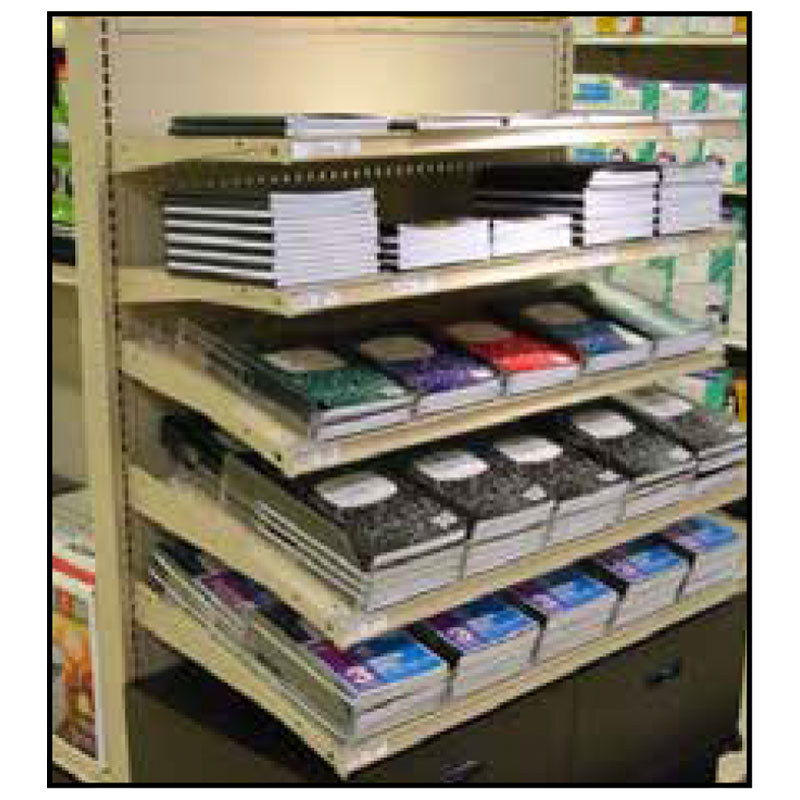

Versatility of three positions: Flat, 15˚downslope, or 30˚ downslope
Load capacity, flat position: ° 6″ (152 mm) to 8″ (203 mm) depths = 300 lbs ° 10″ (254 mm) to 24″ (610 mm) depths = 500 lbs ° 26″ (660 mm) to 30″ (762 mm) depths = 400 lbs
Load capacity, 15˚ downslope position: ° 6″ (152 mm) to 24″ (610 mm) depths = 250 lbs ° 26″ (660 mm) to 30″ (762 mm) depths = 200 lbs
Load capacity, 30˚ downslope: All shelf depths reduced to 100 lbs
Load capacities based on evenly distributed static loading
SUS and STP shelves do not align when placed side by side

NOTE! If add-on aluminum tag molding is desired, use selected type as suffix immediately after part number. Example: SUS-416-M17S. ee tag molding selection pages.

NOTE! Load capacity for 2′ (610 mm) wide shelves in depths 06″ to 18″ (152 mm to 457 mm) is 50% of 4′ (1219 mm) wide shelves.
