Suspended Maxi in Wide Span

  • Suspended Maxi in Wide Span

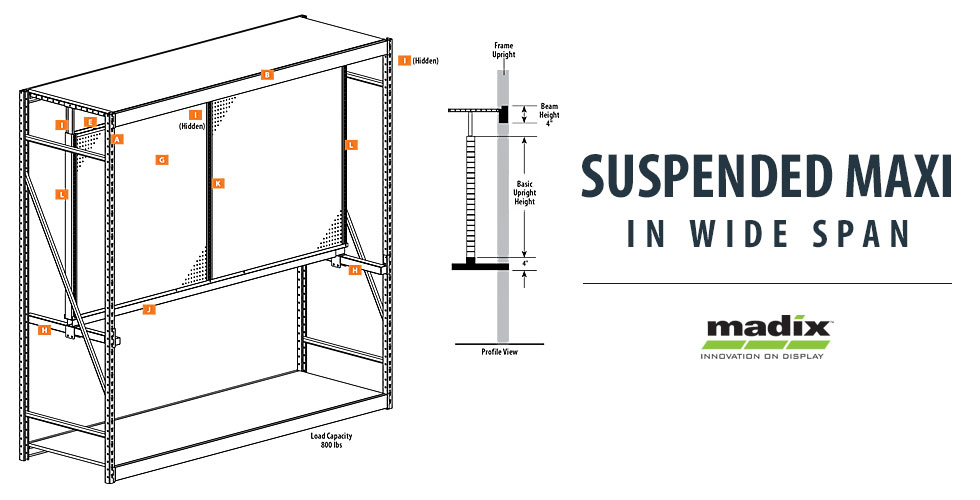

    Designed to merchandise pegged or shelved products in a Wide Span section while keeping the decks beneath clear for display of larger products. May be used in any section height greater than 72" and with all beam lengths. The system is depth adjustable and accepts Maxi Line accessories.

      All parts standard finishes: Sahara or Blue Gray

      Order the required number of backs for designated units; order separately Hardboard BXH-(NW)(NH) or Pegboard BXP-(NW)(NH).
    • Suspended Maxi in Wide Span

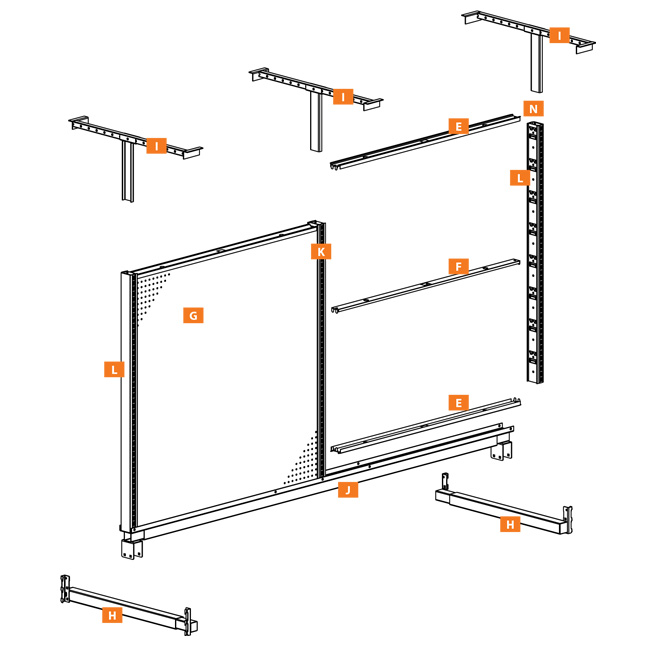

      Part Description Part Number QTY
      A Wide Span Frames (TYPE)WSF(ND)(NH) As Required
      B Wide Span Beams (TYPE)WSFB(NL) 2
      C* Wide Span Deck Supports (TYPE)WSDS(ND) As Required
      D* Wide Span Decks Various Decks to choose from As Required
      E Top Spanner STL-(NW) 4
      F* Center Spanner SC-(NW) 2
      G Extension Back Panels, pegboard or hardboard BX(TYPE)-(NW)(NH) 4
      H Basic Upright Support, frame depth PRBUNDS-(ND) 1 Pair
      I Basic Upright Support Bracket, Modified Omega WSUSB-(ND) 3
      J Basic Upright Support, beam length PRBUNWS-(NL) 1
      K Suspended Maxi Basic Upright PRBU-(NH) 1
      L Suspended Maxi Basic Upright, flush side PRFSBU-(NH) 2
      M* STL Clip STLCLIP 1 pair

      *Not shown

    • Components for Suspended Maxi in Wide Span

      Reveal/Hide Components

      E Top Spanner

      • STL Clips installed with Top Spanners
      Part Number: STL-(NW)
      • STL.....Top Spanner
      • NW.....Nominal Width 3' or 4' (914 mm or 1219 mm)
      No Image Available

      F Center Spanner

        Part Number: SC-(NW)
        • SC.....Center Spanner
        • NW.....Nominal Width 3' or 4' (914 mm or 1219 mm)
        SC-(NW)-Center Spanner

        G Extension Back

          Part Number: BX(TYPE)-(NW)(NH)
          • BX.....Extension Back
          • TYPE.....P=Pegboard, H=Hardboard
          • NW.....Nominal Width 3' or 4' (914 mm or 1219 mm)
          • NH.....Nominal Extension Height 6" to 54" in 6" increments (152 mm to 1372 mm in 15.24 increments)
          No Image Available

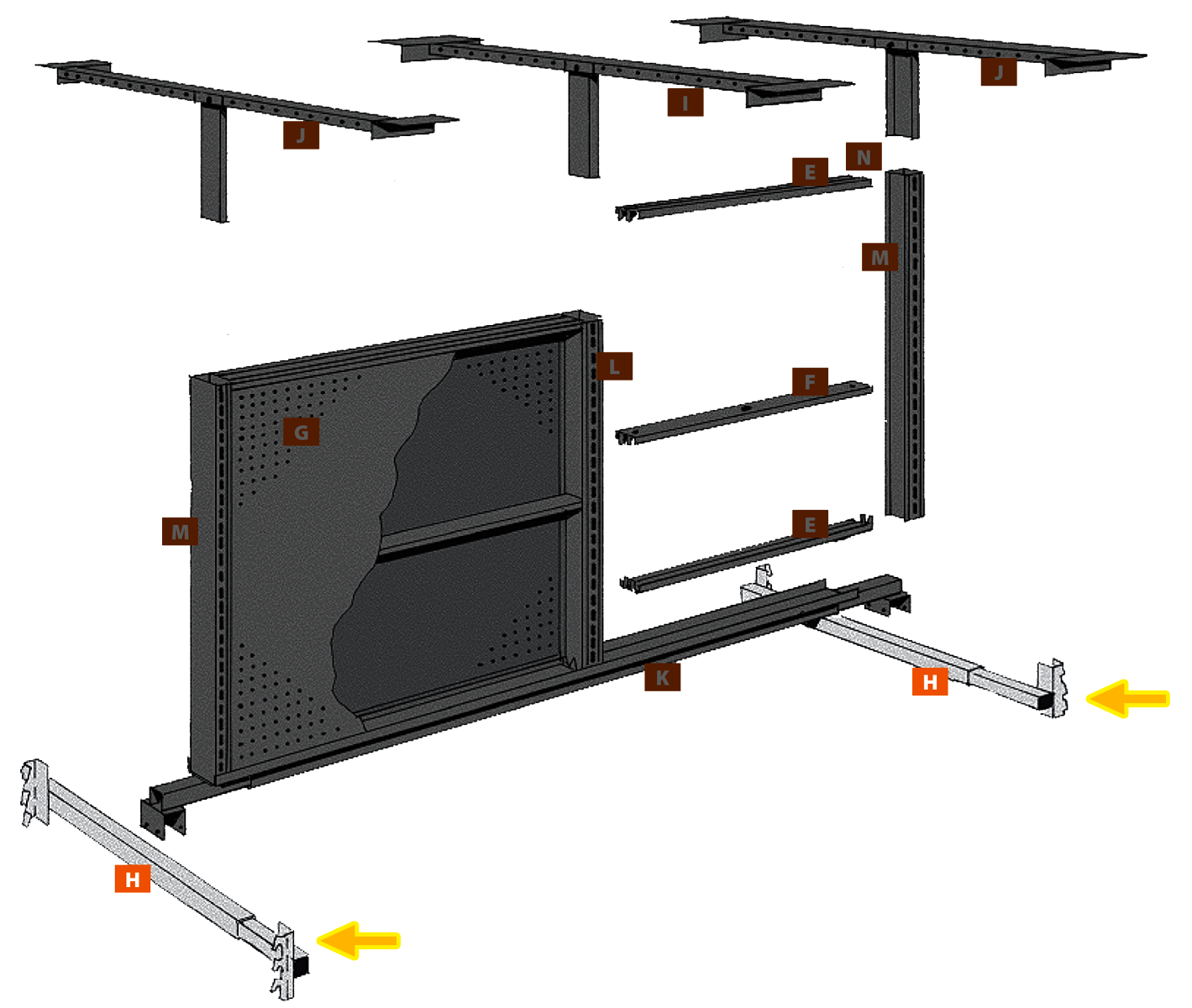

          H Pallet Rack Basic Upright Supports

          • Pairs
          Part Number: PRBUNDS-(ND)
          • PRBUNDS.....Pallet Rack Basic Upright Supports
          • ND.....Nominal Depth 36" or 48" (914 mm or 1219 mm)
          • • Pairs
          PRBUNDS-(ND)-Pallet Rack Basic Upright Supports

          I Wide Span Upright Support Bracket Offset

            Part Number: WSUSBO-(ND)
            • WSUSBO.....Wide Span Upright Support Bracket Offset
            • ND.....Nominal Depth 24", 30", 36", 42", 48" (610 mm, 762 mm, 914 mm, 1067 mm, 1219 mm)
            WSUSBO-(ND)-Wide Span Upright Support Bracket Offset

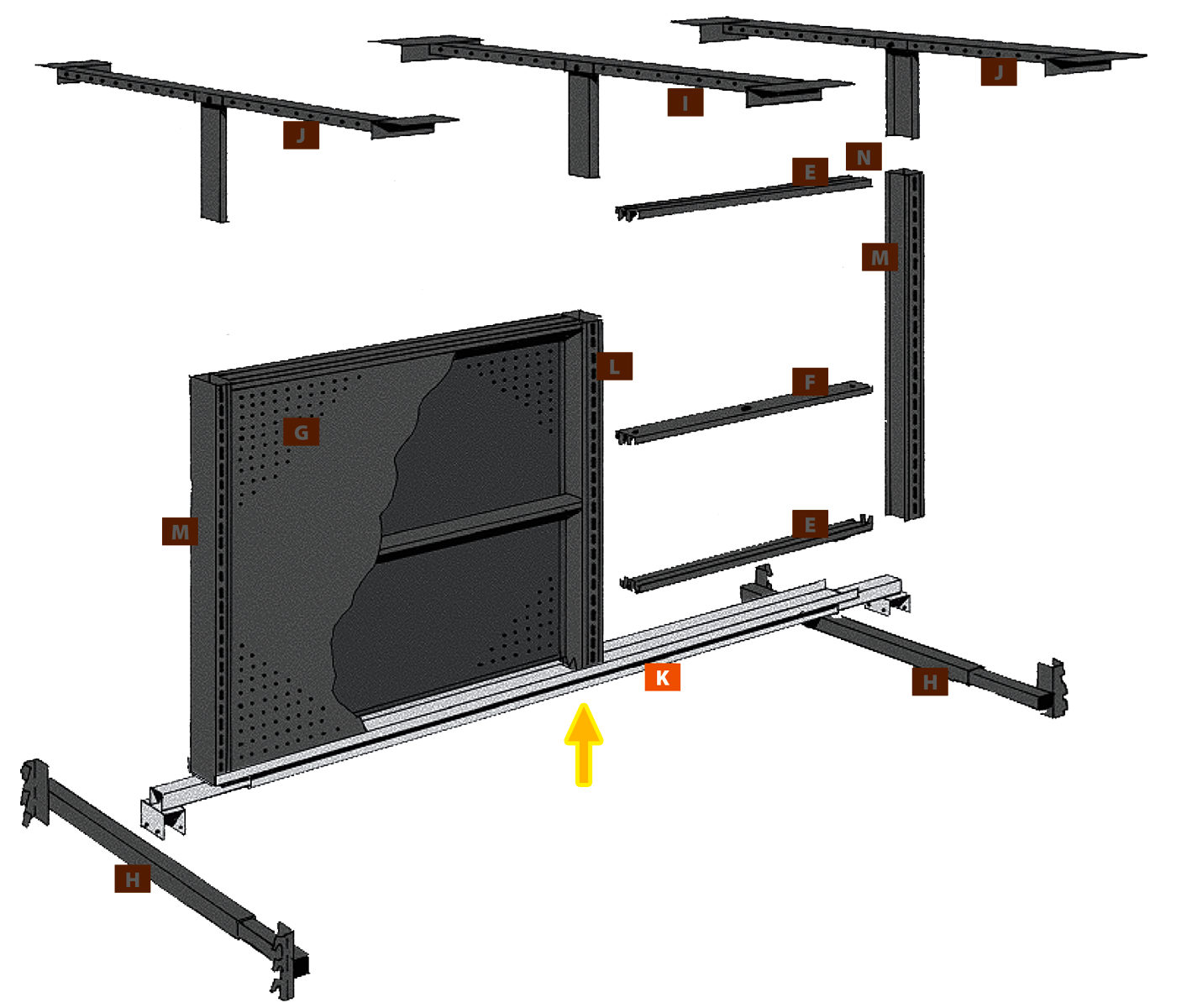

            J Pallet Rack Basic Upright Supports— Beam Length

              Part Number: PRBUNWS-(NL)
              • PRBUNWS....Pallet Rack Basic Upright Supports–Beam Length
              • NL.....Nominal Length 48", 72", or 96" (1219 mm, 1829 mm, or 2438 mm)
              PRBUNWS-(NL)-Pallet Rack Basic Upright Supports— Beam Length

              K Pallet Rack Basic Upright

                Part Number: PRBU-(NH)
                • PRBU.....Pallet Rack Basic Upright
                • NH.....Nominal Height 24", 30", or 36" (610 mm, 762 mm, or 914 mm)
                PRBU-(NH)-Pallet Rack Basic Upright

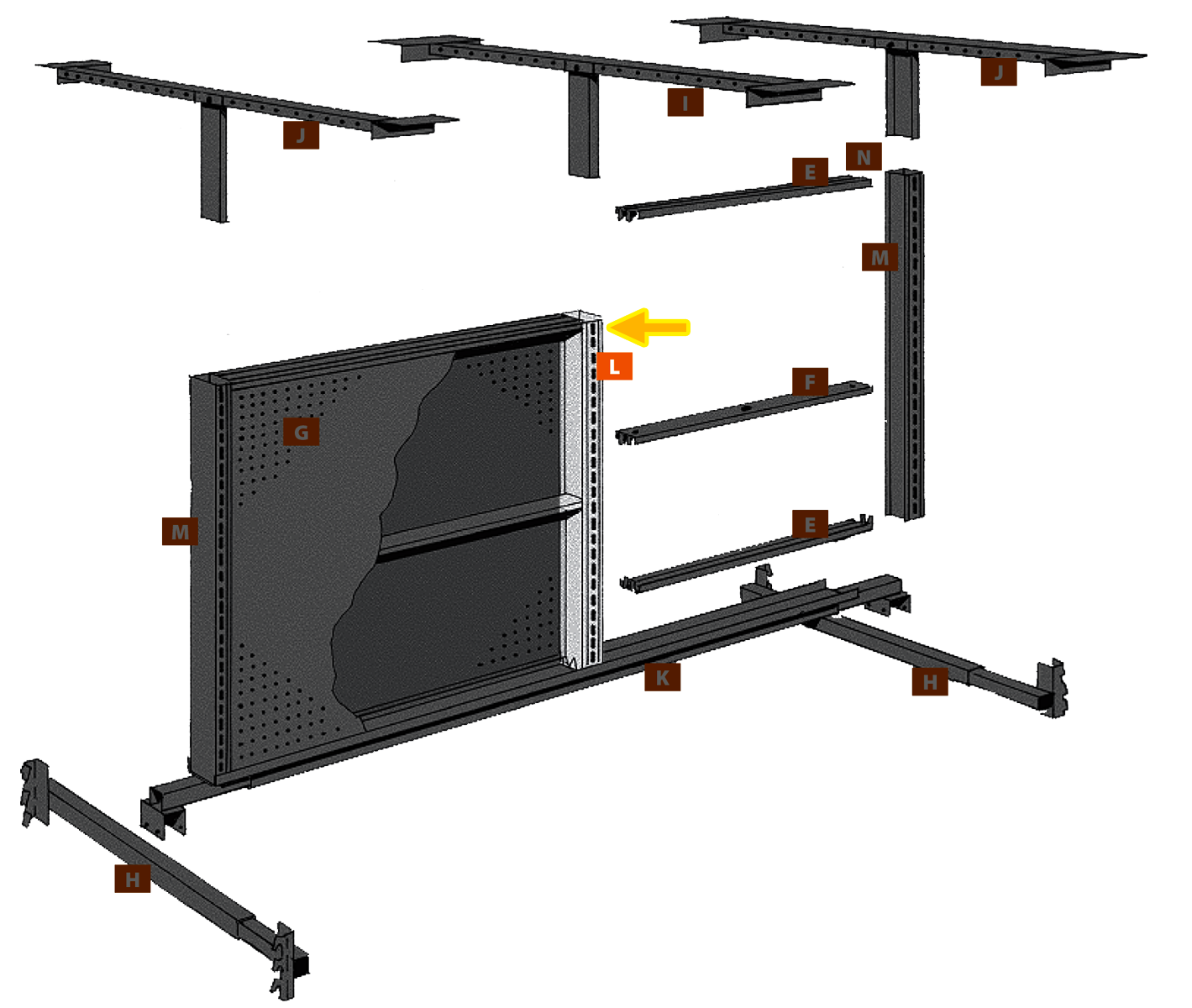

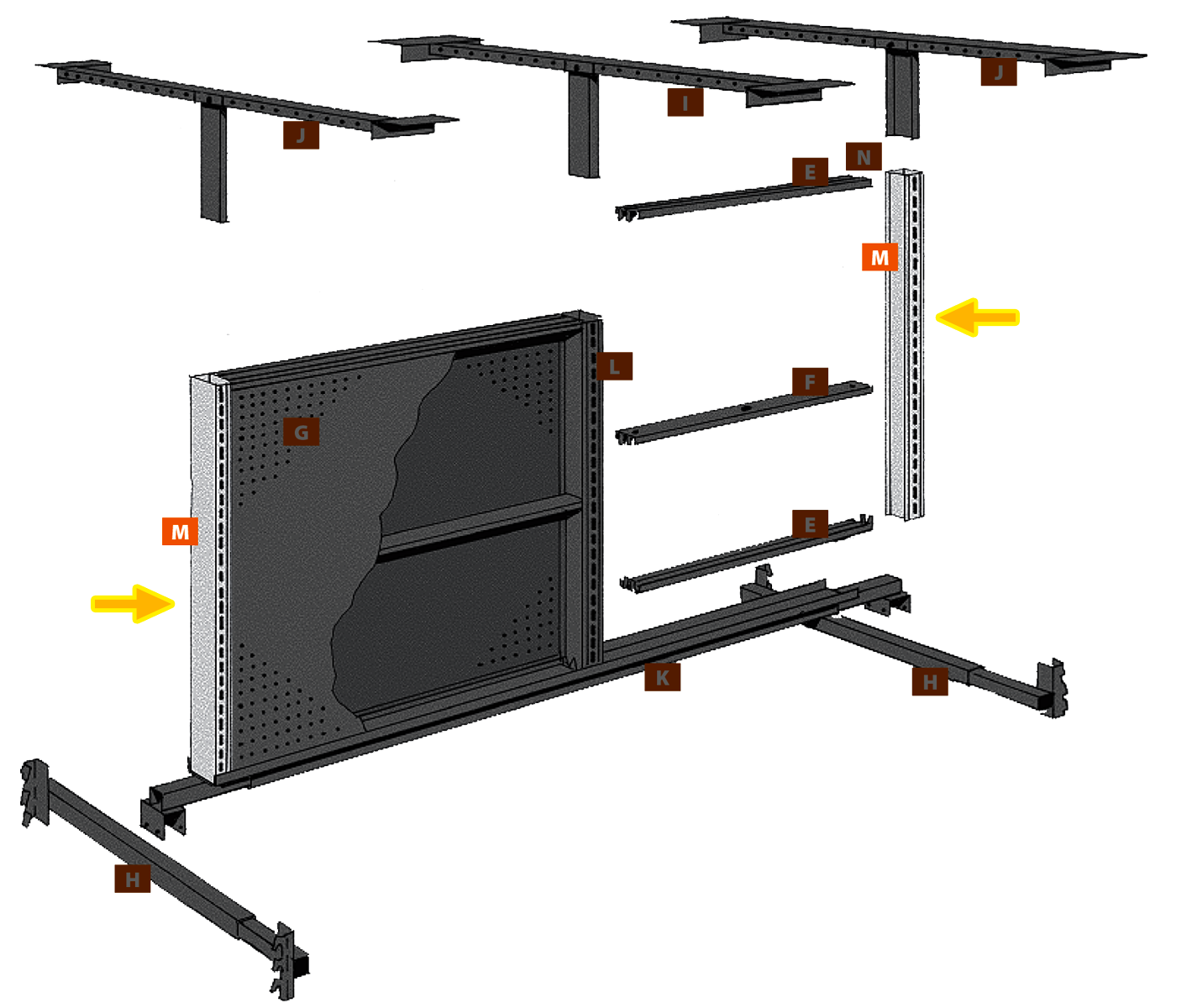

                L Pallet Rack Basic Upright— Flush Side

                  Part Number: PRFSBU-(NH)
                  • PRFSBU.....Pallet Rack Basic Upright– Flush Side
                  • NH.....Nominal Height 24", 30", or 36" (610 mm, 762 mm, or 914 mm)
                  PRFSBU-(NH)-Pallet Rack Basic Upright— Flush Side

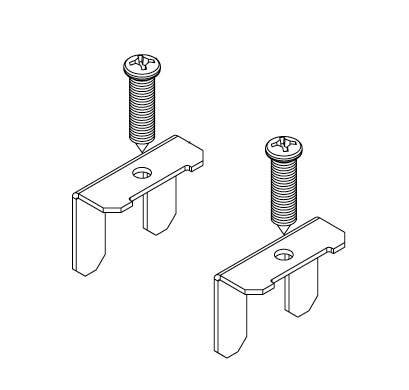

                  M* STL Clip

                    Part Number: STLCLIP
                    • STLCLIP... STL Clip
                    STLCLIP-STL Clip
