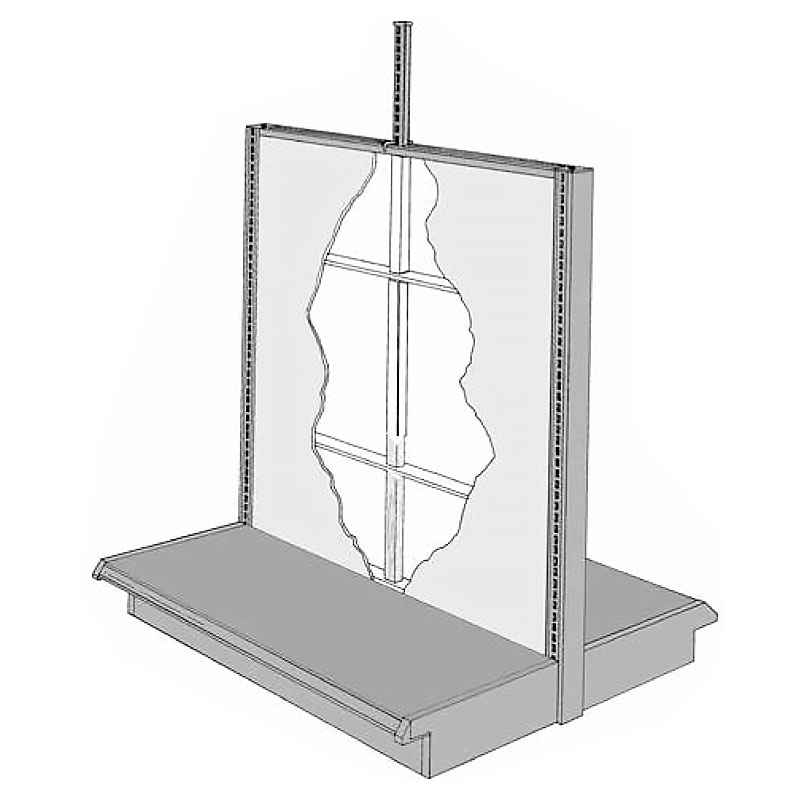

Telescoping Upright Kit
- Slotted Upright fits between backs and extends up to 18″ (457 mm) above the fixture when needed
- Kit consists of a 42″ (1067 mm) Upright, slotted 18″ (457 mm) from the top, with bottom 24″ (610 mm) not slotted; kit also includes one Vertical Height Stiffener, one Center Spanner, and a locking pin
- Upright should not extend more than 18″ (457 mm) above the fixture
- Upright accepts only two-tab shelves, 8″ to 18″ (203 mm to 457 mm)
- To be used with up to 72″ (1829 mm) tall Uprights; for sections higher than 72″ (1829 mm), contact your Madix representative
- Capacity of each section made is 50 lbs evenly distributed static load for a total of 100 lbs if both sides are loaded. Please note this is not per shelf, but per side
