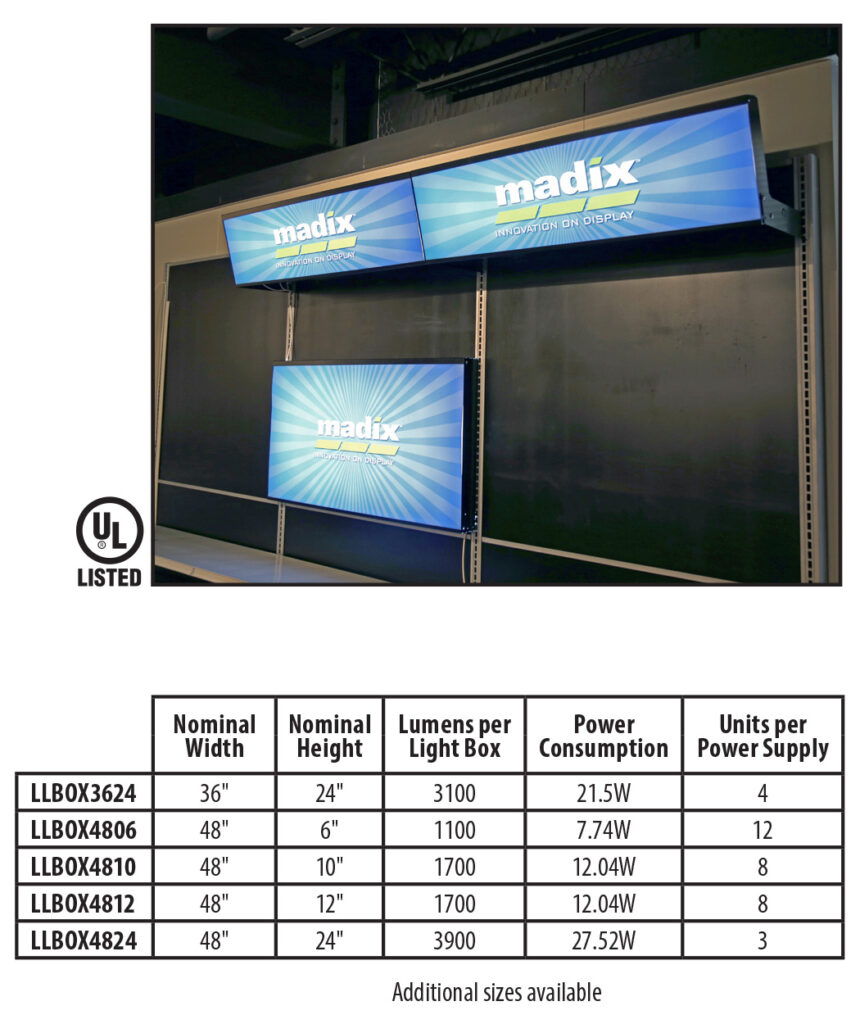

LEDge Light Box
- Seamless integration with all LEDge Light products and accessories

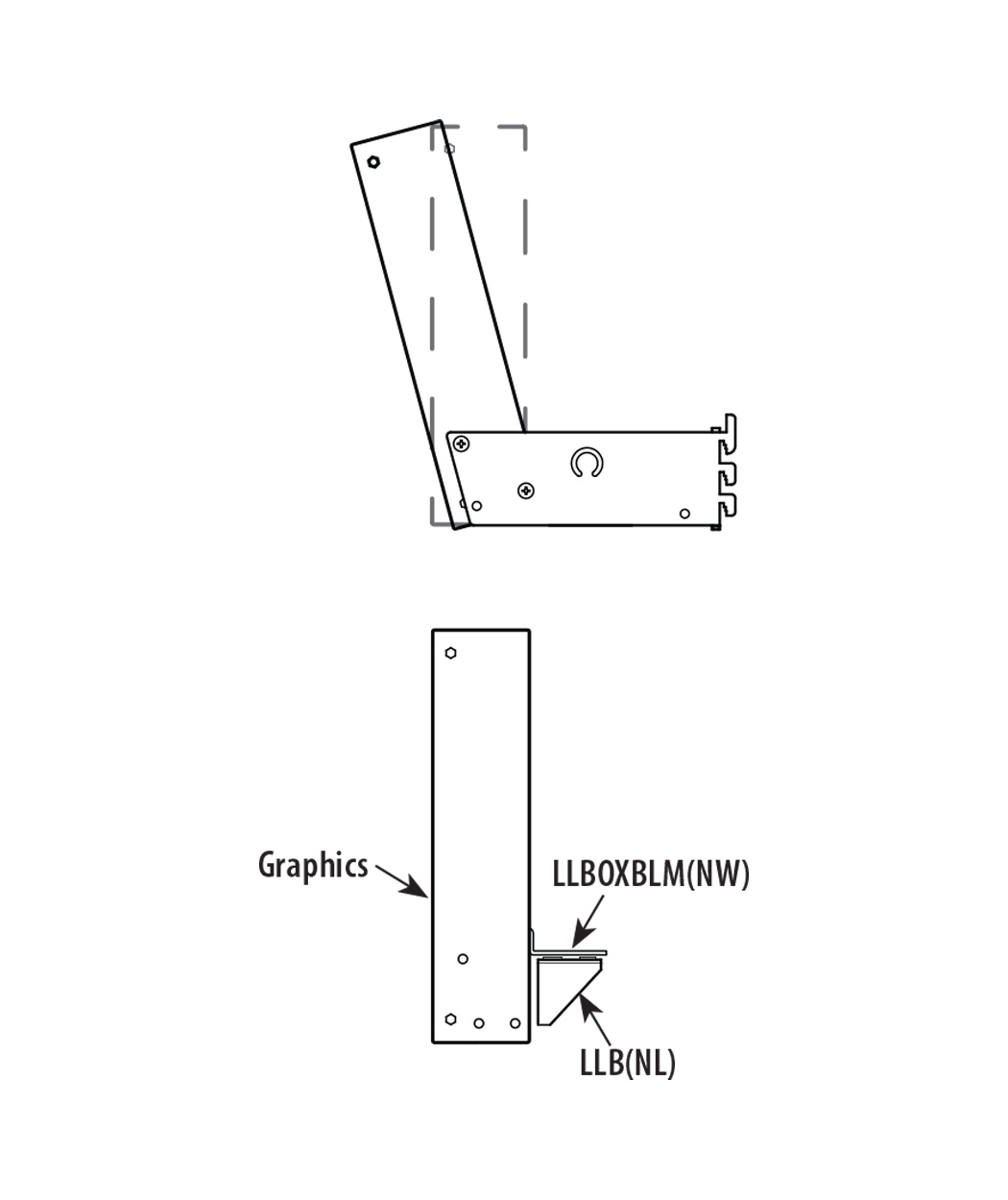

- Light box can be set flush to the face of the gondola, or used as a canopy when mounted on brackets
- Can be daisy-chained to a single power supply
- Plug ’n play connections– no electrician required (Class 2 system)
- Ability to change graphics in seconds
- Over 400 lumens per square foot of signage
- Less than 4 watts of power consumption per square foot of signage
- 7 year warranty
- UL listed
- True photographic/duratrans film may be used in front of panels to create illuminated signage (8 mil recommended)
- Size for graphics: Nominal Height x Nominal Width – .188″ (5 mm) Example: 12″ x 47.812″ (305 mm x 1214 mm)
- Set viewable area of graphics with recommended 1″ (25 mm) padding to avoid top and bottom lip of the light box
- Graphics not provided by Madix
