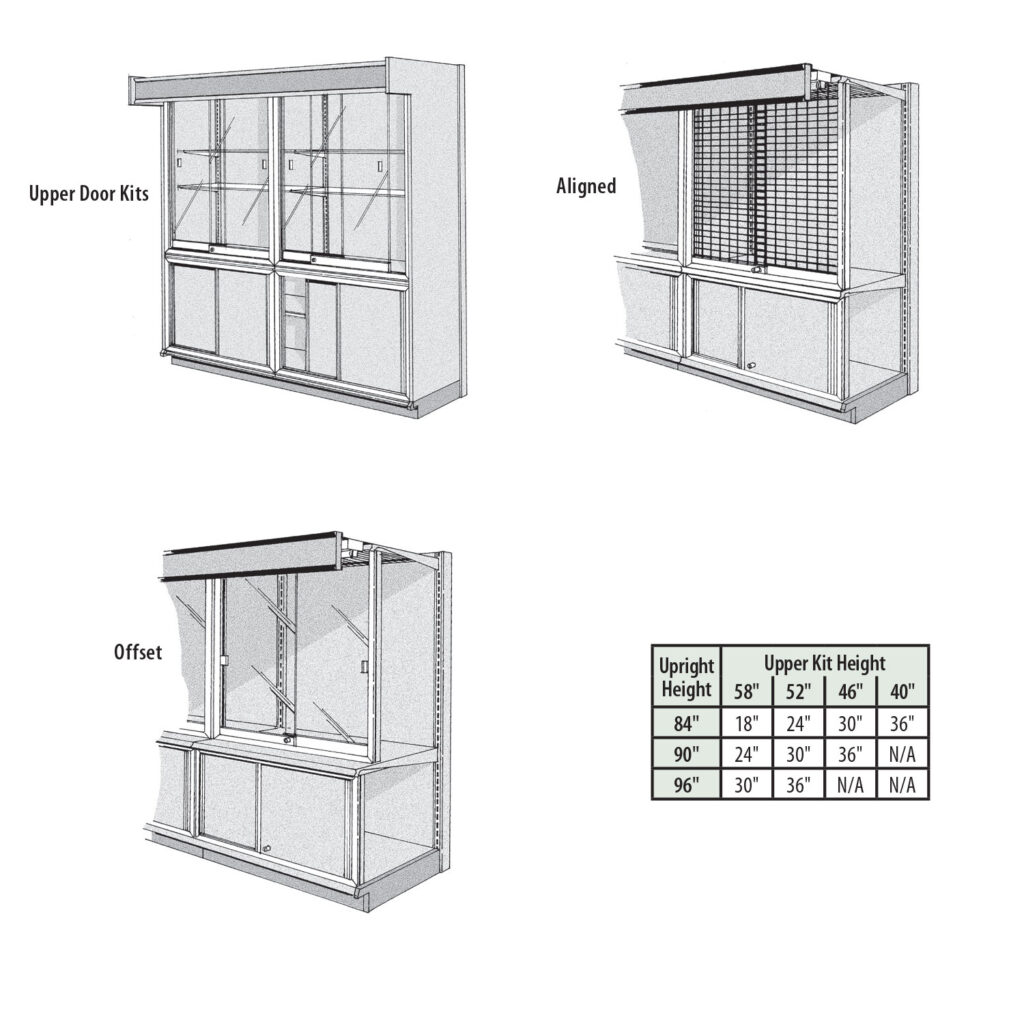

Combination Upper Door Kits
- Ideal for creating secure displays or closed storage in shelving run
- Frames are satin-anodized aluminum
- Upper doors are clear glass (tempered optional); includes roller-glide bottom track with locking option
- Wire kits have .188 diameter wire, 3″ (76 mm) OC vertically welded to .117 diameter wire, 2″ (51 mm) OC horizontally
- Canopy End Panels (or SDKEP panels) close off the open ends
- Shelves used inside SDK should be at least 4″ (102 mm) less in depth than exterior face of SDK in order to clear frame extrusion
- Top of door kit always secures under front edge of intermediate or canopy shelf
- Combinations work only with canopy projections (see Canopy System), using Standard Upper Shelves or CTS countertops as intermediate shelf
- Standard colors: Sahara for hardboard or PC008 Powder Chrome for wire
