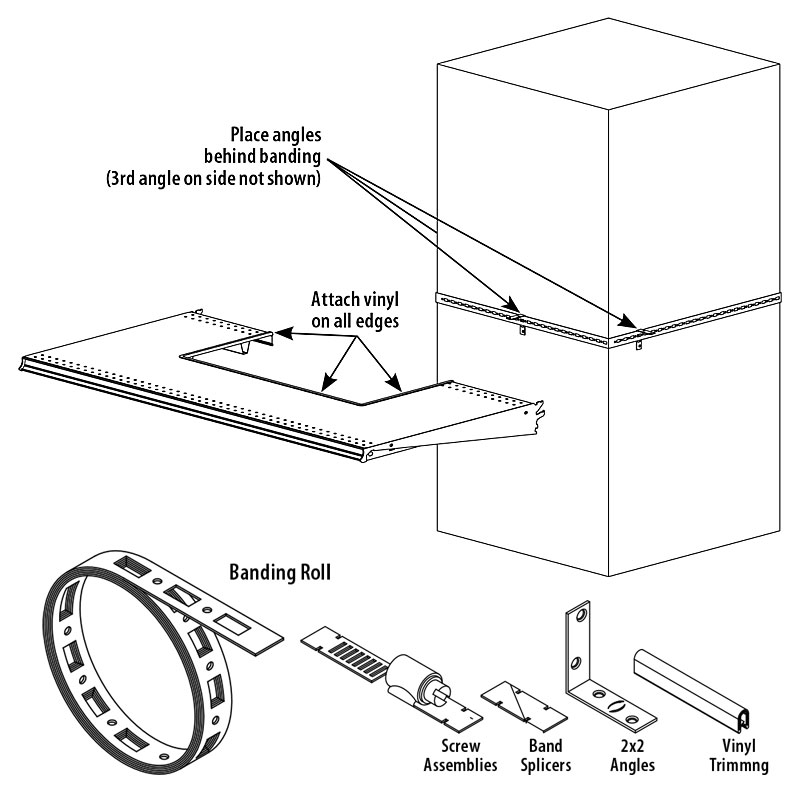

- Column Support Kit contains: ° 50′ (15,240 mm) of banding roll ° Screw assemblies (qty 10) ° Band splicers (qty 5) ° 2″x2″ (51 mm x 51mm) angles (qty 30) ° 30′ (9144 mm) of vinyl trimming
- Assemble as follows: ° Loop banding around column at desired height; secure and tighten using 2″ x 2″ (51 mm x 51 mm) angles ° Cut a notch in shelving as needed, lining all edges of the notch with vinyl trimming ° Install shelving on top of angles and into fixtures
- Column size and location will affect the number of shelves each kit can support (estimated 10 shelves per kit)
NOTE! Madix makes no claim regarding the capacity of a field-modified shelf and cannot be held liable in the event of field-modified shelf failure.
