    Madix's all-new Luxe displays help retailers create an upscale environment, while maintaining the simplicity of installation that customers have grown to love. Clean lines and versatile slotting allow retailers to upgrade their fixtures, but still utilize Maxi Line accessories.

    • Utilizes thousands of Maxi Line accessories, including shelves, hang rods, and waterfall displays
    • Fashionable alternative to custom fixtures
    • Versatile pieces can be combined to form several different displays, including tables, freestanding units, and wall anchored gondolas.

  • Gallery

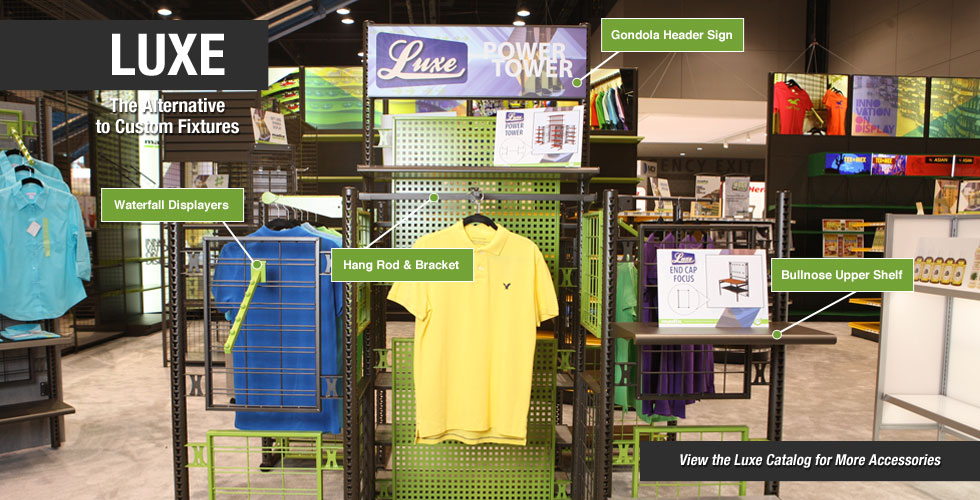

  • Power Tower Concept with Luxe
  • End Cap Focus Concept with Luxe
  • Store Within a Store Concept with Luxe

A Fashionable Alternative to Custom Fixtures

Madix's all-new Luxe displays help retailers create an upscale environment, while maintaining the simplicity of installation that customers have grown to love. Clean lines and versatile slotting allow retailers to upgrade their fixtures, but still utilize Maxi Line accessories.

  • Utilizes thousands of Maxi Line accessories, including shelves, hang rods, and waterfall displays
  • Fashionable alternative to custom fixtures
  • Versatile pieces can be combined to form several different displays, including tables, freestanding units, and wall anchored gondolas.
  • Luxe is now featured in the DDi Project Gallery for GlobalShop 2012

  • Components for Luxe

    Reveal/Hide Components

    Luxe T-Uprights with Leg on Both Sides

    • T-Upright with center slotted upright and 2 legs which is used for 2-sided merchandising application or where stability is required
    • Slotted 1" (25 mm) OC on 4 sides to produce a wide array of fixture configurations
    • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System
    • Optional Caster to be used on: T-Uprights Wall Outriggers Upright Only, when used as a Table or other stable configurations.
    Part Number: LUXT-(NH)(NDL)(NDR)(OPT)
    • LUXT......Luxe T-Upright
    • NH......Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
    • NDL......Nominal Depth Left 12"to 24" in 2" increments (305 mm to 610 mm 51mm increments)
    • NDR......Nominal Depth Right 12" to 24" in 2" increments (305 mm to 610 mm 51 mm increments)
    LUXT-(NH)(NDL)(NDR)(OPT)-Luxe T-Uprights with Leg on Both Sides
    DO NOT use casters on L- Uprights unless it is supported on the rear by another Luxe fixture. Contact Sales Consultant regarding application

    Luxe L-Uprights with Leg on One Side

    • L-Upright with center slotted upright and 1 leg which is used for 1-sided merchandising applications
    • Slotted 1" (25 mm) OC on 4 sides to produce a wide array of fixture configurations
    • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System
    Part Number: LUXL-(NH)(ND)
    • LUXL......Luxe L-Upright
    • NH......Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
    • NDL......Nominal Depth Left 12" to 24" in 2" increments (305 mm to 610 mm 51 mm increments)
    LUXL-(NH)(ND)-Luxe L-Uprights with Leg on One Side

    Luxe Wall Outrigger

    • Luxe upright without legs used for perimeter merchandising applications
    • Mounted off the perimeter wall by 3", 6", 12", or 18" (76 mm, 152 mm, 305 mm, or 457 mm)
    • All standard Maxi Line and Tube Line accessories work with Luxe Merchandising System
    Part Number: LUWO-(NH)(NDL)
    • LUWO......Luxe Wall Outrigger
    • NH......Nominal Height 60" to 120" in 6" increments (1524 mm to 3048 mm in 152 mm increments)
    • NDL......Nominal Depth Left 3", 6", 12", 18" (76 mm, 152 mm, 305 mm, 457 mm)
    LUWO-(NH)(NDL)-Luxe Wall Outrigger

    Luxe Wall Outrigger Upright Only

    • Luxe Outrigger upright only
    • Use for tables, benches, and 4-post square configuration
    • Nominal Height 24"-120" in 6" increments (610 mm to 3048 mm in 152 mm increments)
    Part Number: LUWP-(NH) (OPT)
    • LUWP......Luxe Wall Outrigger Post Only
    • NH......Nominal Height 24" to 120" in 6" increments (610 mm to 3048 mm in 152 mm increments)
    • OPT......Blank= Leveler C= Casters
    LUWP-(NH) (OPT)-Luxe Wall Outrigger Upright Only

    Luxe Tie Bar

    • Use Tie Bar when no backs are being used to stabilize aisles and walls
    • Minimum of two required per section
    Part Number: LUXTB-(NW)
    • LUXTB......Luxe Tie Bar
    • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 mm increments)
    LUXTB-(NW)-Luxe Tie Bar

    Luxe End Frame Panel System

    • Freestanding End Frame System which uses a two Luxe Posts and an End Frame Panel which attaches to T-Upright behind Luxe End Panel Kit
    • Includes: 2 - Luxe Uprights LUXP(NH) 1 - Luxe End Frame Panel LUXEFP(NH)(NW)
    Part Number: LUEFP(TYPE)(NH)(NW)
    • LUEFP......Luxe End Frame Panel System
    • TYPE......MSP=Metal Square Perforated MPG=Multi-Grid HG=Harmonic Grid WG=3"x3" Wire Grid (76 mm x 76 mm)
    • NH......Nominal Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
    • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 increments)
    LUEFP(TYPE)(NH)(NW)-Luxe End Frame Panel System

    Luxe Back Panels

      Part Number: LUXB(TYPE)(NH)(NW)
      • LUXB......Luxe Back Panels
      • TYPE......HG=Harmonic Grid MSP=Metal Square Perforated WG=3"x3" Wire Grid (76 mm x 76 mm) MPG=Multi-Grid
      • NH......Nominal Height 24", 30", 36", 42", 48" (610 mm, 762 mm, 914 mm, 1067 mm, 1219 mm)
      • NW......Nominal Width 18" to 48" in 6" increments (457 mm to 1219 mm in 152 increments)
      LUXB(TYPE)(NH)(NW)-Luxe Back Panels

    • Accessories for Luxe

      Reveal/Hide Accessories
      Luxe Accessories

      Flush Front Upper Shelf

      • Smooth, dust-free edge ideal for merchandising without tag molding
      • Versatility of three positions: Flat, 15˚downslope, 30˚ downslope
      • Non-perforated available
      Part Number: FFUS-(NW)(ND)
      • FFUS......Flush Front Upper Shelf
      • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
      • ND......Nominal Depth 12" to 30" in 2" increments (305 mm to 762 mm in 51 mm increments)
      FFUS-(NW)(ND)-Flush Front Upper Shelf

      Bullnose Upper Shelf

      • Same form, fit, and function of Standard Upper Shelf, allowing the use of front fence and dividers
      • Fits 1" OC slotting (25 mm)
      • Radius front measures 11/4" (32 mm) high
      • Available in variety of finishes
      • Non-perforated available
      Part Number: SUSBN(NW)(ND)(NP)
      • S......Standard
      • U......Upper
      • S......Shelf
      • BN......Bullnose
      • NW......Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
      • ND......Nominal Depth 12" to 30" in 2" increments (305 mm to 762 mm in 51 mm increments)
      • NP......Non-Perforated
      SUSBN(NW)(ND)(NP)-Bullnose Upper Shelf

      Thin Profile Shelf, Light-Duty

      • Madix’s thinnest profile shelf
      • Slimness of shelf allows additional row of shelves
      • Angled tag molding creates attractive pricing display
      • No pushers required to display merchandise
      • Ideal for tightly-spaced and lightweight merchandise
      Part Number: PLSTTSLD(NW)(ND)
      • PLSTTS......Thin Profile Shelf
      • LD......Light-Duty
      • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
      • ND......Nominal Depth 10" to 20" in 2" increments (254 mm to 610 mm in 51 mm increments)
      PLSTTSLD(NW)(ND)-Thin Profile Shelf, Light-Duty

      Standard Upper with Multi Radius Concave Front

      • Draws customers’ attention to merchandise
      • Gradual inward curve 2" or 3" (51 mm or 76 mm) less than depth of brackets at curved vertex
      • Standard DGA2 Tag Molding built into each shelf available in satin, gold, or customer’s choice of finish
      • Patented
      Part Number: SUSMRFC(NW)(ND)-(ID)
      • SUS......Standard Upper Shelf
      • MRFC......Multi Radius Concave Front
      • NW......Nominal Width 24", 36" or 48" (610 mm, 914 mm or 1219 mm)
      • ND......Nominal Depth 10" to 24" in 2" increments (254 mm to 610 mm in 51 mm increments)
      • ID......Inversion Depth 2" or 3" (51 mm or 76 mm)
      SUSMRFC(NW)(ND)-(ID)-Standard Upper with Multi Radius Concave Front

      Standard Upper Shelf with Radius Front

      • Gradual outward curve 6" (152 mm) greater than depth of brackets at curve vertex
      • Available in Regular-Duty or Heavy-Duty
      • Laminate finish available
      Part Number: SUSRF(TYPE)-(NW)(ND)
      • OPT......SUS=Upper Shelf
      • RF......Radius Front
      • TYPE......Blank=Regular-Duty HD=Heavy-Duty
      • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
      • ND......Nominal Depth 12" to 30" in 2" increments (305 mm to 787 mm in 51 mm increments)
      SUSRF(TYPE)-(NW)(ND)-Standard Upper Shelf with Radius Front

      Lumishelf™ Radius LED Shelf Assembly

      • Radius Lumishelf™ Surface and Frame has an overall depth of LSSRA that is the nominal depth plus 6" (152 mm) Example: LSSRA-3614 would have actual depth of 20" (508 mm)
      • Load capacity 100 lbs
      Part Number: LSSRA(NW)(ND)-(OPT)
      • LSSRA......Radius Lumishelf™ Surface with RGSFF Frame Assembly
      • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
      • ND......Nominal Depth 14", 16", or 18" (356 mm, 406 mm or 457 mm)
      • R......Blank= No Reflector R=Optional Reflector
      LSSRA(NW)(ND)-(OPT)-Lumishelf™ Radius LED Shelf Assembly

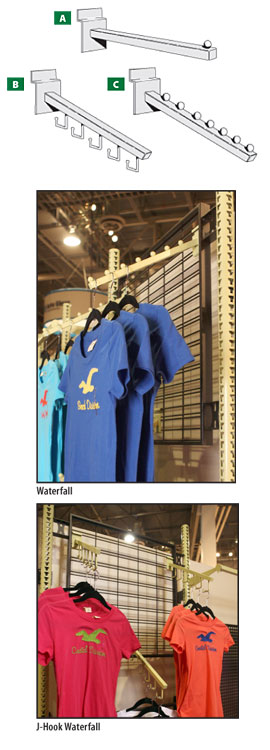

      Waterfall Displayers for Wire Grid

      • One inch square (25 mm x 25 mm) chrome plated tubing
      • A. Straight Arm, projects 12" (305 mm)
      • B. J-Hook Waterfall, projects 16" (406 mm)
      • C. Waterfall, projects 16" (406 mm)
      Part Number: WG(TYPE)
      • WG......Wire Grid
      • (TYPE)......FOS=Straight Arm Displayer FOJ= J-Hook Waterfall Displayer FOW=Waterfall Displayer
      WG(TYPE)-Waterfall Displayers for Wire Grid

      Hang Rod

      • Chrome Plated Standard
      • Painted Available
      Part Number: HR-(NW)
      • HR......Hang Rod
      • NW......Nominal Width 24" to 48" in 6" increments (610 mm to 1219 mm in 152 mm increments)
      HR-(NW)-Hang Rod

      Hang Rod Bracket

      • Painted
      Part Number: HRB-(NW)
      • HR......Hang Rod Bracket
      • ND......Nominal Depth 4" to 30" in 2" increments (102 mm to 762 mm in 51 mm increments)
      HRB-(NW)-Hang Rod Bracket

      Wing Shelf Sign Holder, 3 Position

      • 15°, 30° and 45° angles
      • Customer-supplied signage dimensions– Widths: 36" (914 mm) or 48" (1219 mm) Heights: please refer to chart Thickness: 1/4" (6 mm)
      Part Number: WSSH3P-(NW)(ND)
      • WSSH......Wing Shelf Sign Holder
      • 3P......Three Position
      • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
      • ND......Nominal Depth 12", 18", 24", 30" (305 mm, 457 mm, 610 mm, 762 mm)
      WSSH3P-(NW)(ND)-Wing Shelf Sign Holder, 3 Position

      Gondola Header Sign, Basic Upright Mounted

      • Customer-supplied signage dimensions– 36"W x 24"H = 35.438"W x 23.812"H (914 mm x 610 = 900 mm x 605 mm) 48"W x 24"H = 47.738"W x 23.812"H (1219 mm x 610 = 1213 mm x 605 mm)
      • Thickness: 1/4" (6 mm)
      Part Number: GHSHABUM(NW)(NH)
      • GHSHA......Gondola Header Sign Holder Angled
      • BU......Basic Upright
      • M......Mounted
      • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
      • NH......Nominal Height 24" (610 mm)
      GHSHABUM(NW)(NH)-Gondola Header Sign, Basic Upright Mounted
